7. OPTIONAL ACCESSORIES
7-1. TSU-7 CTCSS UNIT INSTALLATION
Note
Be
sure
to
turn
the
POWER
switch
OFF
before
removing the battery case.
1.

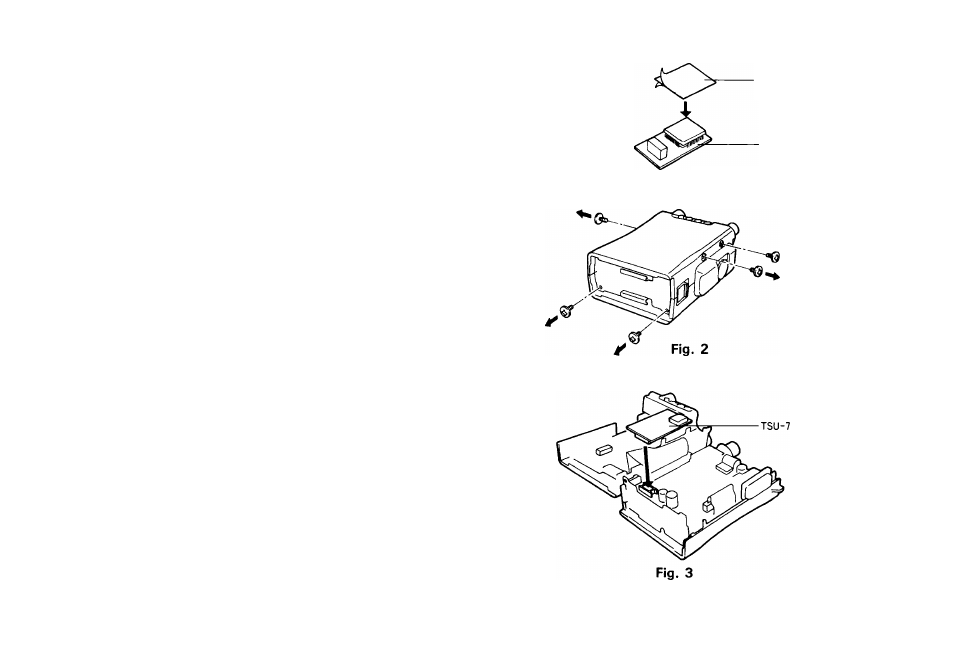

Attach the adhesive sheet supplied with the TSU-7 to
the front (connector side) of the unit. (Fig.1)
2.
Detach the battery case and remove the two screws
on
the
front
panel
which
are
used
to
hold
the
terminal plate on the bottom of the unit. (Fig.2)
3.
Remove the three screws that hold the front panel.
(Fig.2)
4. A flat cable is attached to the inside of the front
panel.
Detach
the
front
panel
paying
attention
to
the wiring. (Fig.3)
5.
Remove the backing paper from the adhesive sheet
attached to the TSU-7 and fit the connector. (Fig.3)
6. Attach the front panel being careful not to pinch the
flat cable.
7. Tighten the three screws on the front panel.
8. Tighten the two screws on the bottom of the unit.
Adhesive sheet
TSU-7
Fig. 1
