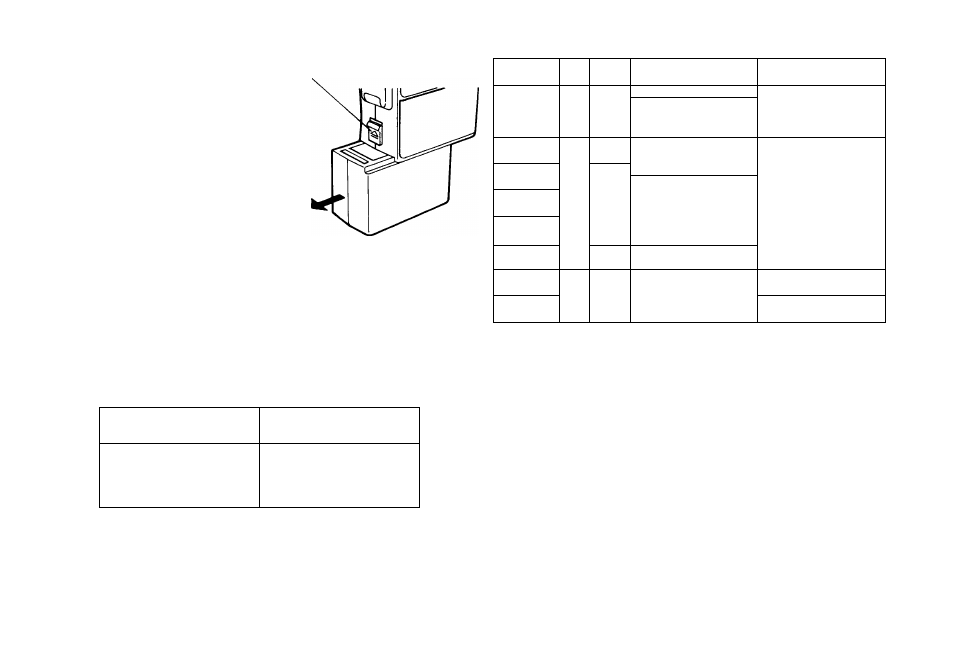

3-4. INSTALLING THE BATTERY PACK
Align the grooves in the bat- Release button
tery pack with the transceiver
and slide the pack to the right
until it locks in place.
To remove the - battery pack
push up on the RELEASE button
and slide the pack to the left.
3-5. BATTERY VOLTAGE LEVEL METER
The S meter indicates the relative battery voltage dur
ing transmit.
Recharge
or
replace
the
batteries
when
the
level
reaches the low indicator.
NiCd Battery Pack
Model
V
mAh
Full charged
Fully discharged
PB-11
6
1200
The ON AIR indicator
will not light.
or
PB-5
7.2
200
PB-6
600
or
PB-9
PB-10
PB-7
1100
PB-8
12
600
■■■■■■■■■III
PB-11
Manganese or Alkaline batteries
New batteries
Need to replace
________________ .-nrir-r-T
Approximate battery condition
