Figure 85, Figure 86 – Kenmore 808353 User Manual
Page 78
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
Cord Reel
^
^

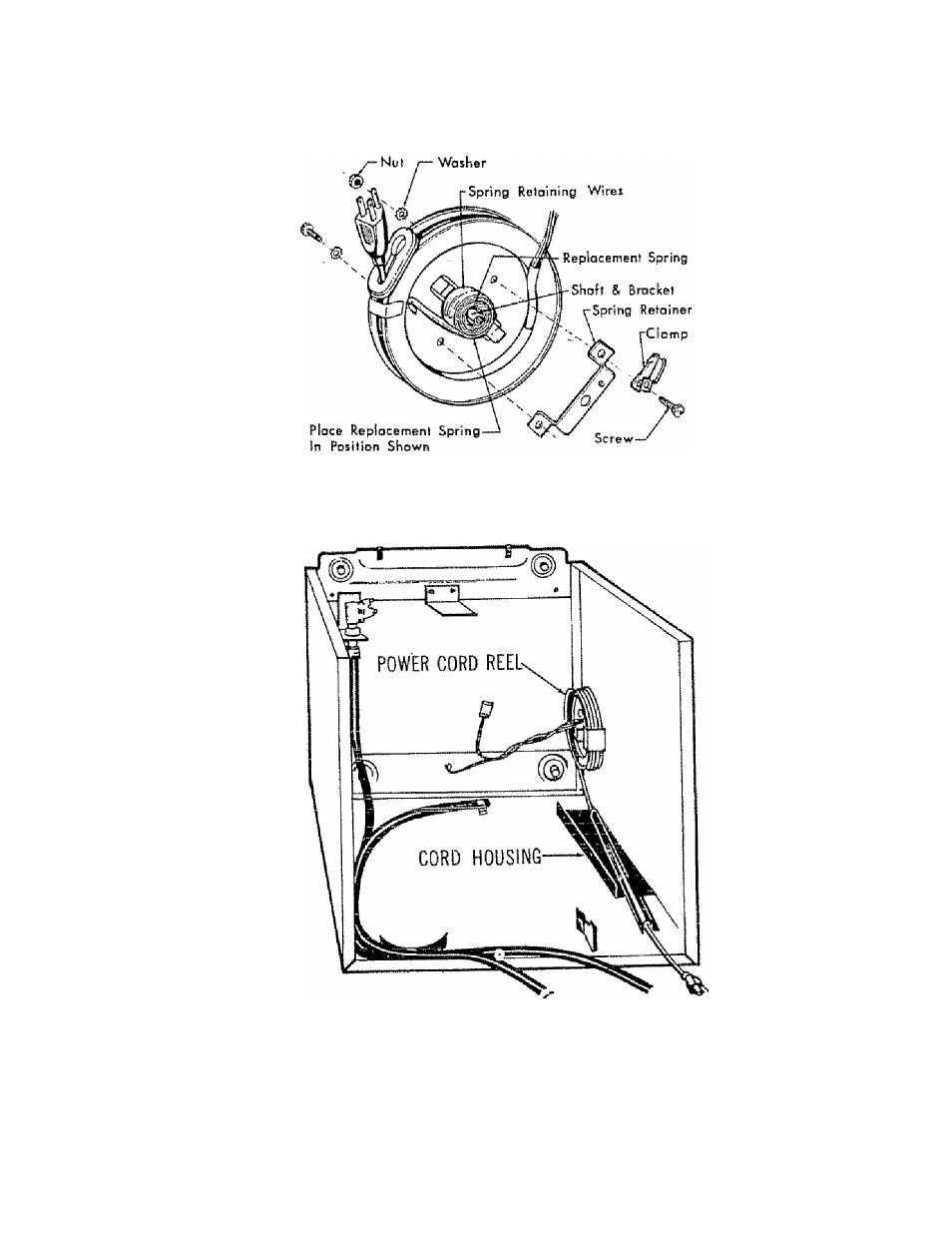

The power cord reel bracket is attached to the side of the cabinet or to the bottom channel. See Figure 85 tor a delaiieo
view of this mechanism.
•
FIGURE 85
Power Cord and/or Reel Replacement for Front Opening Portables
(SOME MODELS)
FIGURE 86
NOTE:
Tub Is Removed Only To Show Location Of Power Cord Reel And Cord Housing.
1
Remove the entire top assembly only and set aside,
2
Remove top screws that secure housing and hose guard to cabinet. See Figure86. Lift both pieces up and out
from between tub and cabinet Allow cord to retract or fall to bottom, Lay dishwasher on its back.
7 5
