1 Connect the meter ieads to liie red motor lead and any white

Timer contacts for the drain phase are BLU-VELLOW to BLU-RED,

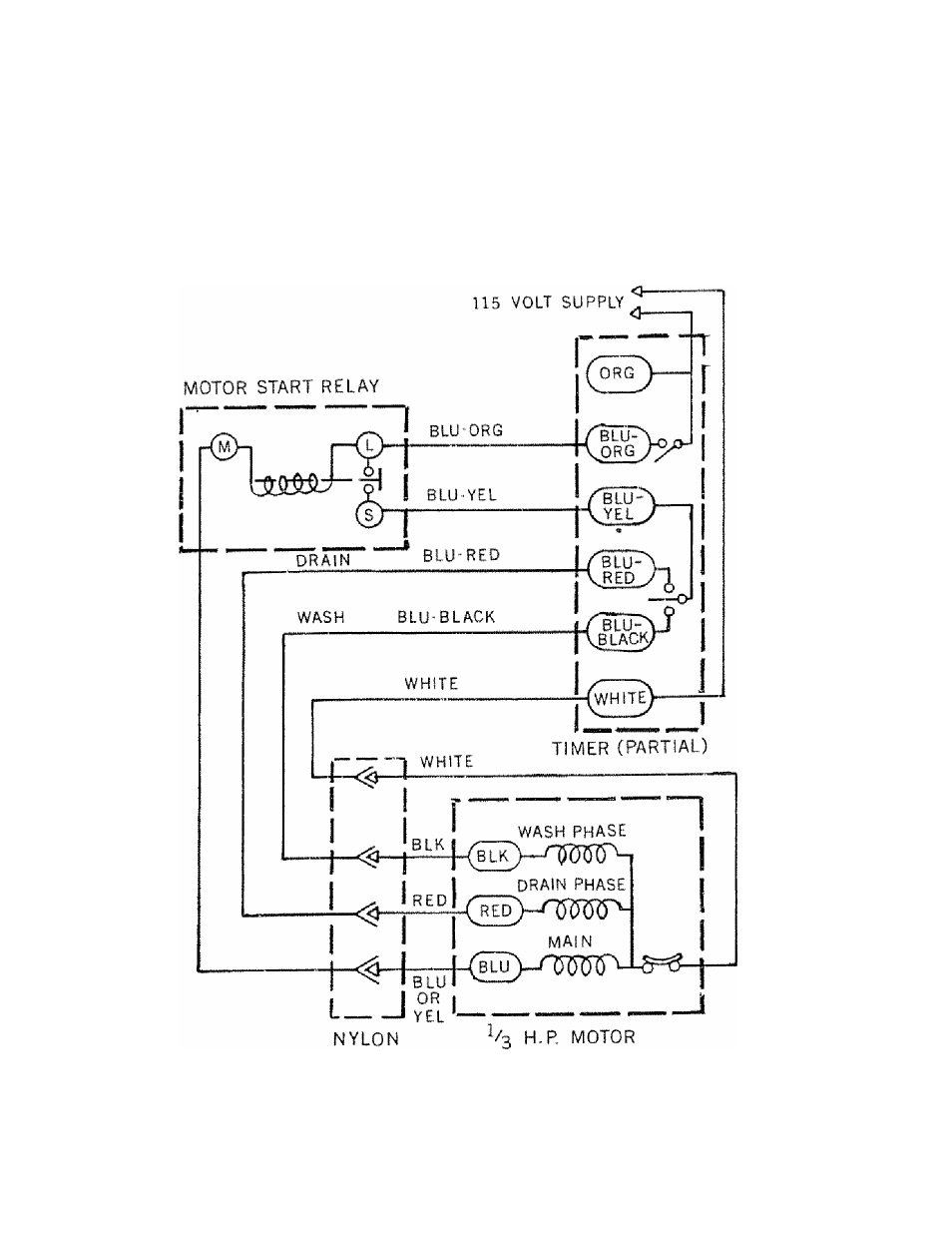

Figure34 is a diagram of the motor cirotii Note that the drain or wash start winding is energized through separate

timer contacts. Therefore, failure of the motor to start in either the drain or wash cycle may be caused by a defective
timer and not a defective motor.

/VOTE

When checking anelectrical circuit, always exercise extreme caution, and refer to the wiring diagram if available.

CONNECTOR

OR CONNECTED DIRECTLY TO TERMINAL
BLOCK OF DISHWASHER

F I G U R E 3 4

3 5
