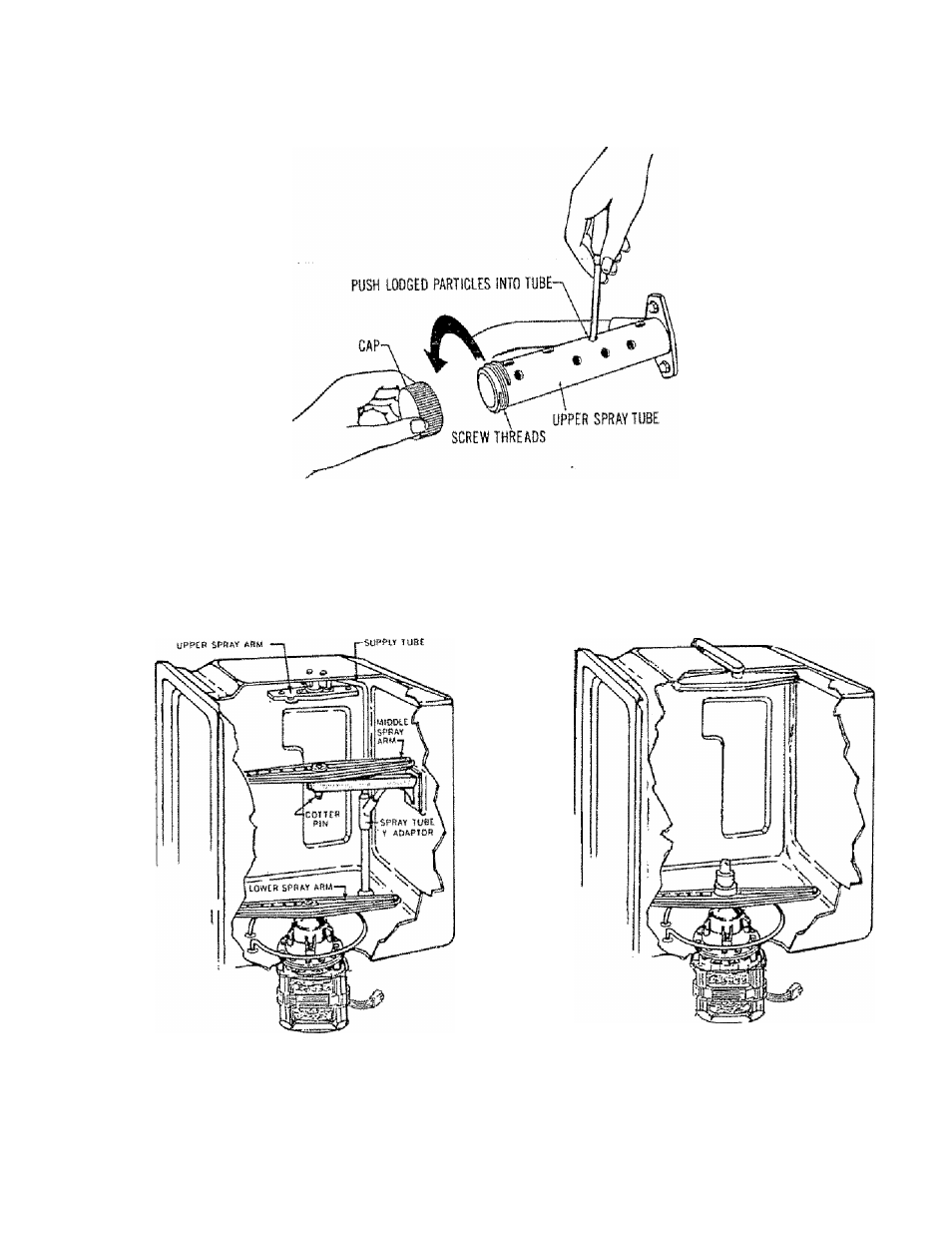

Periodic cleaning of the spray tube is recommended One method is shown is Figure 16 The loosened particfes may
be flushed from the lube by operating the dishwasher in a wash cycle with the cap removed.
FIGURE 16
LwrOvol XA/oish Systom
The upper or third levei wash system used in certain models is intended to give increased wash efficiency for articles in
the upper rack. See Figure 37 A St B.
ciPiiDi: llD
FIGURE 17A
17B
The water for the system in 17A Is bled off from the middle wash system by means of a "Y" adapter in
rriain
supply tube and a branching "L" shaped supply tube from that point to the top center of the tub In t]’®
^
arm^s^suppiied directly from the pump by means of an external supply tube - The tower in the
J
aim tefescopes upward washing the underside of the upper rack To remove the tower unscrew the lower sect.on of
the tower counterclockwise
