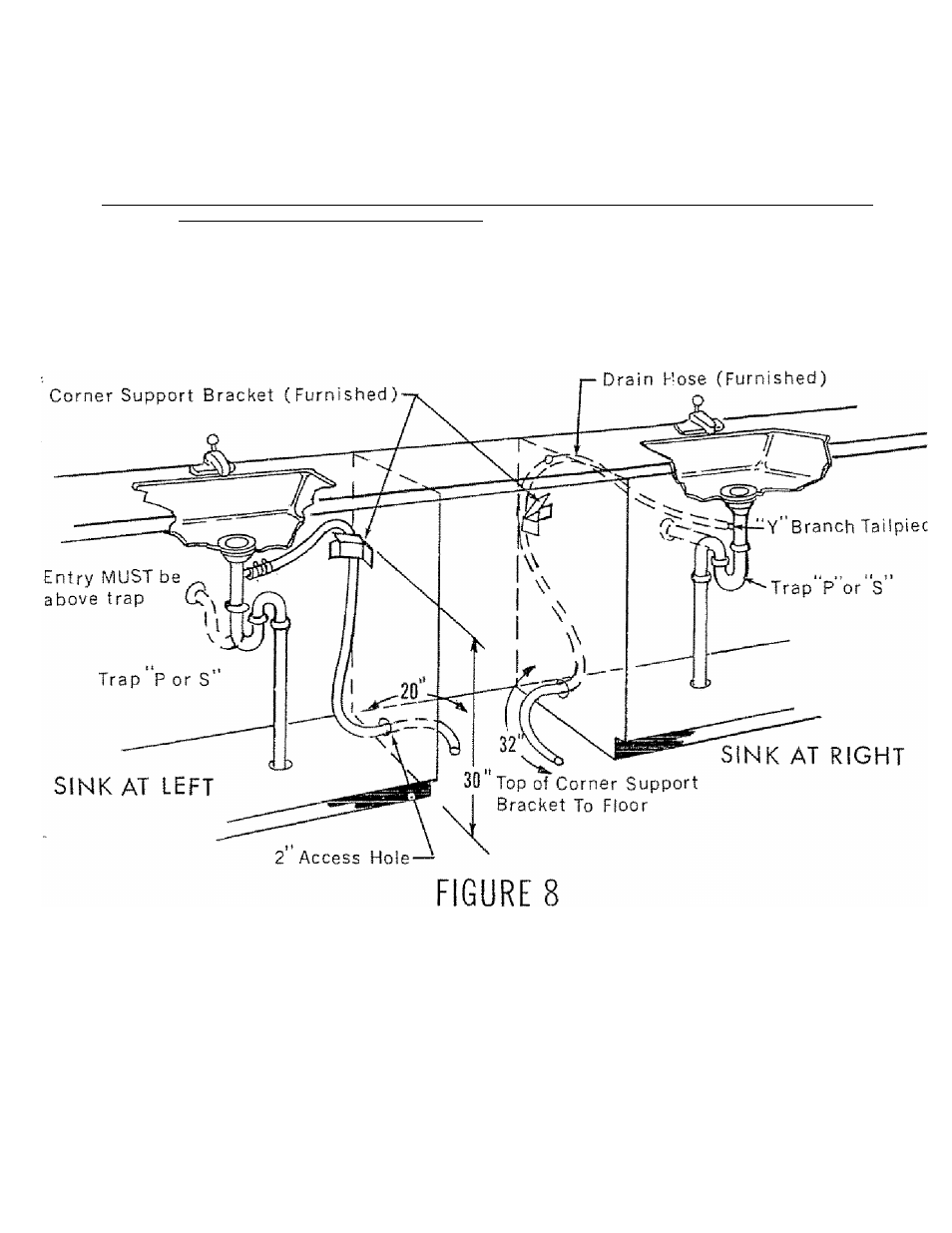

Referring lo Figures 8 and 9, install the drain connection parts lY branch tail-piece, disposer adapter, air gap, etc 1
in the location selected Install the drain hose corner support in the corner oí the cabinet next to the dishwasher

directly above the 2" access hole The top oí the support should be 30" above the kitchen floor 124 ' above cabinet

floor)
IMPORTANT:

THE DRAIN LOOP MUST BE FIXED AT A MINIMUM HEIGHT OF 32 INCHES BY USE OF A SUITABLE CLAMP OR

SUPPORT ONE TYPE OF WHICH IS SHOWN BEI...OW.

Route the hose from the dishwasher cabinet through the 2" access hole, then behind the corner support to the drain

and connect Be sure all bends are smooth and the hose is adequately supported The free end of the hose should
extend into the dishwasher cabinet 20" if the hole is on the left side, and 32" if the hole is on the right side Cut the
hose to length, being sure cut is square
