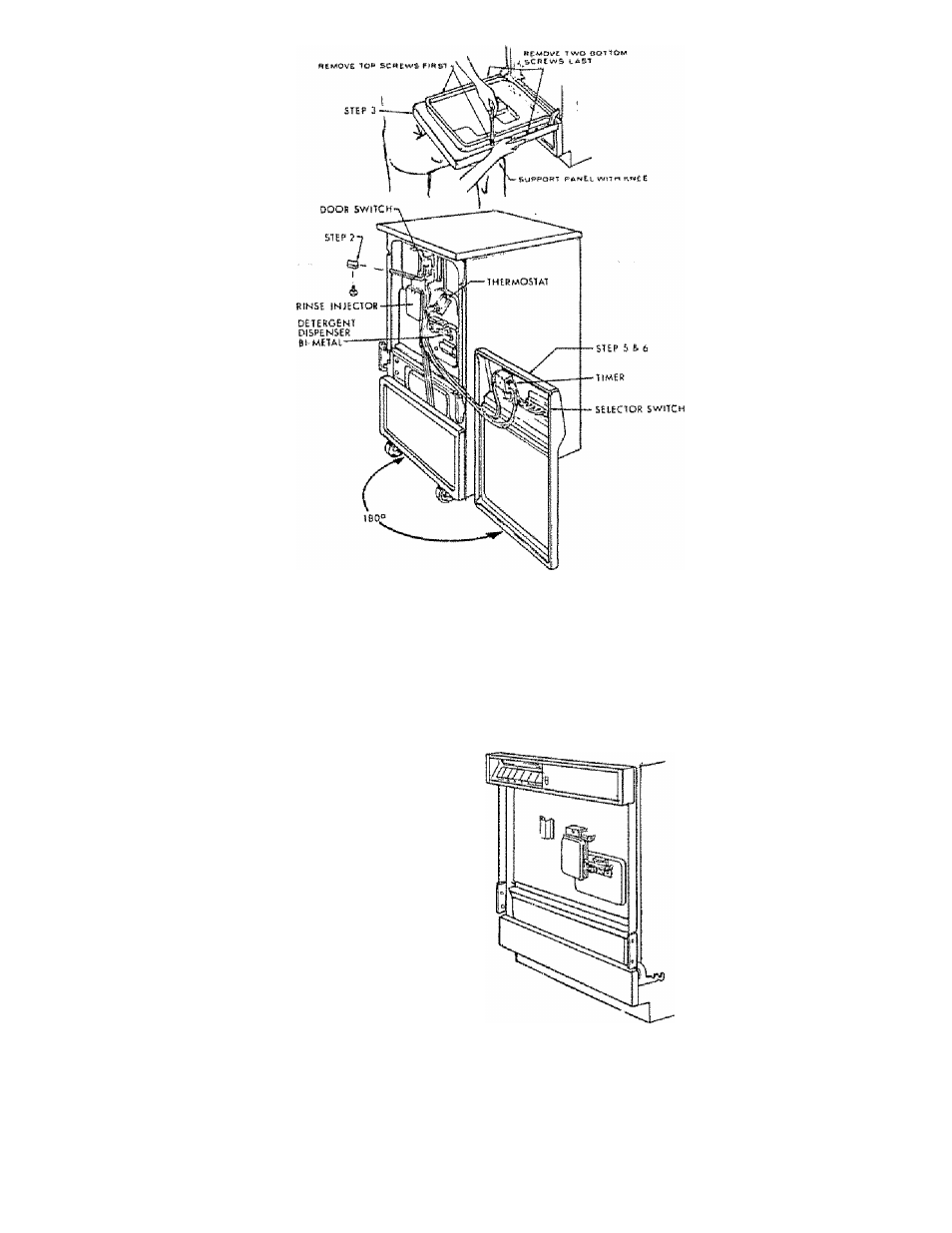

FIGURE 73

Two Piece Outer Door Control Pane!

The 2-piece outer door has a control pane! which is separate from the remainder of the door. Rernoval of iower panel

is accomplished in somewhat the same manner as the one-piece door panel. The control panel which houses the timer
and selector switches may be serviced by opening the door and removing the screws which bold it in place (Figure
74). When removing either panel, be sure to remove only those screws which hold that panel.

FIGURE 74

6 3
