AnthTiH Assembly 18” Portable Models
A new anti-till device was designed for the 18" dishwasher to prevent overturning with 50 pounds supported on an
open door.

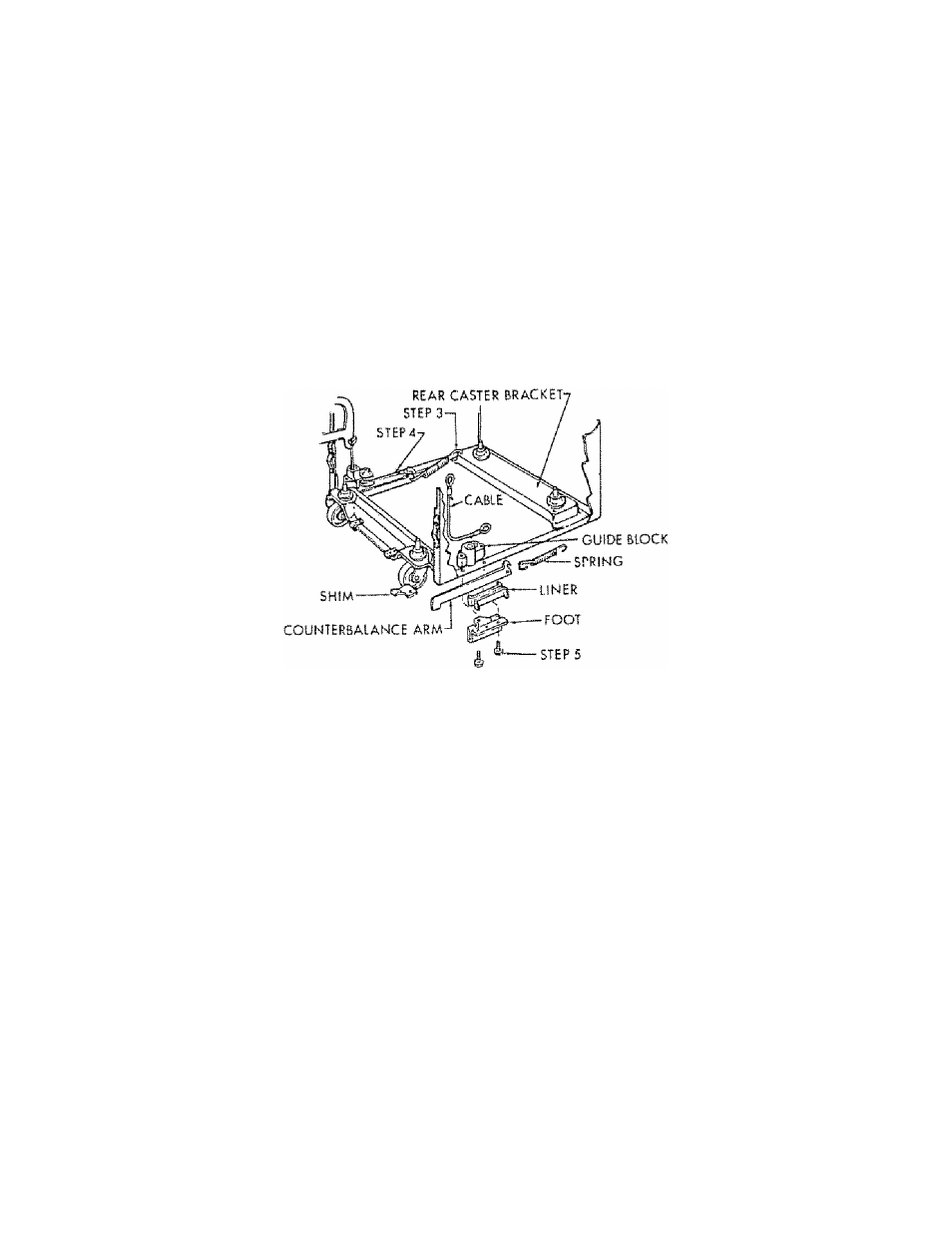

To remove; refer to Figure 75
1. Disconnect power supply
2 Place dishwasher on its back,
3, Remove spring attaching anti-tiit arm to the rear caster bracket
4. Remove cable from antl-liil arm,.
5
Remove screws attaching foot and shim to the frame assembly
6
Reverse procedure for replacement
FIGURE 75
"C" Arm Replacement 18' Dishwashers
1, Remove spring and cable from “C" arm (Figure 76)
2
Remove two (2) screws that hold “C" arm to inner door,
3
Remove bottom two (2) screws hoiding hinge bracket assembly to wrapper
4, Remove plastic ”C" arm guide.
5, Remove "C" arm pin from hole in hinge bracket assembly-
6, Push "C" arm through the notched area of the tub flange
7 Reverse procedure to replace
