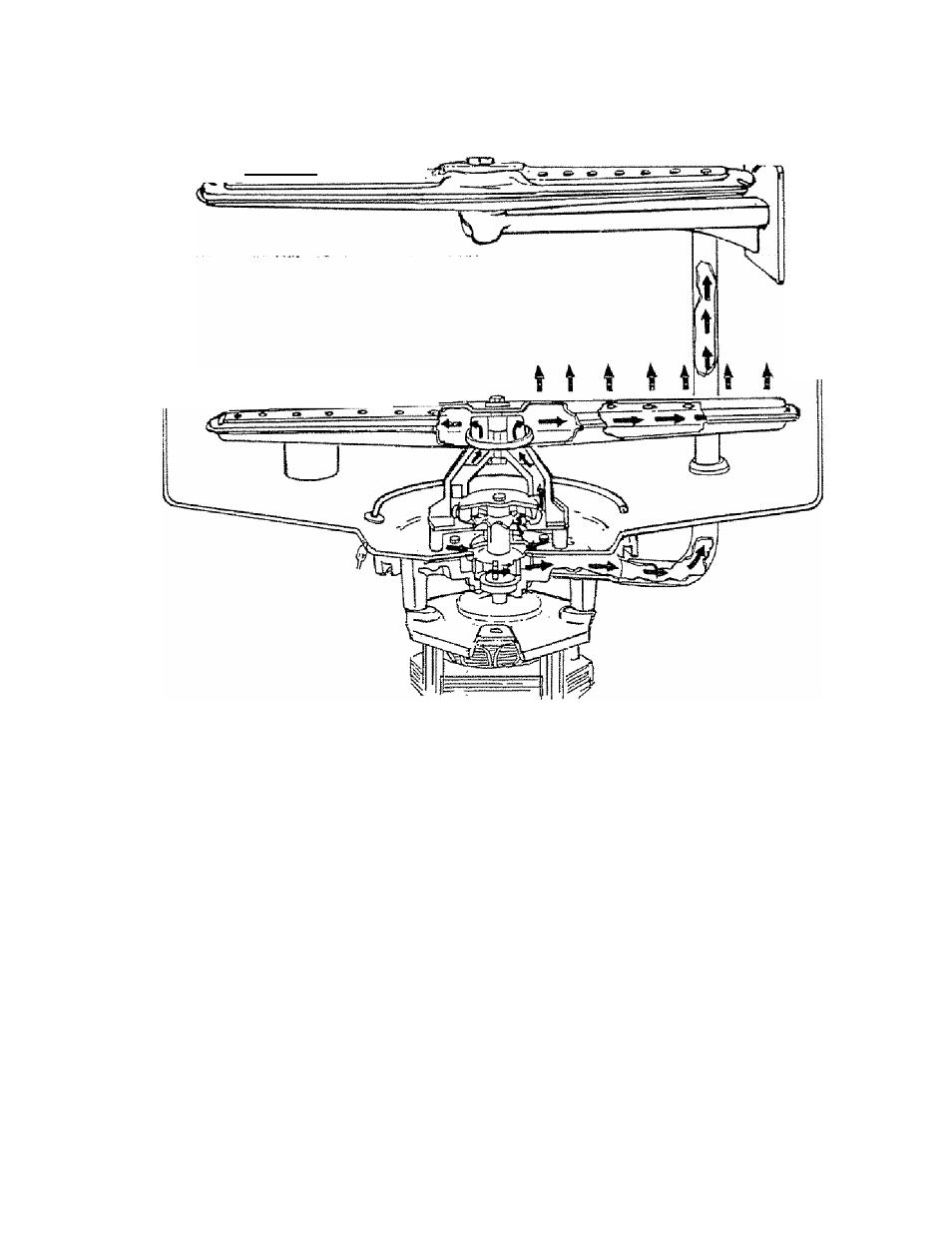

FIGURE 15
3. Sprsf Arm Assembly
The spray arm is mourned to the upper pump housing. Water from the sump is pumped through the upper pump
housing where it is directed to the spray arm. The water is discharged from ports in the spray arm as shown in Figure
15.
The velocity of the water discharged from the ports and the angle of the port opening causes the spray arm to rotate.
The rotation of the spray arm assures the distribution of water to ail corners of the tub.
A stuck or split spray arm can cause leaks or poor washabiiity. On complaints of this type, inspect the spray arm
closely for a possible split seam. Be sure the spray arm turns freefy on the pump housing, If binding is encountered,
it will be necessary to replace the pump housing or spray arm, or both.
4 Spray Tube
The spray tube or middle spray arm directs water to the upper rack to assure complete washing and rinsing of all
plates and glassware. Water is pumped from the sump, by the lower impeller, through a hose connected to the spray
tube or middle spray arm.
On models having the upper roto rack, be certain the racks turns freely Unsatisfactory washing of the items in the
upper rack will result if the rack binds, is prevented from rotating by a tali item in the lower rack, or water is not
being discharged from the spray tube.
18
