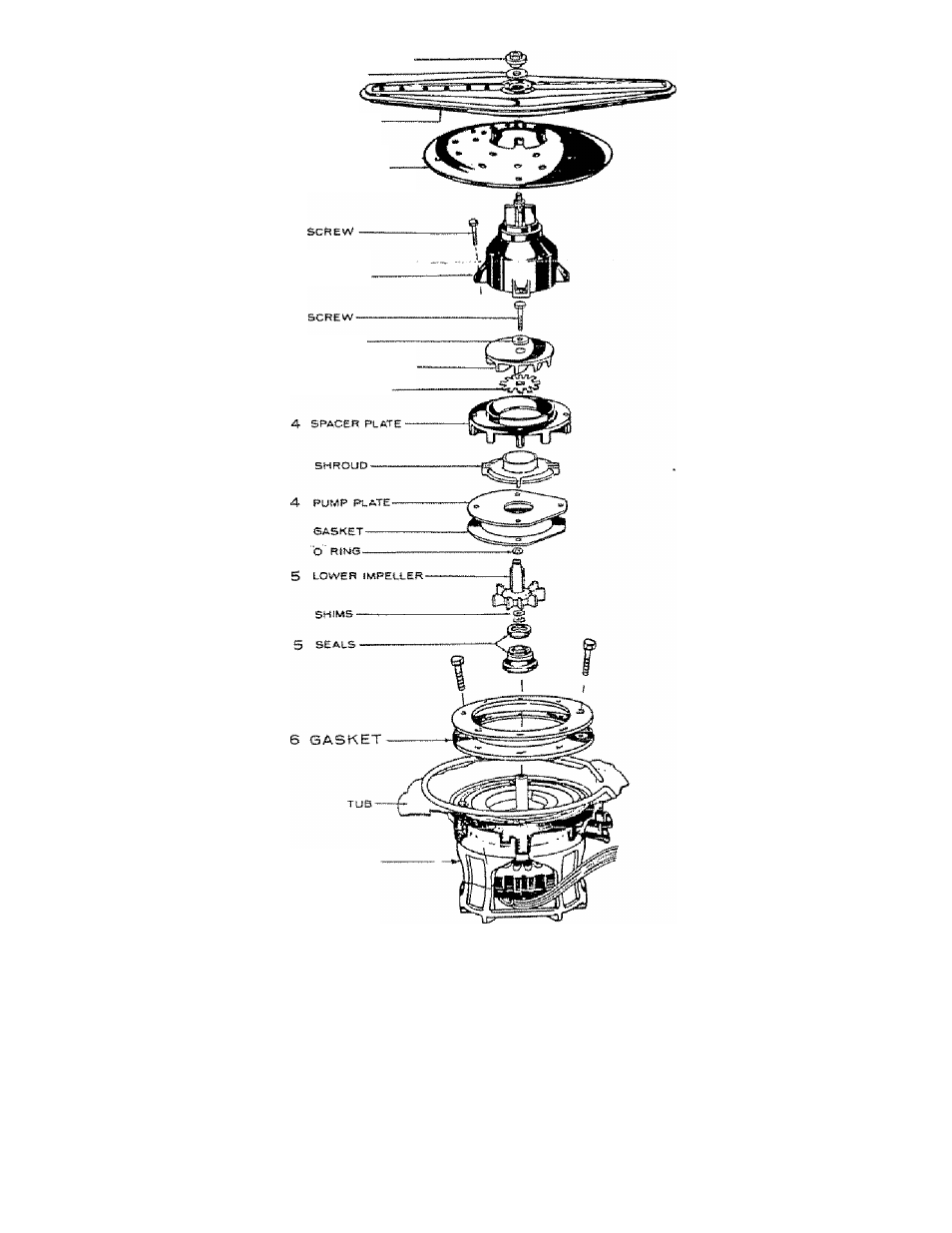

2 SPRAY ARM NUT
WASHER
2 SPRAY ARM
2 SUMP COVER
(SOME MODELS)
3 DIFFUSER
WASHER
4
UPPER IMPELLER
4
MACERATOR
6 M O T O R
F I G U R E 3 6
H- MotorFlepidcsment (If you have a dishwasher manufactured in 1978 or later, refer to the procedure on Pag® 40)
To replace the rrsain motor, it is necessary to remove the motor and circulating pump assembly from the dishwasher
Follow the procedure as outlined and refer to Figure 36-
IjVipORTAiMT;
Do not attempt any repairs on the machine without first disconnecting the dishwasher from
electrical power.
1 Disconnect wires,
circulating
hose and drain hoses from the pump casting,
2 Remove spray arm nut, washer, spray arm, and sump cover if used. f2)
