C Faucet Coupler
The fill and drain hoses of a portable dishwasher terminate in a faucet coupler Most couplers are equipped with bleed
valves to enable the operator to relieve the water pressure in the fill hose by depressing the valve button This prevents
splashing when the coupler is disconnected
D Coupler Repair

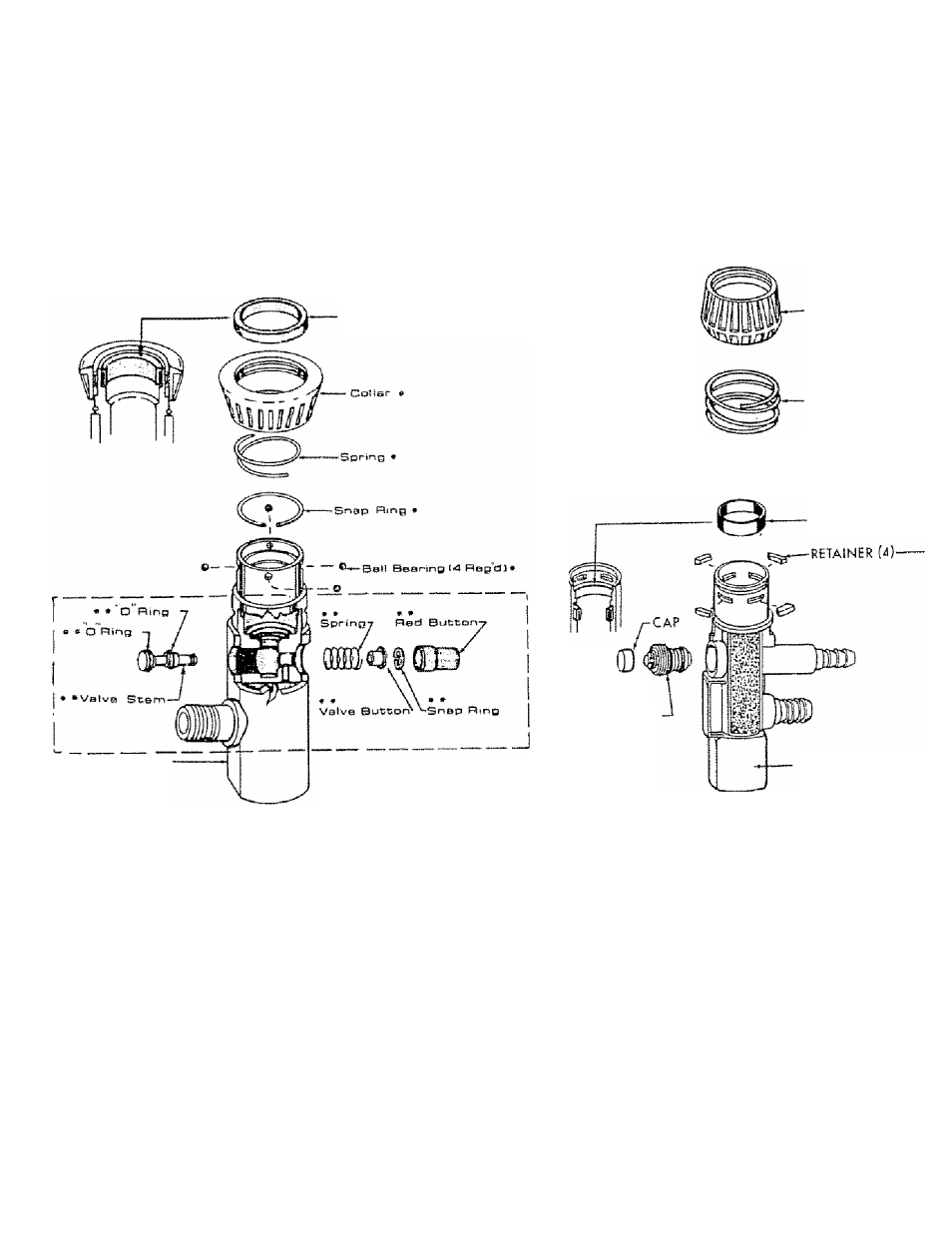

Because of the high cost of replacing complete couplers and coupler/hose assemblies, couplers should be repaired
whenever possible See Figure 44 and 4 5for exploded views of 2 faucet couplers and pressure relief valves used in
Sears dishwashers.
BOSSB4
Saekec
COUAR-
SPRING
r —“SNAPi^lNG'
B065B4
SIEEVÉ GASKET
Coupler Body PRESSURE RELIEF VALVE KiT
HEX WRENCH
pressure relief
VALVE
COUPLER BODY
FIGURE 44
FIGURE 45
The coupler body has a very long life. In general, it Is aging and wear that causes the sleeve (internal} gasket, collar and
pressure relief to faii.
If the collar is worn, the spring is weak or broken, or ball bearings are missing, order a Collar Repair Kit from Sears
Repair Parts Department, Have your model number available when purchasing repair parts
If the oressure relief valve is not sealing (leaking thru bleed hole) obtain a Pressure Relief Kit frorn Sears You must
have your model number in order to obtain the correct kit. The 2 pressure relief valves used in Sears dishwashers
are shown in Figures 4 4 and 4 5 -,
If water is coming up around the faucet snap adapter, replace Sleeve Gasket 806584,,
