800-543-9038 USA

866-805-7089 CANADA

203-791-8396 LATIN AMERICA

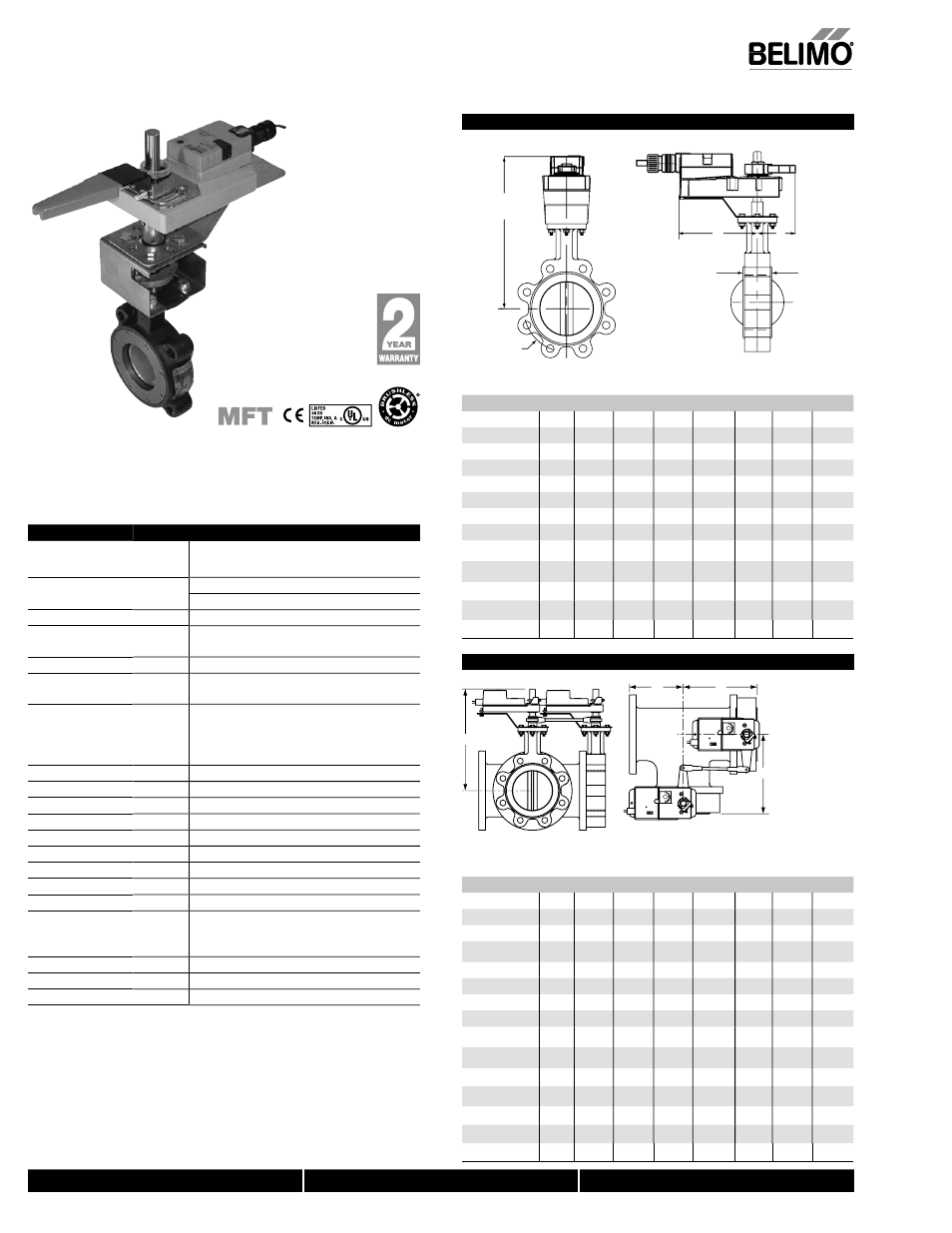

36

Models

GMX24-MFT-X1

Technical Data

Power supply

24 VAC ± 20% 50/60 Hz

24 VDC ± 10%

Power consumption

running 4.5 W

holding 2 W

Transformer sizing

7 VA (class 2 power source)

Electrical connection

3 ft, 18 GA appliance cable,
1/2” conduit connector

Overload protection

electronic throughout 0 to 95° rotation

Control signal

2 to 10 VDC, 4 to 20 mA
(with 500

Ω, 1/4 W resistor) ZG-R01

Input impedance

100 k

Ω for 2 to 10VDC (0.1 mA)

500

Ω for 4 to 20 mA

750

Ω for PWM

1500

Ω for on/off and fl oating point

Angle of rotation

mechanically limited to 95°

Direction of rotation

reversible with switch A/B

Position indication

0 to 1 and reversible indicator

Running time

150 sec.

Humidity

5 to 95% RH non-condensing

Ambient temperature

-22°F to 122°F [-30°C to 50°C]

Storage temperature

-40°F to 176°F [-40°C to 80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA (fl ammability rating)

Agency listings

cULus according to UL60730-1A/-2-14,
CAN/CSA E60730-1, CSA C22.2 No.24-93,
CE according to 89/336/EEC

Noise level

max. 45 dB (A)

Servicing

maintenance free

Quality standard

ISO 9001

GMX24-MFT-X1 Actuators, Multi-Function Technology

Dimensions with 2-Way Valve

D

B

C

A

BHC

Dimensions (Inches)

Non-Fail Safe

(psi)

Valve

Size

A

B

C

D(Max) BHC

GM

2*GM

F680HD

3”

1.69

9.00

9.00

20.50

6.00

200

F6100HD

4”

1.92

9.00

9.00

21.00

7.50

200

F6100HDU

4”

1.92

9.00

9.00

21.00

7.50

50

F6125HDU

5”

2.08

9.00

9.00

22.00

8.50

50

F6150HDU

6”

2.08

9.00

9.00

22.50

9.50

50

F650-150SHP

2”

1.75

9.00

9.00

19.50

4.75

285

F665-150SHP

2½”

1.88

9.00

9.00

20.00

5.50

285

F680-150SHP

3”

1.92

9.00

9.00

20.50

6.00

285

F6100-150SHP

4”

2.13

9.00

9.00

21.00

7.50

150

285

F650-300SHP

2”

1.75

9.00

9.00

19.50

5.00

285

400

F665-300SHP

2½”

1.88

9.00

9.00

20.00

5.88

285

400

F680-300SHP

3”

1.92

9.00

9.00

20.50

6.63

285

400

F6100-300SHP

4”

2.13

9.00

9.00

21.00

7.88

150

285

Dimensions with 3-Way Valve

1

0

0

1

0

0

D

A

B

C

Dimensions (Inches)

Non-Fail Safe

(psi)

Valve

Size

A

B

C

D(Max) BHC

GM

2*GM

F765HD

2½”

5.00

6.70

6.70

16.00

5.50

200

F780HD

3”

5.50

7.20

7.20

16.25

6.00

200

F780HDU

3”

5.50

7.20

7.20

16.25

6.00

50

F7100HD

4”

6.50

8.45

8.45

17.00

7.50

200

F7100HDU

4”

6.50

8.45

8.45

17.00

7.50

50

F7125HDU

5”

7.50

9.60

9.60

17.50

8.50

50

F7150HDU

6”

8.00

10.08

10.08

18.00

9.50

50

F750-150SHP

2”

4.50

6.25

6.25

16.50

4.75

150

285

F765-150SHP

2½”

5.00

6.88

6.88

17.00

5.50

150

285

F780-150SHP

3”

5.50

7.42

7.42

17.50

6.00

150

285

F7100-150SHP

4”

6.50

8.63

8.63

18.00

7.50

150

F750-300SHP

2”

5.00

6.75

6.75

15.50

5.00

285

F765-300SHP

2½”

5.50

7.38

7.38

16.00

5.88

285

F780-300SHP

3”

6.00

7.92

7.92

16.25

6.63

285

F7100-300SHP

4”

7.00

9.13

9.13

18.00

7.88

150

A

M_GM_LineRe

vise

d

D

101

0

7/10 - Subject to change. © Belimo Air

controls (USA), Inc.
