31
Wiring Diagrams
2
CAUTION Equipment damage!
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
4 Actuators may also be powered by 24 VDC.
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may
be necessary to work with live electrical components. Have a qualifi ed licensed electrician
or other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.

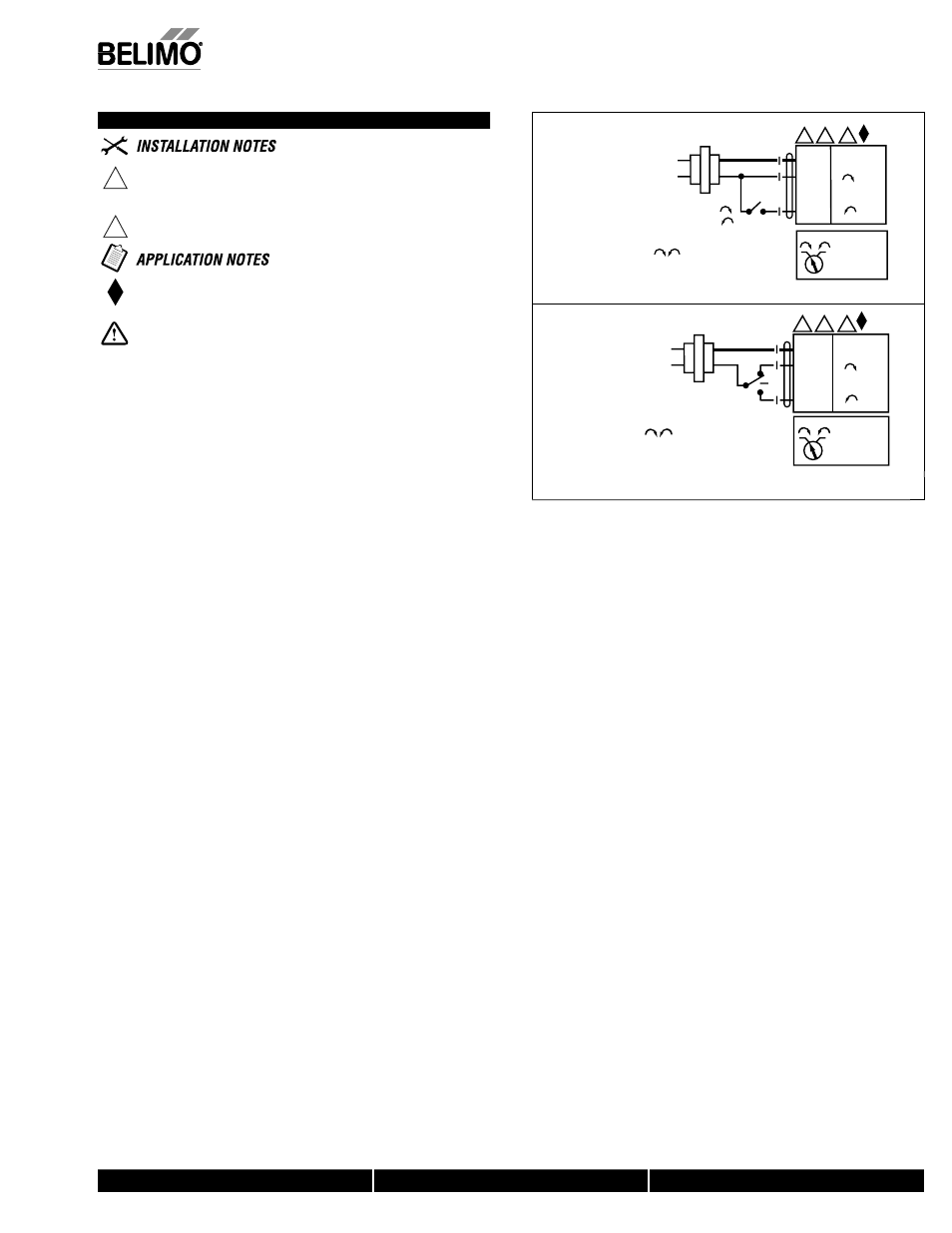

AM Series Actuators, On/Off, Floating Point
j y
2 3 5 24 VAC Transformer
a open
a closed
Blk (1) Common
Red (2) +
Wht (3) +
a
Line
Volts
The indication of direction
is valid for switch position 1.
AMB24-3-X1
1 0
W557
_
10
On/Off control
24 VAC Transformer
Blk (1) Common
Red (2) +
Wht (3) +
Line
Volts
The indication of direction
is valid for switch position 1.
2 3 5
AMB24-3-X1
1 0
W557
_
1
0
Floating Point or On/Off control
0
7/10 - Subject to change. © Belimo Air
controls
(USA
), Inc
.
