32
Models
AMX24-MFT-X1
Technical Data
Power supply 24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
Power
consumption running 4 W
holding 1.25 W
Transformer sizing 6 VA (class 2 power source)
Electrical connection ❑ 3 ft [1m] ❑ 10 ft [3m] ❑ 16 ft [5m]
18 GA plenum rated cable
½” conduit connector
Overload protection electronic throughout 0° to 95° rotation
Operating range Y 2 to 10 VDC, 4 to 20 mA (default)
Variable (VDC, PWM, Floating Point, On/Off)
Input impedance 100k Ω (0.1 mA), 500 Ω
1500 Ω (PWM, Floating Point, On/Off)
Feedback output U 2 to 10 VDC, 0.5 mA max
VDC Variable
Angle of rotation 95° electronically variable
Direction of rotation reversible with protected switch
Position indication handle
Manual override external push button
Running time 150 seconds (default)
variable (90 to 350 secs)
Humidity 5 to 95% RH non condensing
(EN 60730-1)
Ambient temperature -22°F to +122°F [-30°C to +50°C]
Storage temperature -40°F to +176°F [-40°C to +80°C]
Housing NEMA 2/IP54
Housing material UL94-5VA
Agency listings† cULus according to UL60730-1A/-2-14,
CAN/CSA E60730-1, CSA C22.2 No. 24-93,
CE according to 89/336/EEC
Noise level <45dB(A)
Quality standard ISO 9001
† Rated impulse voltage 4kV, Control pollution degree 3, Type of action 1

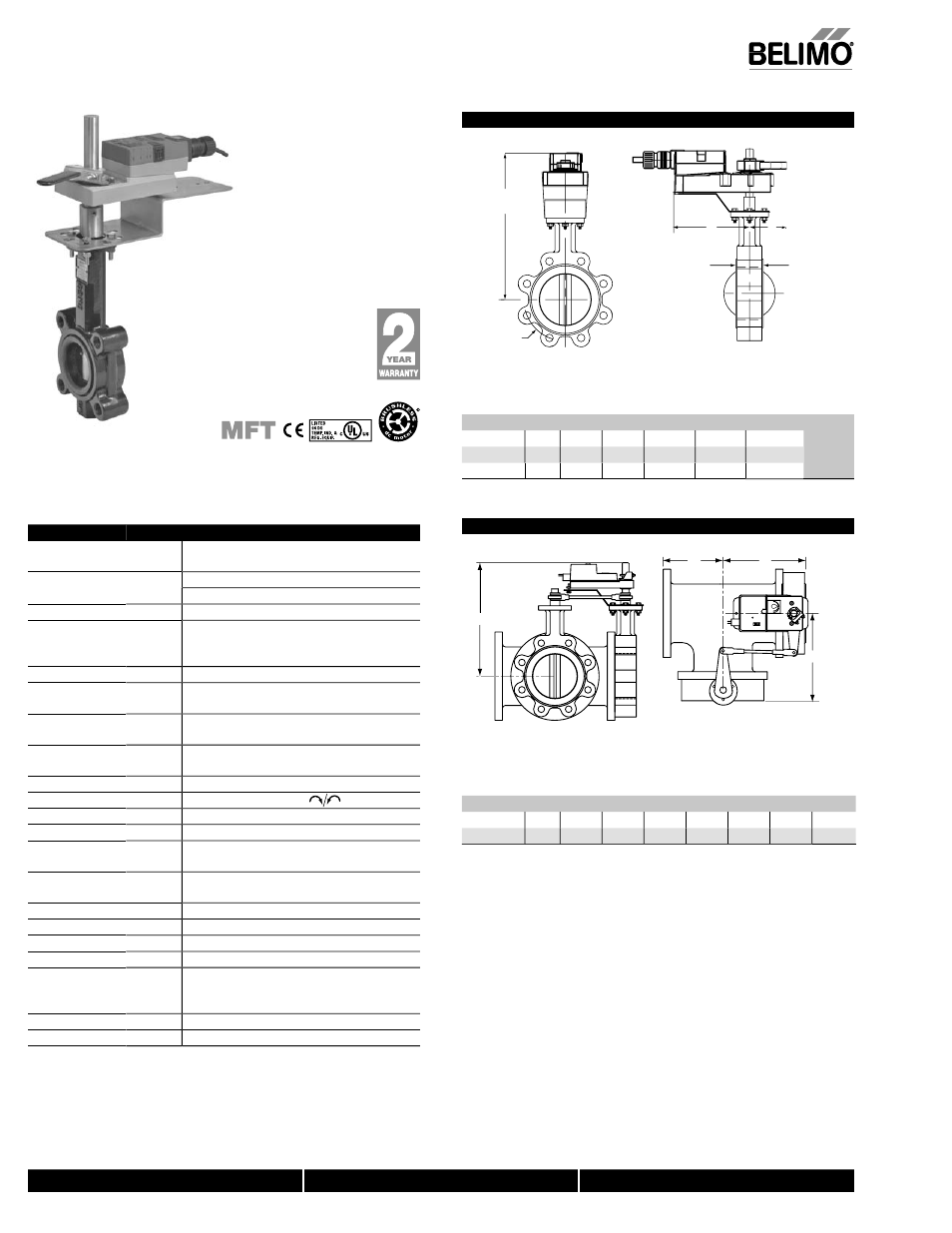

AM Series Actuators, Multi-Function Technology
Dimensions with 2-Way Valve
D
B C
A
BHC
Dimensions (Inches)
Valve Size A B C D(Max) BHC
N
on-
Fa
il
S
afe (psi
)
F650HD(U) 2” 1.65 7.00 7.00 15.00 4.75
F665HD(U) 2½” 1.76 7.00 7.00 15.50 5.50
F680HDU 3” 1.78 7.00 7.00 16 .00 6.00
Dimensions with 3-Way Valve
Dimensions (Inches)
Non-Fail Safe
(psi)
Valve Size A B C D(Max) BHC HD HDU
F750HD 2” 4.50 6.15 6.15 15.50 4.75 200
F765HDU 2½” 5.00 6.76 6.76 16.00 5.50 200 50
AM
_
GM
_
LineRe
vise
d
S
in
g
le_Butterfl
y
10 0
D
A B
C
0
