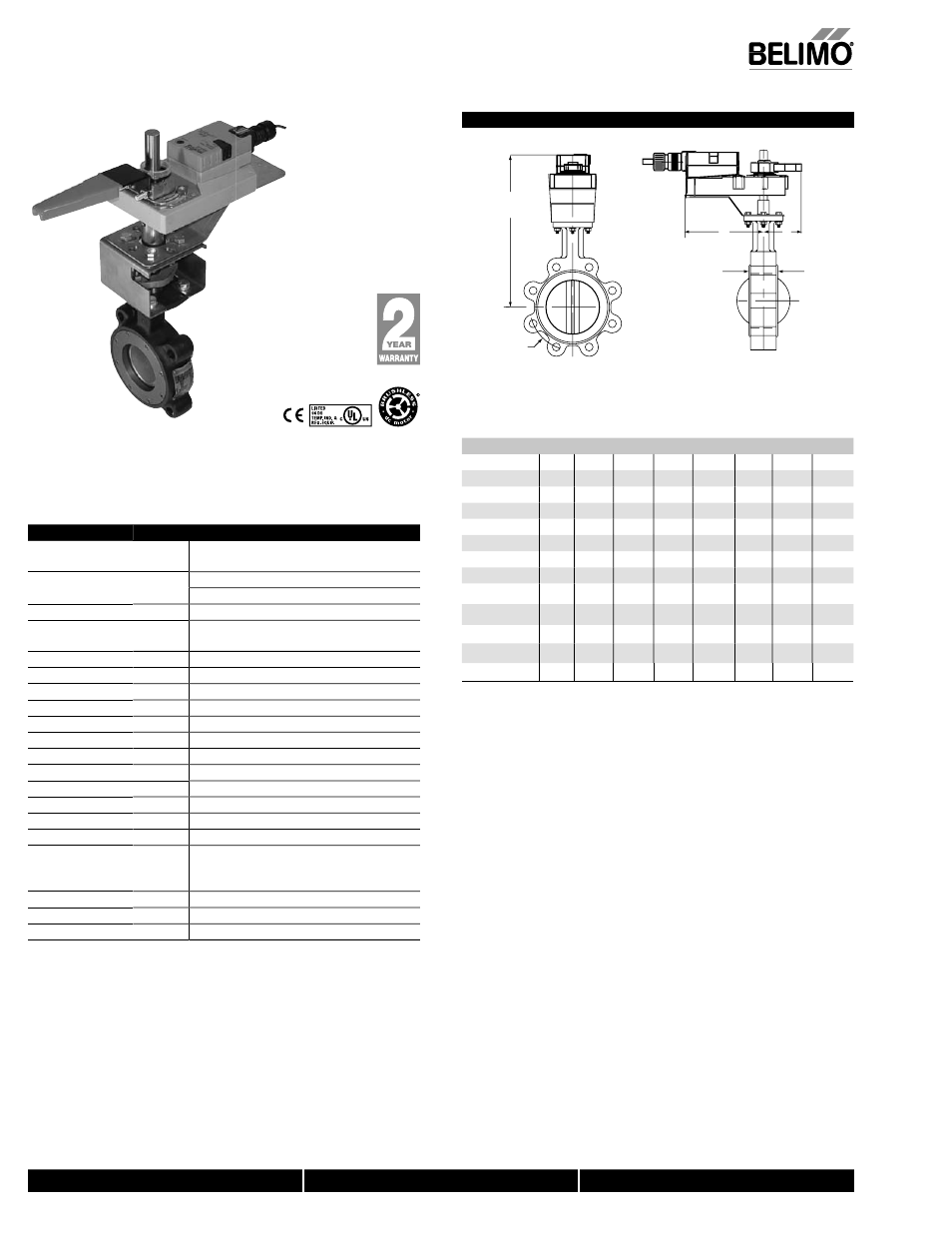

GMB24-3-X1 Actuators, On/Off, Floating Point

Models

GMB24-3-X1

Technical Data

Power supply

24 VAC ± 20% 50/60 Hz
24 VDC ± 10%

Power consumption

running 4.0 W

holding 2 W

Transformer sizing

6 VA (class 2 power source)

Electrical connection

3 ft, 18 GA appliance cable,
1/2” conduit connector

Overload protection

electronic throughout 0 to 95° rotation

Control signal

On/Off, Floating Point

Input impedance

600

Ω

Angle of rotation

mechanically limited to 95°

Direction of rotation

reversible with switch A/B

Position indication

0 to 1 and reversible indicator

Running time

150 sec.

Humidity

5 to 95% RH non-condensing

Ambient temperature

-22°F to 122°F [-30°C to 50°C]

Storage temperature

-40°F to 176°F [-40°C to 80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA (fl ammability rating)

Agency listings

cULus according to UL60730-1A/-2-14,
CAN/CSA E60730-1, CSA C22.2 No.24-93,
CE according to 89/336/EEC

Noise level

max. 45 dB (A)

Servicing

maintenance free

Quality standard

ISO 9001

Dimensions with 2-Way Valve

D

B

C

A

BHC

Dimensions (Inches)

Non-Fail Safe

(psi)

Valve

Size

A

B

C

D(Max) BHC

GM

2*GM

F680HD

3”

1.78

7.00

7.00

16.00

6.00

200

F6100HD

4”

2.05

8.00

8.00

17.00

7.50

200

F6100HDU

4”

2.05

8.00

8.00

17.00

7.50

50

F6125HDU

5”

2.14

8.00

8.00

17.50

8.50

50

F6150HDU

6”

2.19

8.00

8.00

22.50

9.50

50

F650-150SHP

2”

1.75

9.00

9.00

19.50

4.75

285

F665-150SHP

2½”

1.88

9.00

9.00

20.00

5.50

285

F680-150SHP

3”

1.92

9.00

9.00

20.50

6.00

285

F6100-150SHP

4”

2.13

9.00

9.00

21.00

7.50

150

285

F650-300SHP

2”

1.75

9.00

9.00

19.50

5.00

285

400

F665-300SHP

2½”

1.88

9.00

9.00

20.00

5.88

285

400

F680-300SHP

3”

1.92

9.00

9.00

20.50

6.63

285

400

F6100-300SHP

4”

2.13

9.00

9.00

21.00

7.88

150

285

AM_GM_LineRe

vise

d

0
