4-7

O

ther Fu

nct
ion
s

4

SL-VH1S-NO4-E

4-5

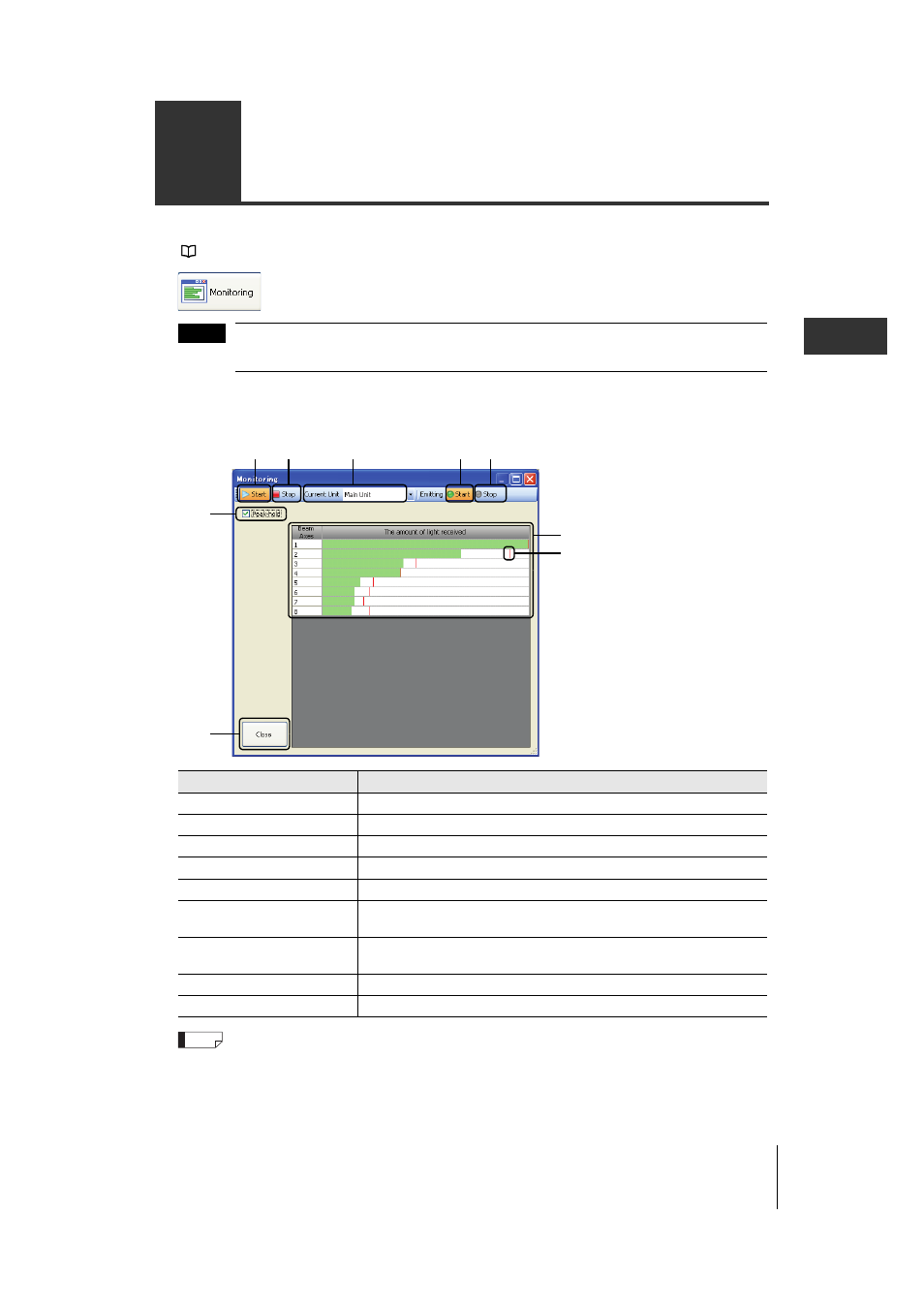

Monitoring the Received Light Intensity on the SL-V

The received light intensity on each beam axis of the connected SL-V can be checked on the monitor of the PC.

"Connecting" (Page 1-8)

The received light intensity can be monitored only when the type configuration set in the [System

information] corresponds to the information uploaded to the connected SL-V.

1

Click [Monitoring] on the toolbar.

The received light intensity for each light axis is displayed.

It is recommended that the SL-V is installed so that the bars for the received light intensity of all the beam

axis numbers reach the limit.

2

Click the [Close] button.

The monitoring screen closes, and the screen returns to the setting screen.

NOTE

Item

Function

(1) Start

Starts monitoring the received light intensity.

(2) Stop

Pauses monitoring the received light intensity.

(3) Current Unit

When a subunit is connected, this switches between Main Unit, Sub Unit 1, and Sub Unit 2.

(4) Start

Starts the laser emission of the SL-V.

(5) Stop

Stops the laser emission of the SL-V.

(6) Peak-hold

When the checkbox is selected, the line that shows the peak value of the
receiving light is displayed.

(7) Received light intensity

monitor area

The received light intensity for each beam axis is displayed by bars.

(8) Peak Value

When the [Peak-hold] is selected, the peak value of the received light intensity is displayed.

(9) Close

Closes the received light intensity monitoring screen.

(6)

(7)

(9)

(8)

(1)

(2)

(3)

(4)

(5)
