3-2

Co
nfig

urat

ion
of Eac

h

Fu
nct
ion

3

SL-VH1S-NO3-E

3-1

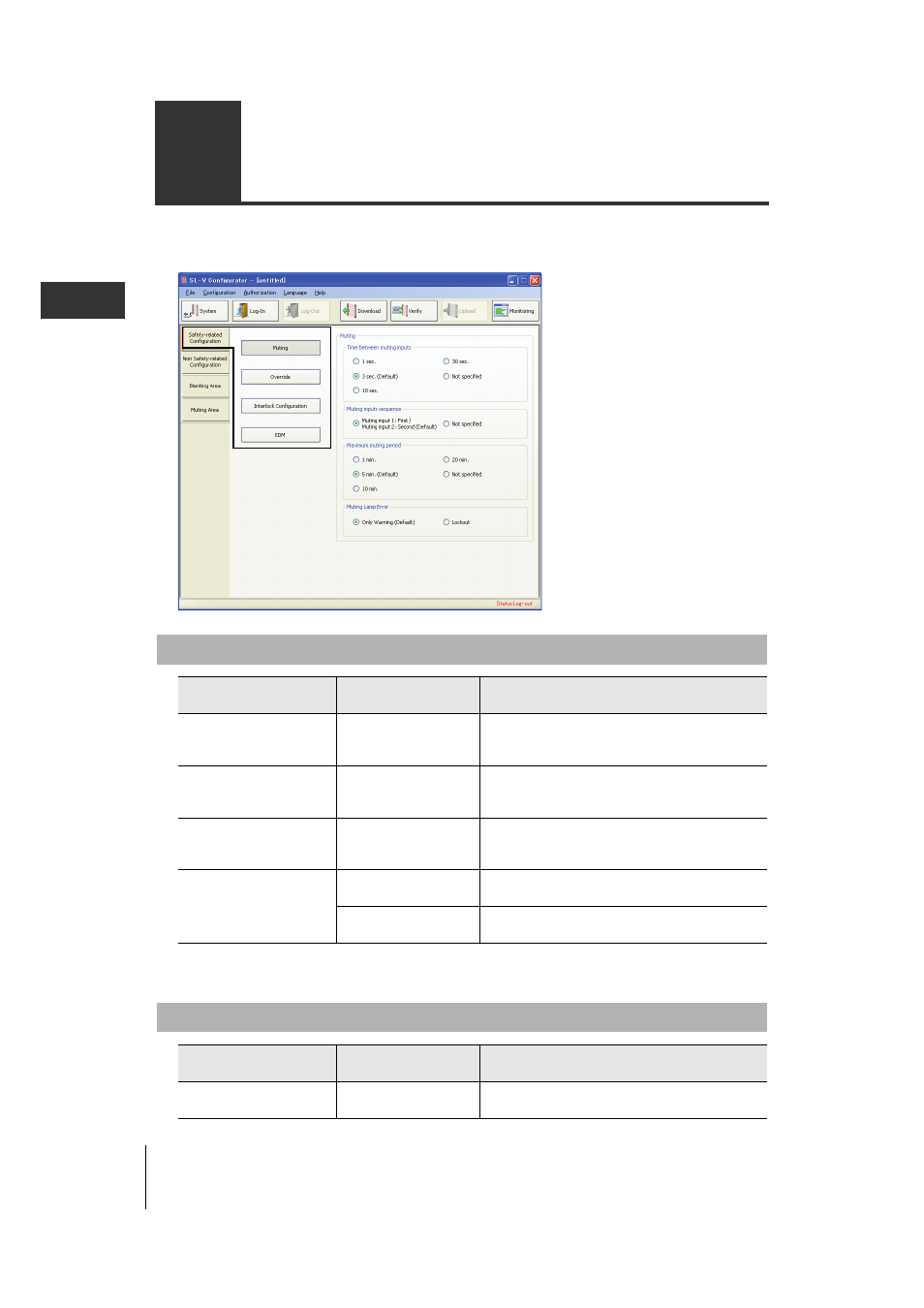

Safety Related Configuration

Configuration for safety functions, such as muting or interlock, is possible by clicking on the [Safety-

related Configuration].

* If the time between muting input 1 and 2 is over 3 seconds while both Time between muting inputs and Maximum

muting period are set to Not specified, the maximum muting period will be limited to approximately 5 minutes.

Muting Configuration

Item

Contents of

Configuration

Description

Time between muting inputs*

1 sec / 3 sec (Default) /
10 sec / 30 sec /
Not specified

This will configure the input time period specification
between the muting inputs 1 and 2. (The lower limit
time of 0.04 sec cannot be changed.)

Muting inputs sequence

Muting input1 : First /
Muting input2 : Second
(Default) / Not specified

This will configure the limit of the sequence of muting
inputs 1 and 2 getting turned on.

Maximum muting period*

1 min / 5 min (Default) /
10 min / 20 min /
Not specified

This will configure the maximum muting period of one
muting.

Muting Lamp Error

Only Warning (Default)

This will output state information when a burned out
muting lamp is detected, but it will not lock-out.

Lockout

This will output state information when a burned out
muting lamp is detected, and it will also lock-out.

Override Function

Item

Contents of

Configuration

Description

Maximum override period

30 sec / 1 min (Default) /
5 min / 15 min

This will configure the maximum override period.
