1-5 Connecting the SL-V and the Computer
1-8
Bef
o
re Use
1
SL-VH1S-NO1-E

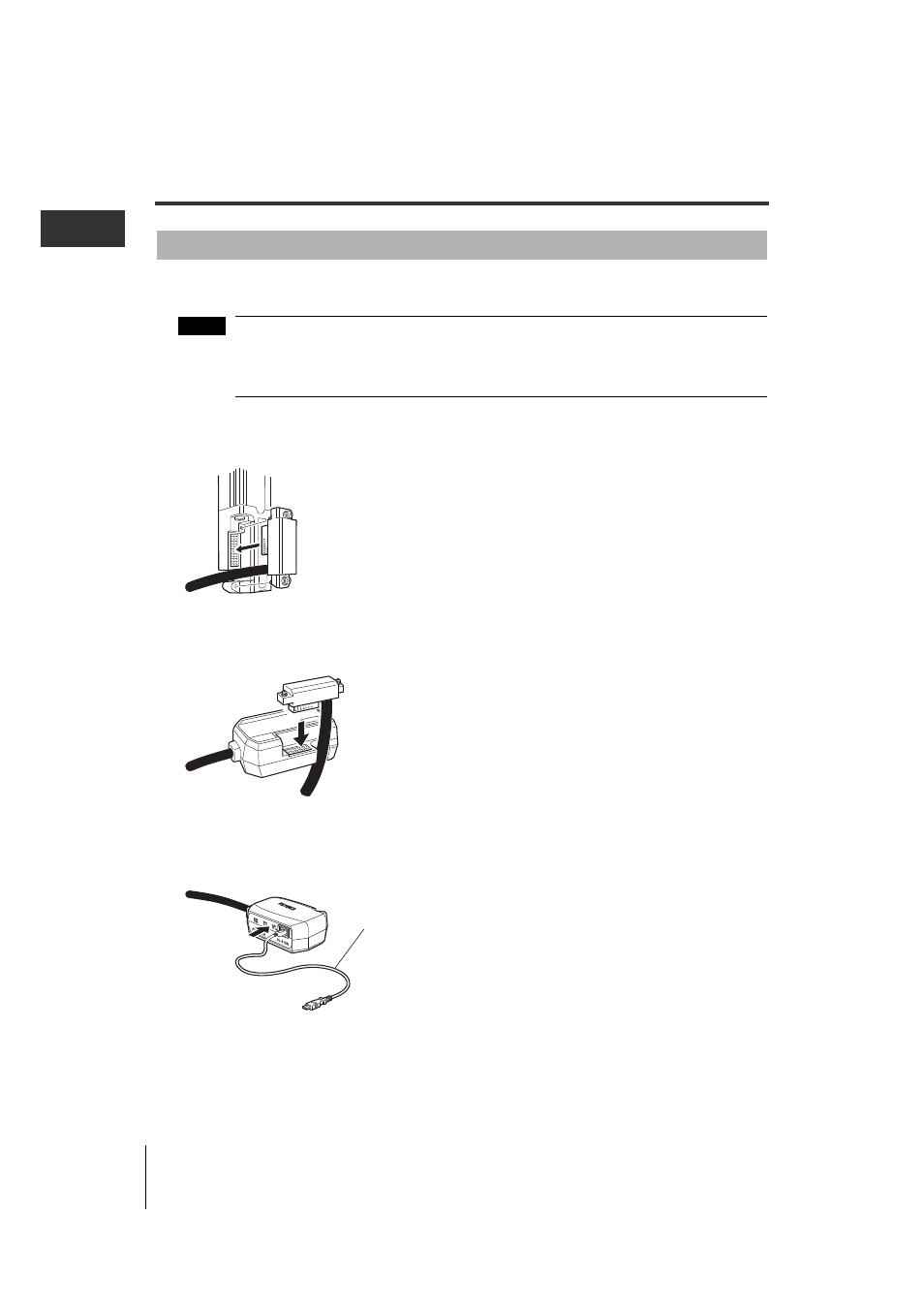

This section explains how to connect the SL-V and the computer.
• Turn on the power after all of the connections are completed.
• Turn off the power before removing any of the connectors.
• When the SL-V is positively grounded using the SL-V connection cable for the NPN output type,
do not ground on the computer side. (Communication cannot be established if grounded.)
1
Connect the SL-V1UB interface unit cable to the SL-V receiver.
2
Connect SL-V device cable (receiver) to the SL-V1UB interface unit.
3
Connect the SL-V1UB to the computer with the USB cable connected to the SL-V1UB device.
Connecting
Note
SL-V1UB
KEYENCE CORPORA
TION
http://www .key enec. com /
MED E IN JAP AN
SL-V connection cable
(Black coating)
USB cable included with the SL-V1UB
Connect to the USB port on the computer
