Changing the Type Configuration
The type and the number of connected SL-V can be changed when creating the settings.
When the type configuration is changed, the following setting items will be initialized.
• Reduced resolution
• Area settings for fix blanking
• Muting bank
• Area settings for muting
1

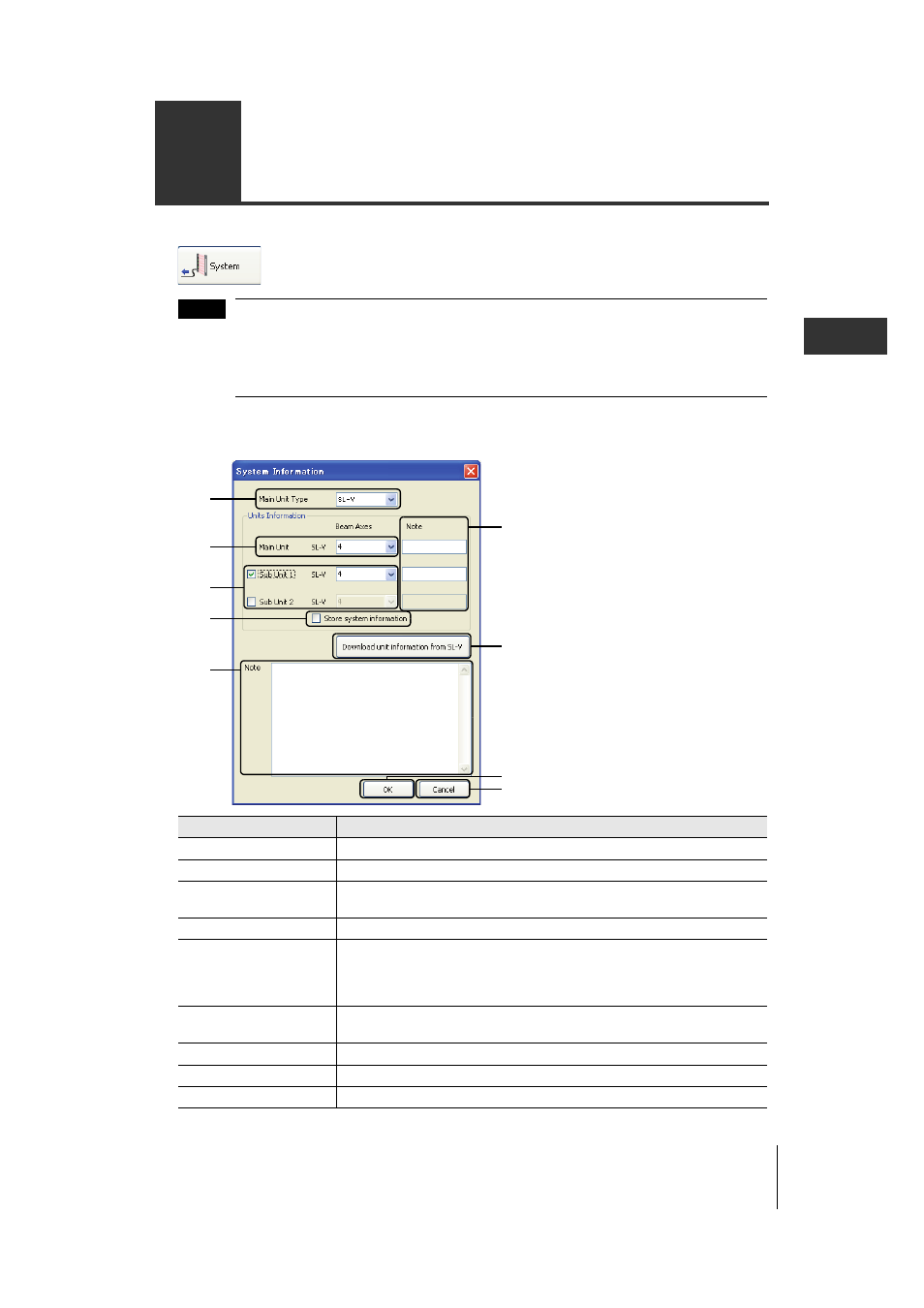

Click the [System] button of the toolbar.
The [System Information] dialog box appears.
NOTE
Item Description
(1) Main Unit Type (No need to select.)
(2) Beam Axes for Main Unit Enter the number of beam axes for main unit.
(3) Beam Axes for Sub Unit Place a check in the check box and select the number of beam axes when using a
sub unit.
(4) Note A memo can be affixed to each unit. (Up to 10 double byte characters)
(5) Store system information Number of beam axes for the sub unit 1 and the sub unit 2 can be memorized in the
main unit of the SL-V. By uploading the configuration with this option on, Configurator> will not be able to startup with expanded sub unit with different
number of beam axes as it was configured. (It will go to lockout condition.)
(6) Download unit information
from SL-V
This allows acquiring the system information of the connected SL-V.
(Model configuration and Note that is being configured will be discarded.)
(7) Note A Note can be added to the system itself. (Up to 1024 double-byte characters)
(8) OK button Applies the changes in the system information and returns to the main window.
(9) Cancel button Returns to the main window without applying the system information changes.
(1)
(2)
(3)
(5)
(7)
(4)
(6)
(9)
(8)
