3-7
Co
nfig
urat
ion
of Eac
h
Fu
nct
ion
3
SL-VH1S-NO3-E
3-4
Muting Area

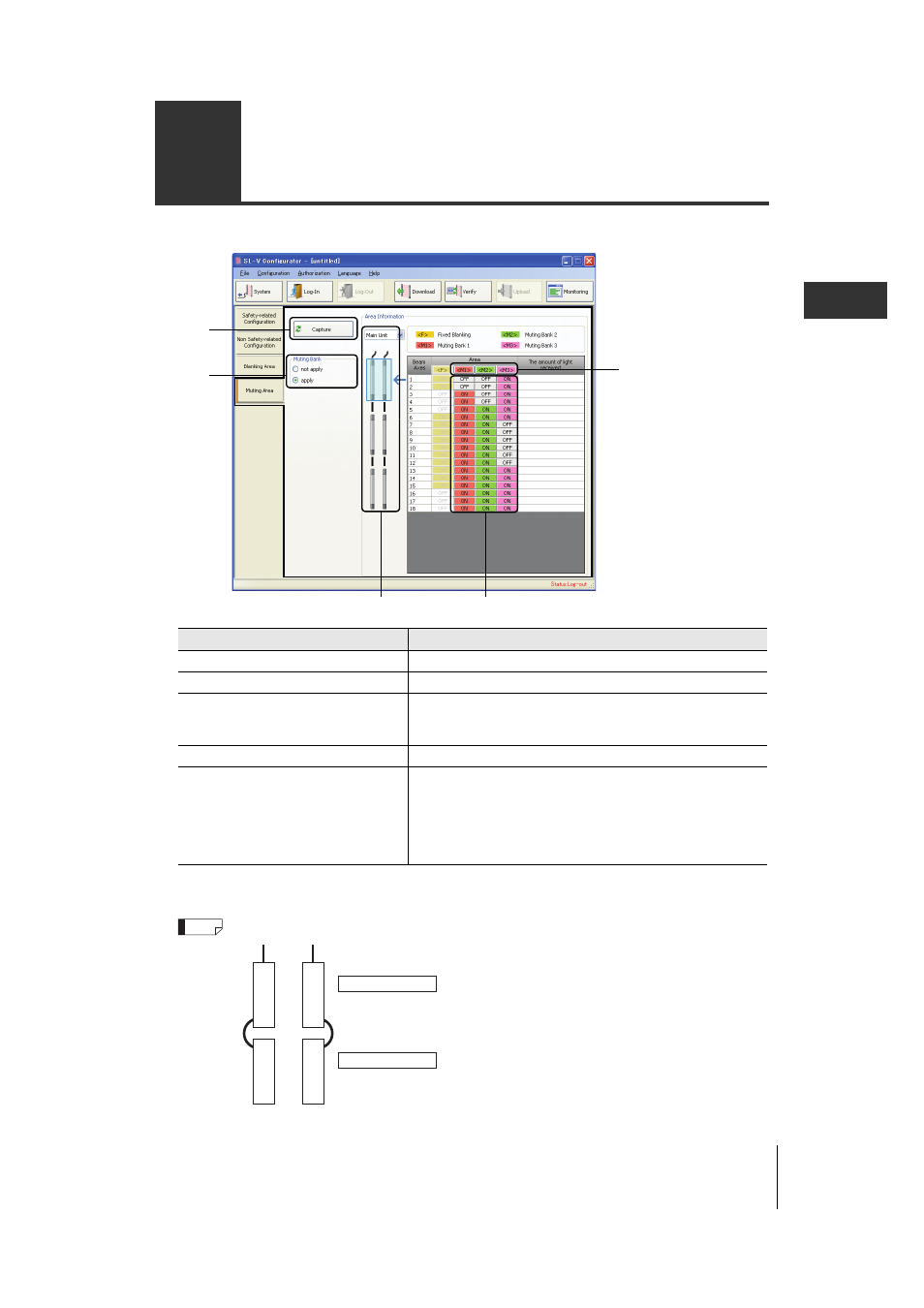

Configuration of muting area is possible by clicking on the [Muting Area] tab.
* This can be executed only when the model configuration configured in the [System] matches the model
configuration of the connected SL-V.
Beam axis number will be 1, 2, 3, 4 ... from the side closer to the main unit power cable.
Item Description
(1) Capture* Amount of receiving light for connected light curtain can be confirmed.
(2) Muting Bank Configuration This will configure if the muting bank function is to be enabled or not.
(3) Unit Selection It is possible to switch the configuration target (main unit / sub unit 1 /
sub unit 2) if it is connected in series. It can also be switched from the
combo box.
(4) Collective Configuration ON/OFF of the all beam axes can be switched by clicking this.
(5) Configuration Area This will configure the beam axis to enable muting in the row of .
ON will enable, and OFF will disable it, and it will switch between ON/
OFF every time it is clicked. ON/OFF can also be switched
collectively by dragging. and can be configured when
the muting bank function is enabled.
•
Configuration range: Not specified
(2)
(1)
(3)
(4)
(5)
Reference
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
Main Unit
Sub Unit
