REAR CONNECTORS

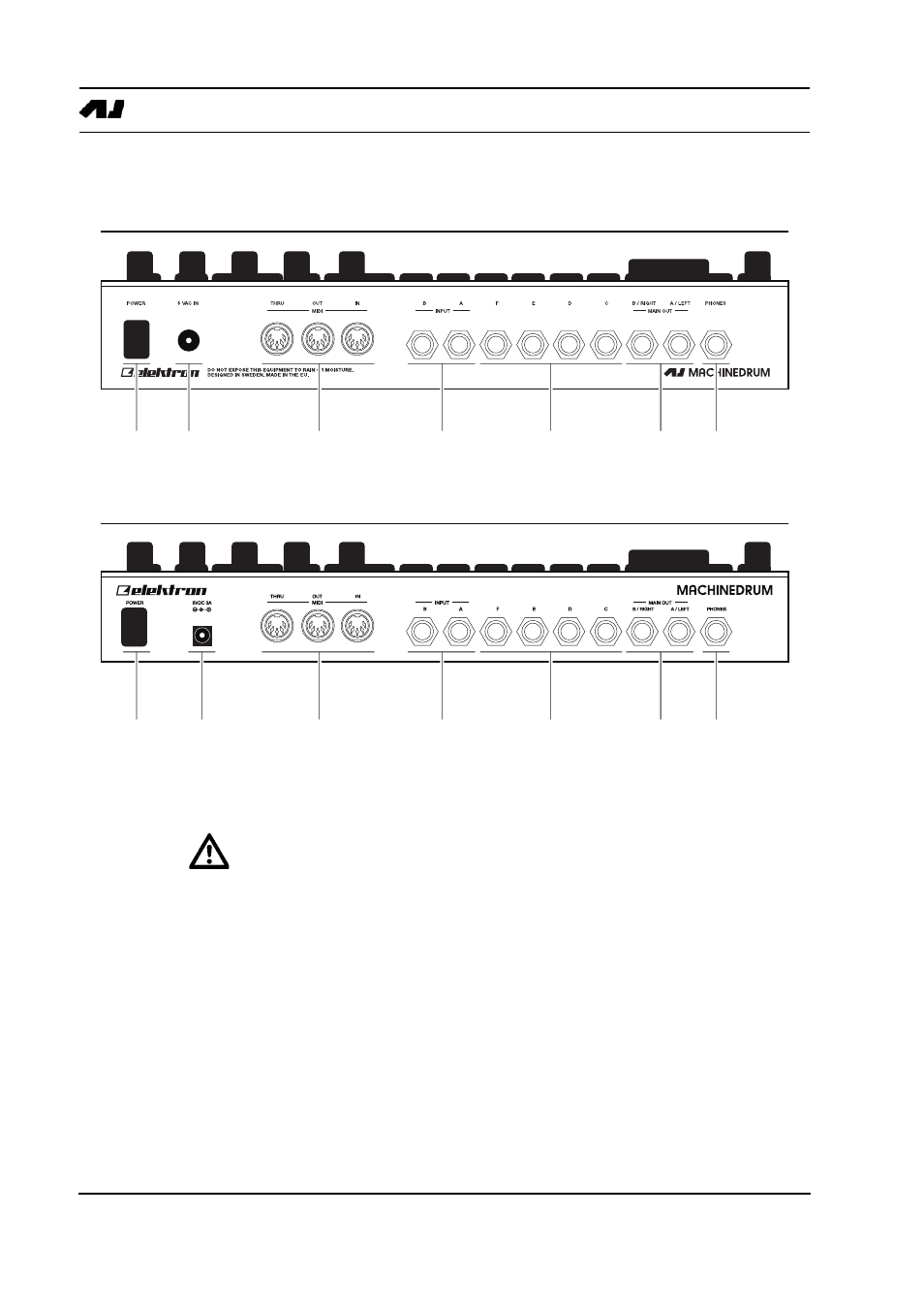

The Machinedrum rear connectors:
1.
Power on/off switch.
2.
6V DC power in.
•
Caution! Use only an Elektron-approved power supply with your Machinedrum. A
power supply is included with all MKII models. It can be used all over the globe
without the need of voltage converters using an appropriate power cord. Using
the wrong type of adapter may damage your unit. Damage caused by the use of
incorrect power supply is not covered by warranty. Please see “TECHNICAL
INFORMATION” on page 86 for details about the MKII power supply.
•
Note that the MKI models require a different power supply compared to the MKII
models. Please see “DIFFERENCES BETWEEN THE MKI AND MKII MODELS” on
page 87 for details about the power supply to be used with the MKI models.
3.
MIDI Thru.
4.
MIDI Out.
5.
MIDI In.
6.
Input B.
7.
Input A.
&
