USER INTERFACE AND CONNECTORS
4
USER INTERFACE AND CONNECTORS
FRONT PANEL

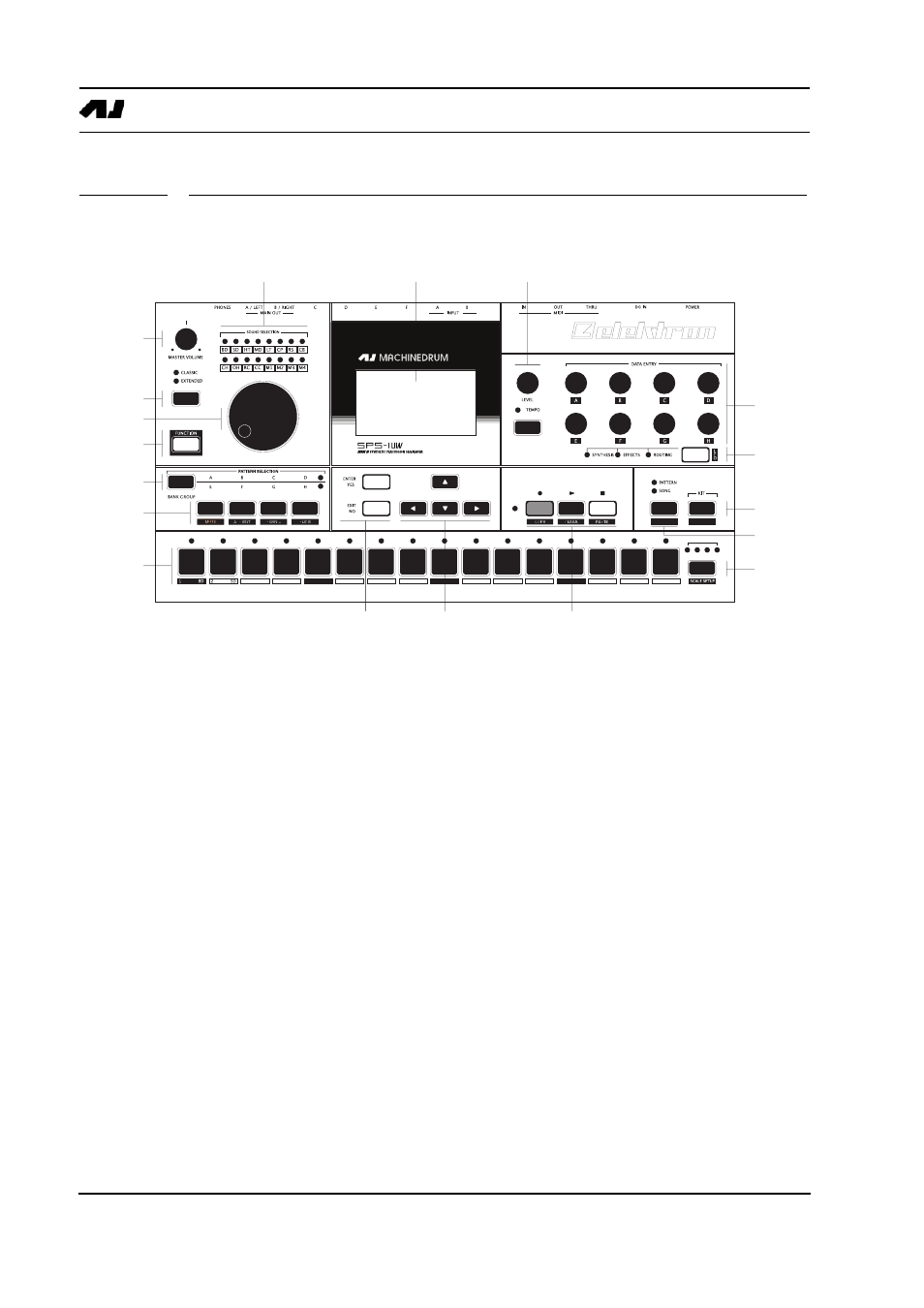

The Machinedrum front panel:
1.
Master volume control. Sets the volume for the main output and headphone jack.
2.
The
showing which tracks are triggered.
3.
[CLASSIC/EXTENDED] mode change key. Changes current editing mode between
CLASSIC and EXTENDED.
4.
SOUND SELECTION wheel. Selects tracks and changes values during editing. You can
also select tracks by holding the [FUNCTION] key while pressing the corresponding
[TRIG] key. It is also used when scrolling in lists.
5.
[FUNCTION] key. Press and hold it for accessing the secondary function of another key.
6.
[BANK] key. Used for switching between bank group A to D and E to H.
7.
[A/E] key. Hold this key while pressing one of the [TRIG] keys to select a pattern in
either the A or the E bank, depending on which bank group is selected. The secondary
function is track muting.
8.
[B/F] key. Hold this key while pressing one of the [TRIG] keys to select a pattern in
either the B or the F bank, depending on which bank group is selected. The secondary
function is accent pattern editing.
9.
[C/G] key. Hold this key while pressing one of the [TRIG] keys to select a pattern in
either the C or the G bank, depending on which bank group is selected. The secondary
function is the pattern swing settings.
10.
[D/H] key. Hold this key while pressing one of the [TRIG] keys to select a pattern in
either the D or the H bank, depending on which bank group is selected. The secondary
function is slide pattern editing.
11.
The LCD graphical interface.
12.
[ENTER/YES] key. Used for entering sub-menus and for confirming choices.
'
&*
&."'&
&)
&'"&(
&,
&-
'*
')
,"&%
)
+
(
&
*
''
'(
&&
3
HT
4
MT
6
CP
7
RS
8
CB
10
OH
11
RC
12
CC
14
M2
15
M3
16
M4
1/64
1:4
2:4
3:4
4:4
5
LT
9
CH
13
M1
SONG SETUP
GLOBAL
