Appendix D: MACHINES A-5

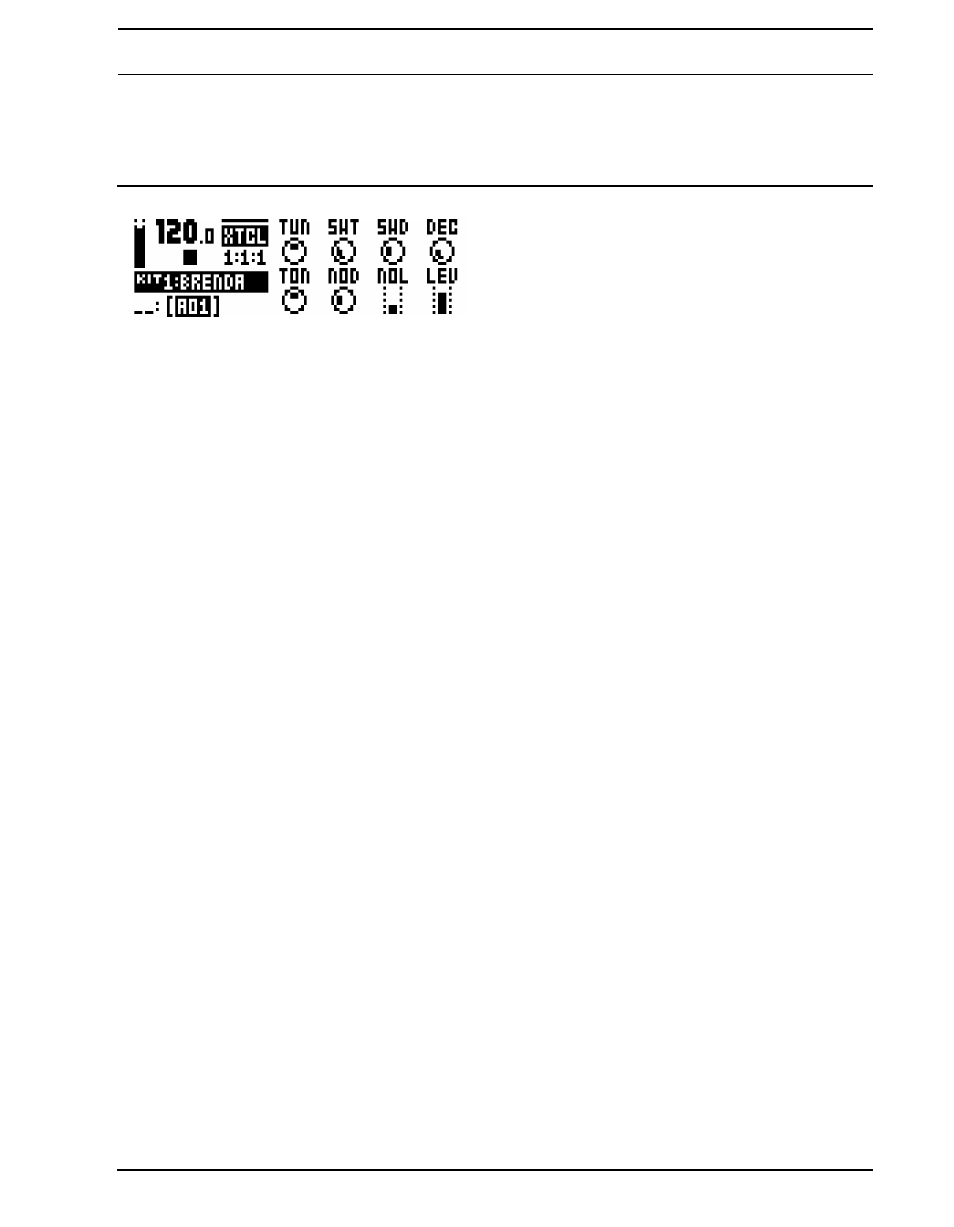

XTCL (TOM CLASSIC)
TUN (Tune) sets the pitch of the oscillator. Range (-64-+63).
SWT (Sweep Time) sets the pitch sweep time. Range (0-127).
SWD (Sweep Depth) sets the depth of the pitch sweep. Range
(0-127).
DEC (Decay Time) sets the decay time of the tom sound. Range
(0-127).
TON (Noise Tone) sets the pitch of the noise. Range (-64-+63).
NOD (Noise Decay) sets the decay time of the noise. Range (0-
127).
NOL (Noise Level) sets the noise level. Range (0-127).
LEV (Level) sets the overall volume level. Range (0-127).
The MACHINE below can be used on the LT, MT and HT tracks.
