GLOBAL MENU
52
PRG CH SEND will when active send program change messages when patterns are changed.
The MIDI channel that will send program change messages is set in the MIDI CHANNELS
menu, covered on page 53.

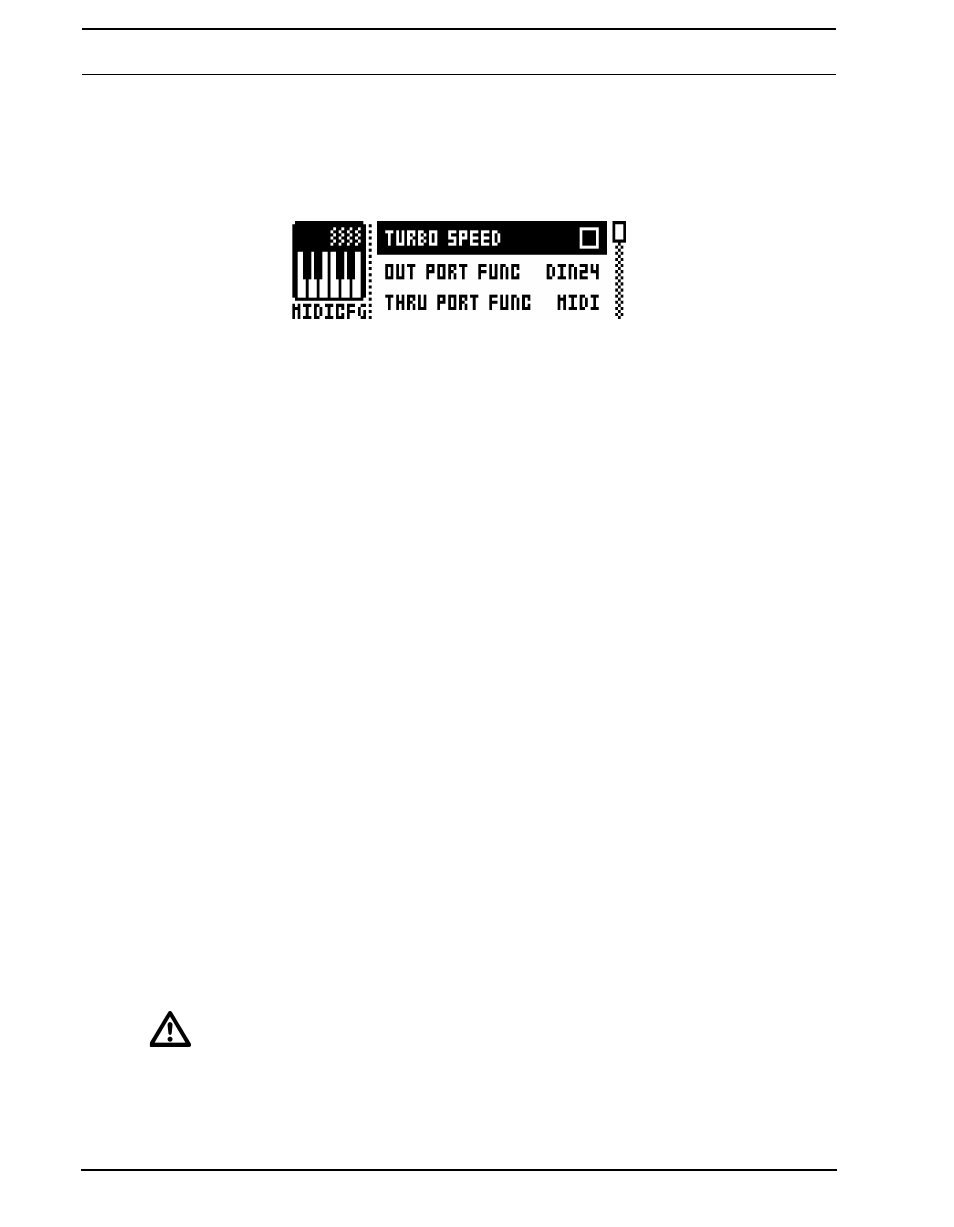

MIDI PORT CONFIG
MIDI port related settings are found in this menu. Change settings by using the [LEFT]/[RIGHT] arrow keys.
TURBO SPEED press [YES/SAVE] to start the turbo speed negotiation. Speed is chosen
automatically.
OUT PORT FUNCTIONALITY selects what type of signal the MIDI OUT port will send.
• MIDI makes it possible for the port to send out MIDI data.
• DIN 24 will make the port send DIN 24 sync pulses. No MIDI data can be sent on the
port when this option is selected.
• DIN 48 will make the port send DIN 48 sync pulses. No MIDI data can be sent on the
port when this option is selected.
THRU PORT FUNCTIONALITY selects what type of signal the MIDI THRU port will send. The
settings are the same as for OUT PORT FUNCTIONALITY.
INPUT FROM selects the source Analog Rytm will receive MIDI data from.
• DISABLED will make Analog Rytm disregard any incoming MIDI data.
• MIDI will make Analog Rytm listen only to MIDI data sent to the MIDI IN port.
• USB will make Analog Rytm listen only to MIDI data sent to the USB port.
• MIDI+USB will make Analog Rytm listen to MIDI data sent to both the MIDI IN and
USB ports.
OUTPUT TO selects the destination to which Analog Rytm will send MIDI data.
• DISABLED will stop Analog Rytm from sending out any MIDI data.
• MIDI will make Analog Rytm send MIDI data to the MIDI OUT port only.
• USB will make Analog Rytm send MIDI data to the USB port only.
• MIDI+USB will make Analog Rytm send MIDI data to both the MIDI OUT and USB
ports.
• If MIDI+USB is selected in the INPUT FROM and/or OUTPUT TO settings, MIDI data transfers will
limit the USB speed. When sending or receiving large chunks of data, make sure you use only the
USB setting.
