Digital Video Recorder User Manual
46

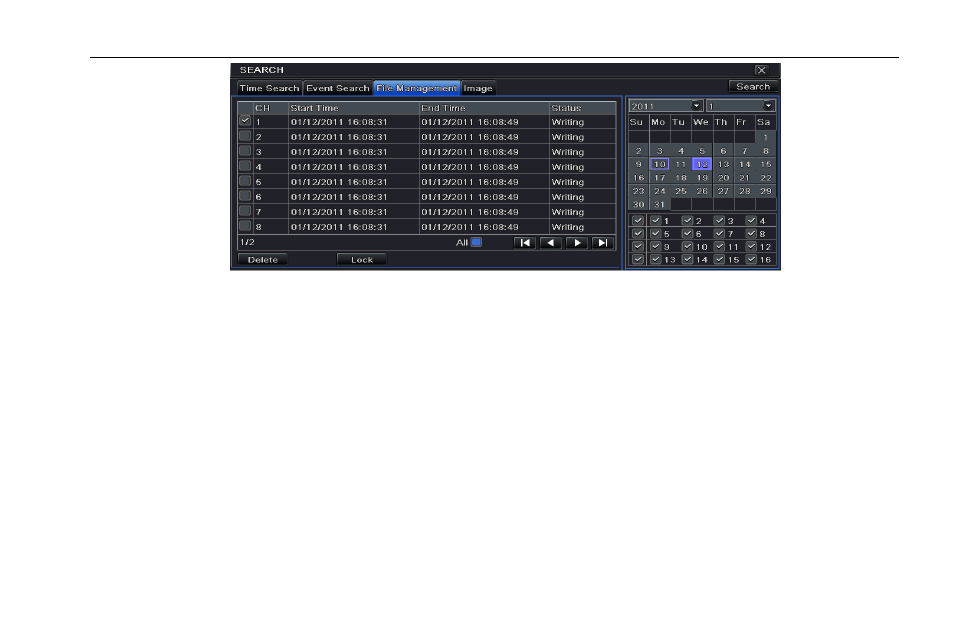

Fig 5-3 Search Configuration-File Management
5.4 Search By Image
Step 1: Enter into MenuSearchImage tab.
Step 2: Select data and channels on the right hand side.
Step 3: Press “Search” button to search for a recorded image.
Step 4: Once an alarm image has been identified, the user can double click the image to play the recording.
You can lock the image by clicking “Lock” button. Click “Save” button to copy the image on the HDD. Click “Save All” to copy all
images on the HDD.
Note: In order to take images on alarm, the snapshot feature should be activated in “Alarm Handling” for different kind of alarms. Please
refer to 4.5 Alarm Configuration for details.
5.5 Backup
This unit supports backup by USB Flash. User also can make backup by IE browser via internet. Refer to 7.3.2 Remote backup.
Step1: Enter into MenuBackup tab. Refer to Fig 5-4:
