Digital Video Recorder User Manual
7
Item
Name
Description
14
Spot out
Connect to monitor as an AUX output channel by channel. Video would be displayed without OSD.

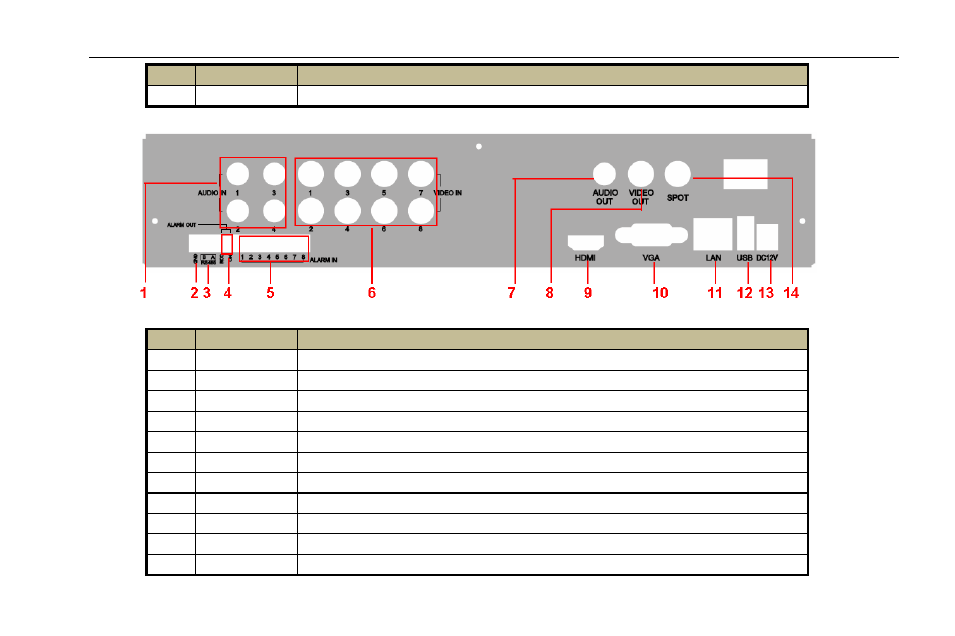

Fig 2-4 Rear Panel for 8-ch
Item
Name
Description
1
Audio in
4 CH Audio input
2
GND
Grounding
3
RS485
Connect to speed dome or keyboard
4
ALARM OUT
1-ch relay output. Connect to external alarm
5
ALARM IN
Connect to external sensor 1-8
6
Video in
Video input channels from 1-8
7
Audio out
Audio output, connect to the sound box
8
Video out
Connect to monitor
9
HDMI port
Connect to high-definition display device
10
VGA port
VGA output, connect to monitor
11
LAN
Network port
