Advance settings are as follows:
Step 1: Enter into MenuSetup P.T.Z Advanced tab. Refer to Fig 4-38:
Step 2: In the Advanced tab, click preset “Setting” button to see a dialog box as Fig 4-39:

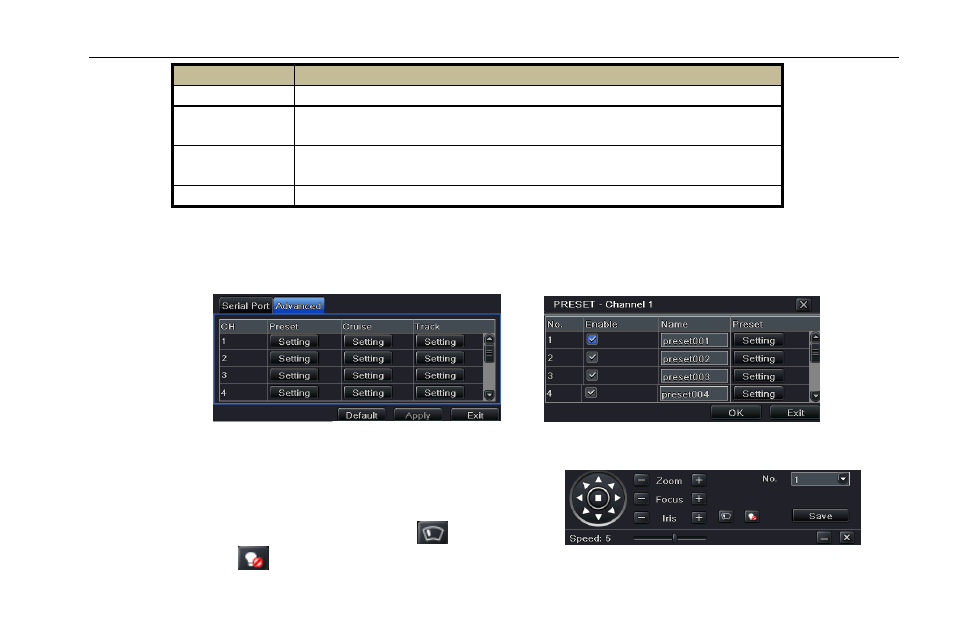

Fig 4-38 P.T.Z Configuration-Advanced Fig 4-39 Advanced-Preset Setting
Step 3: In the preset setting tab, while clicking Setting button, a dialog will pop-up as Fig 4-40:
User can control the dome by rotating up, down, left, right and adjust the
rotating speed zoom, focus and iris of the dome;
Select the serial number of the preset point. Click
button to enable
the PTZ wiper and click
button to enable the PTZ light.
Fig 4-40 Preset Setting-Setting
Parameter
Meaning
Address
The address of the PTZ device
Baud rate
Baud rate of the PTZ device. Range form: 110, 300, 600, 1200, 2400, 4800, 9600, 19200, 34800,
57600, 115200, 230400, 460800, 921600.
Protocol
Communication protocol of the PTZ device. Range from: NULL, PELCOP, PELCOD, LILIN,
MINKING, NEON, STAR, VIDO, DSCP, VISCA, SAMSUNG, RM110, HY, N-control.
Simulative Cruise
If enabled, no matter whether the PTZ device supports cruise or not, the presets will cruise.
