Digital Video Recorder User Manual
18

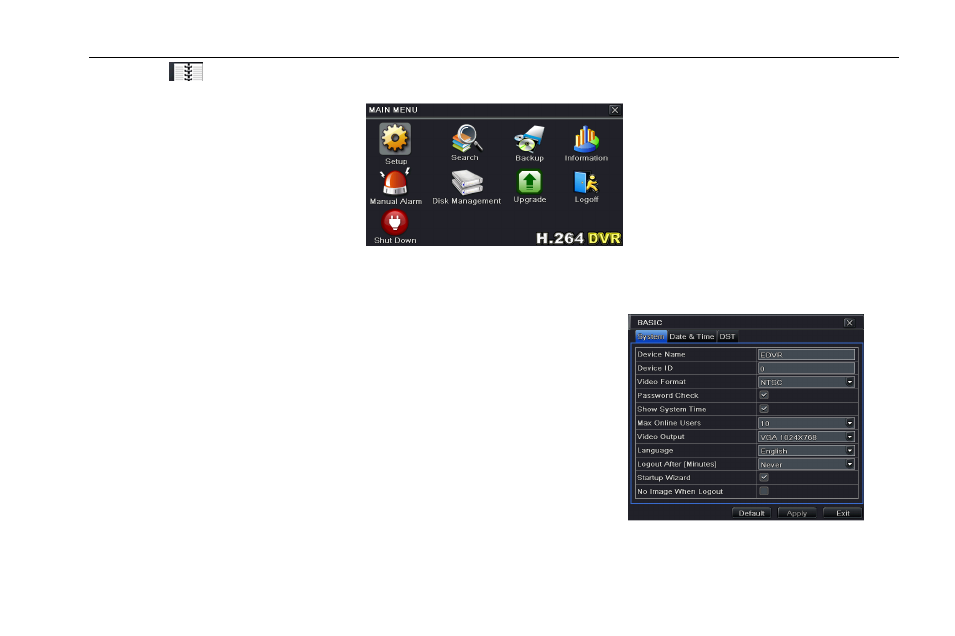

Click Menu button to pop up a window as Fig 4-2; You can also press MENU button on the front panel or operate with remote
controller to display the main menu. Clicking Setup icon will pop up the configuration menu:
Fig 4-2 Main Menu
4.1 Basic Configuration
Basic configuration includes three sub menus: system, date & time and DST.
4.1.1 System
Step1: Enter into MenuSetupBasicSystem tab ( please refer to Fig 4-3).
Step2: In this tab user can setup the device name, device ID, video format, max network
users, VGA resolution and language. The definitions for every parameters display as
below:
Device name: The name of the device as it may display on the client end or CMS, this
would help users to recognize the device remotely.
Device ID: This ID is used to map the DVR with IR remote controller and speed dome
cameras.
Video format: Two modes: PAL and NTSC. User can select the video format according
to that of camera.
Fig 4-3 Basic Configuration-Basic
Password check: If this option is enabled, the user would need to input the user name and the password for performing corresponding
operations.
