NVMS-5000 User manual
41

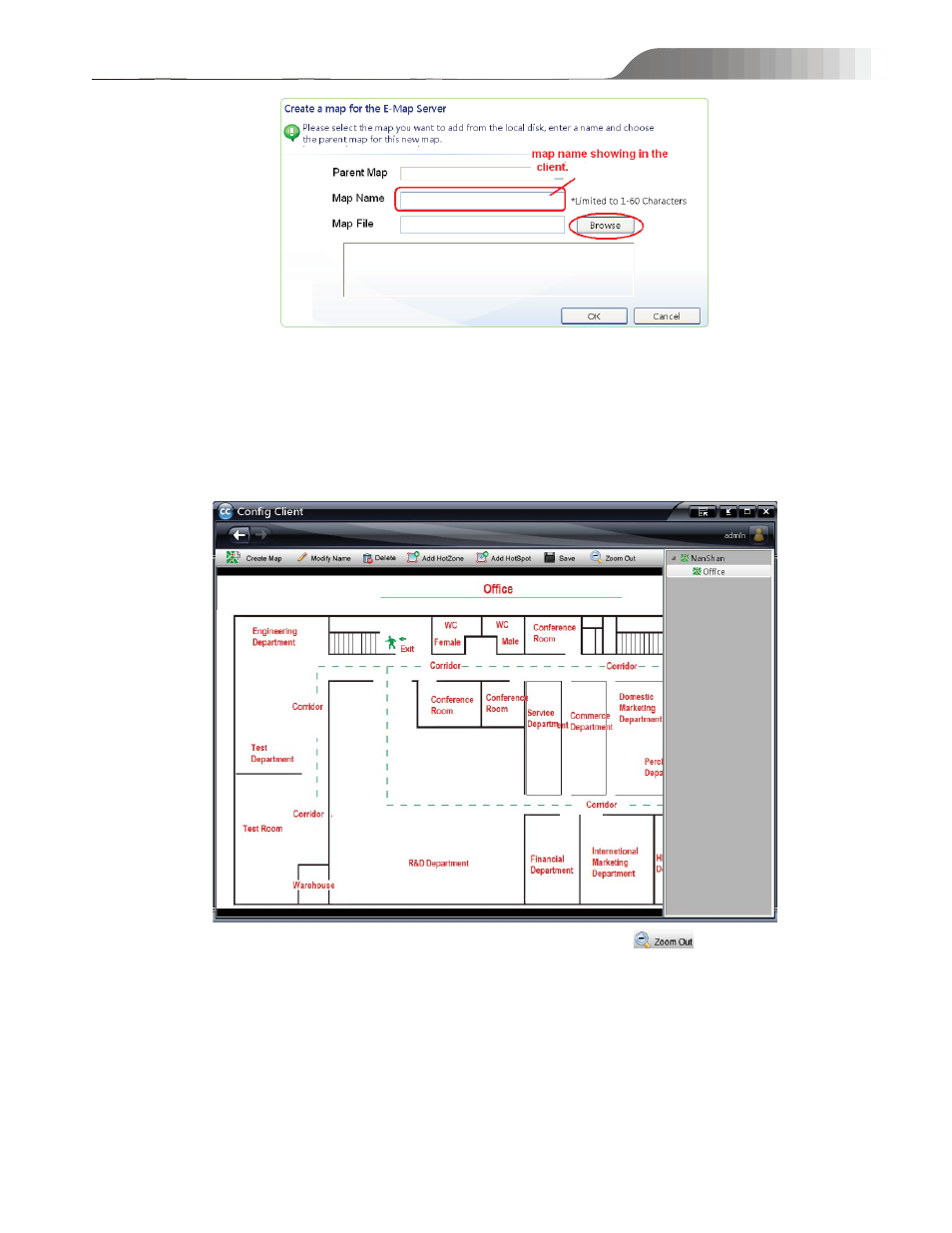

Input the map name, click ‘Browse’ button to find the map you want to add, double click the map file and click
‘OK’ to save settings.
4.9.3 Modify Map & Add Hotspot and Hotzone
Enter into the Configuration Panel Home
Æ Device and Server Æ EMap server interface and click ‘Modify Map
and Add HotSpot and HotZone’ button.
Click the map display area, scroll the mouse wheel to zoom in the map and click button to zoom out the
map.
z Modify Map
Select the map name on the right hand and click ‘Modify Name’ on the menu bar to modify the map name.
z Add HotZone
If there are multiple maps to manage, you will needs to use this function. Because you can quickly switch maps
from one to another through clicking hotzone icon after you add the hotzone. It’s much convenient for users to
browse the map. The steps are as below:
Step 1: Select the map name on the right hand and click ‘Add HotZone’ button on the menu bar. Then a dialog
