NVMS-5000 User manual
20

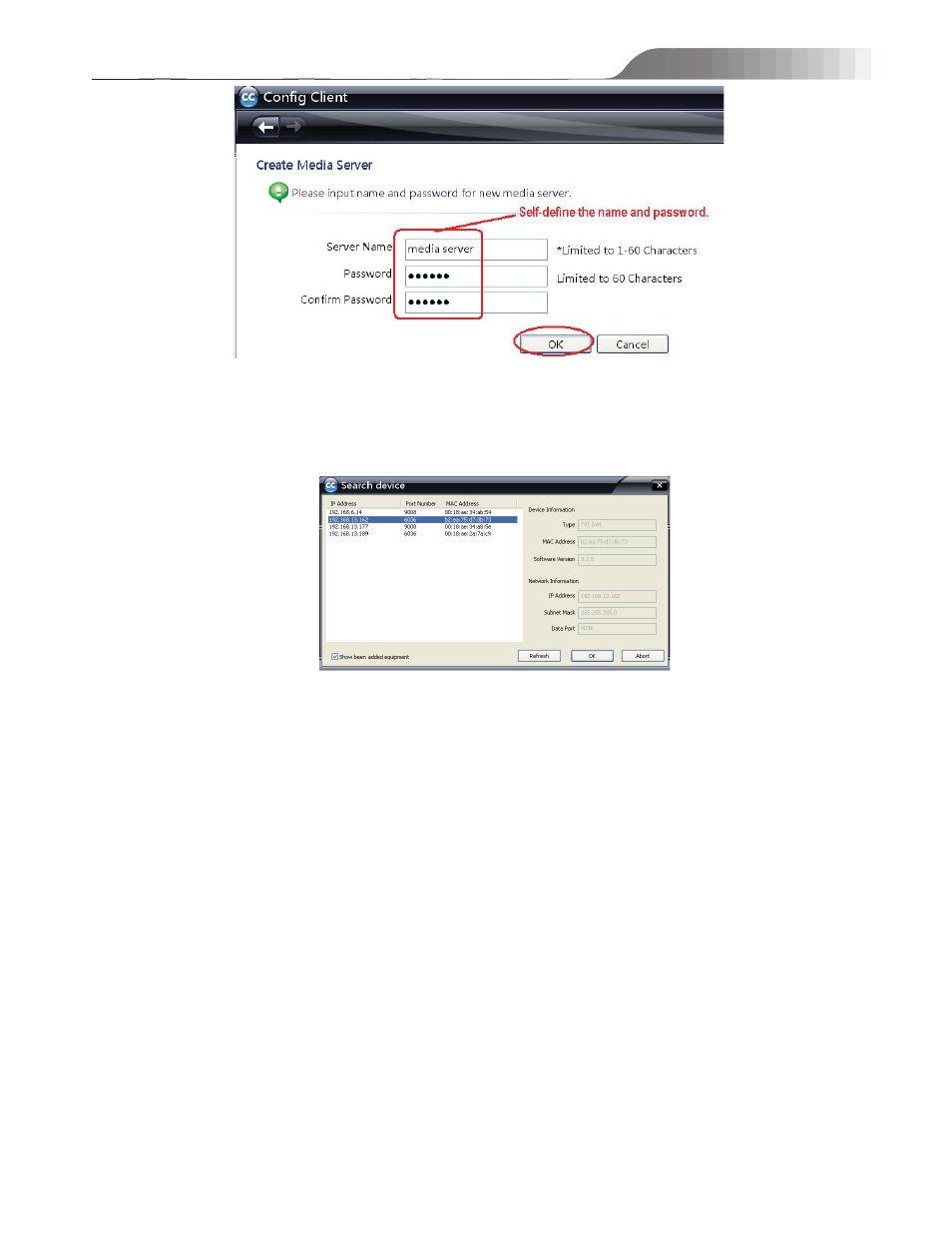

After you create the media server, please return to the device creation interface to select a media server and then
click ‘Create Device’ button to add the device.
z Search Online Device
In device creation interface, a device list will pop up by clicking “Search Device” button.
The device IP address, port and MAC address automatically on the same network area will list on the Search
Device window. You can double click the IP address which is on the same network segment as the authentication
server’s. The device type, stream mode, IP address and port will be added automatically. Then you just need to
select area and input device name, username and password. The channel count, sensor count and alarm out count
will be automatically filled by clicking “Auto Fill” button.
z Auto Report
In device creation interface, select device type and checkmark “Auto report” as shown below.
