COP-USA NVMS 5000 - Manual (Page 37)

NVMS-5000 User manual
37

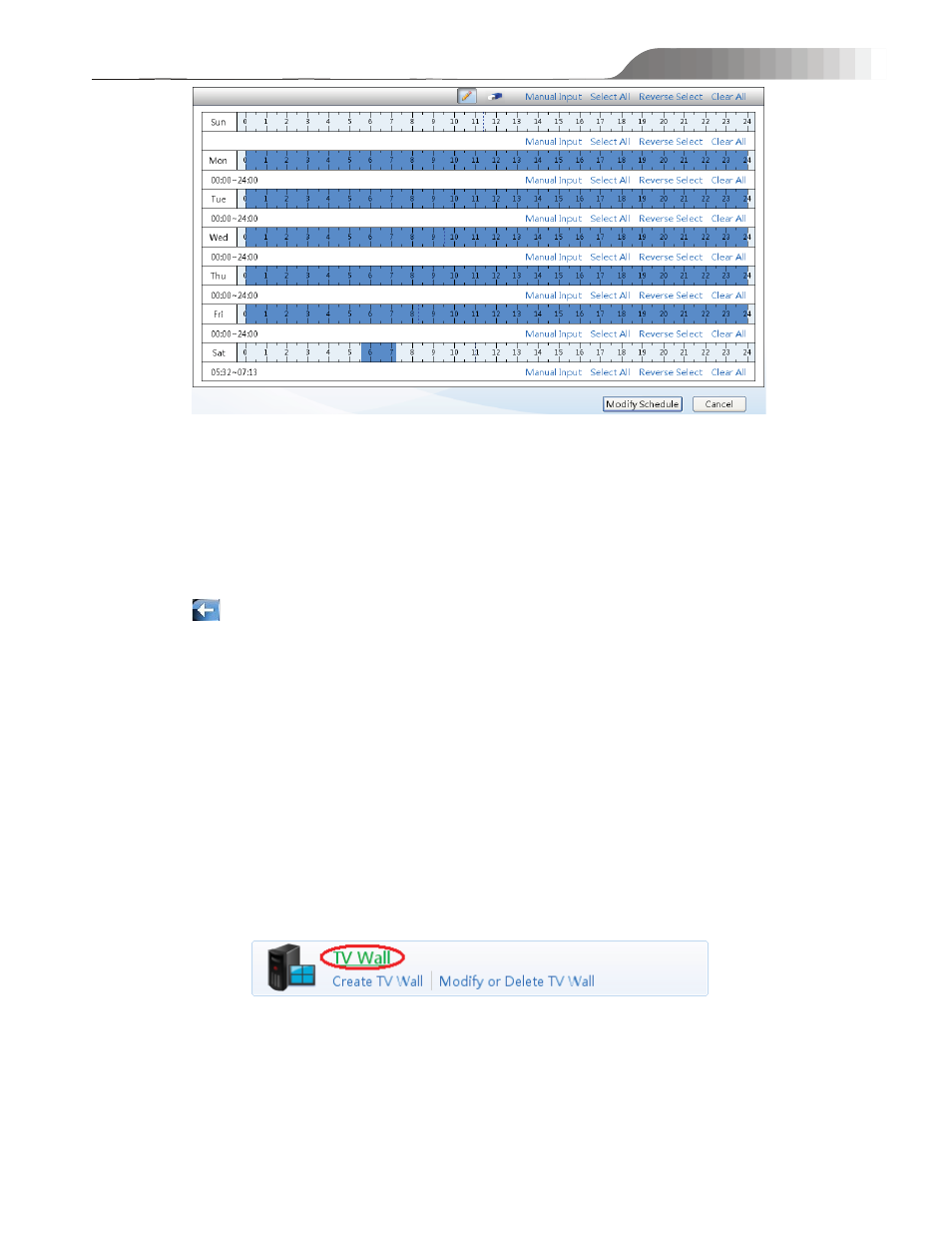

2) Delete Schedule
Enter into the schedule configuration interface. Select the schedule you want to delete and then click ‘Delete’
button.
4.7.3 Set Shedule for All Applications
Click icon to return to Device and Server configuration interface. Click ‘Set Schedule for All Applications’
button to set record schedule, motion alarm schedule and sensor alarm schedule.
4.8 TV Wall Server Settings
TV Wall Server is in charge of decoding the video signal sent by media server and display images on the TV wall.
However, decoding the video signal and displaying images on the TV Wall must install decoding card in the PC.
4.8.1 Create TV Wall Server
Start Authentication Server and Config Client and then enter into Configuration Panel Home
Æ Device and
Server
Æ TV Wall Server interface.
Click ‘TV Wall” to enter into TV Wall Server configuration interface. Click ‘Add TV Wall Server’ button.
