3 Control Buttons, Keypad and Display

11

3 Control Buttons, Keypad and Display

3.1

Interactive Controls

3.1.1

Control Buttons

There are four Control buttons (

Table 3

and

Figure 10

) on the front of the instrument:

Table 3. Control Buttons on NucleoCounter SP-100

On/Off

Use this button to turn the instrument on and off

Run

Use this button to start measuring

Esc

Use this button only as instructed in this manual

Del

Use this button only as instructed in this manual

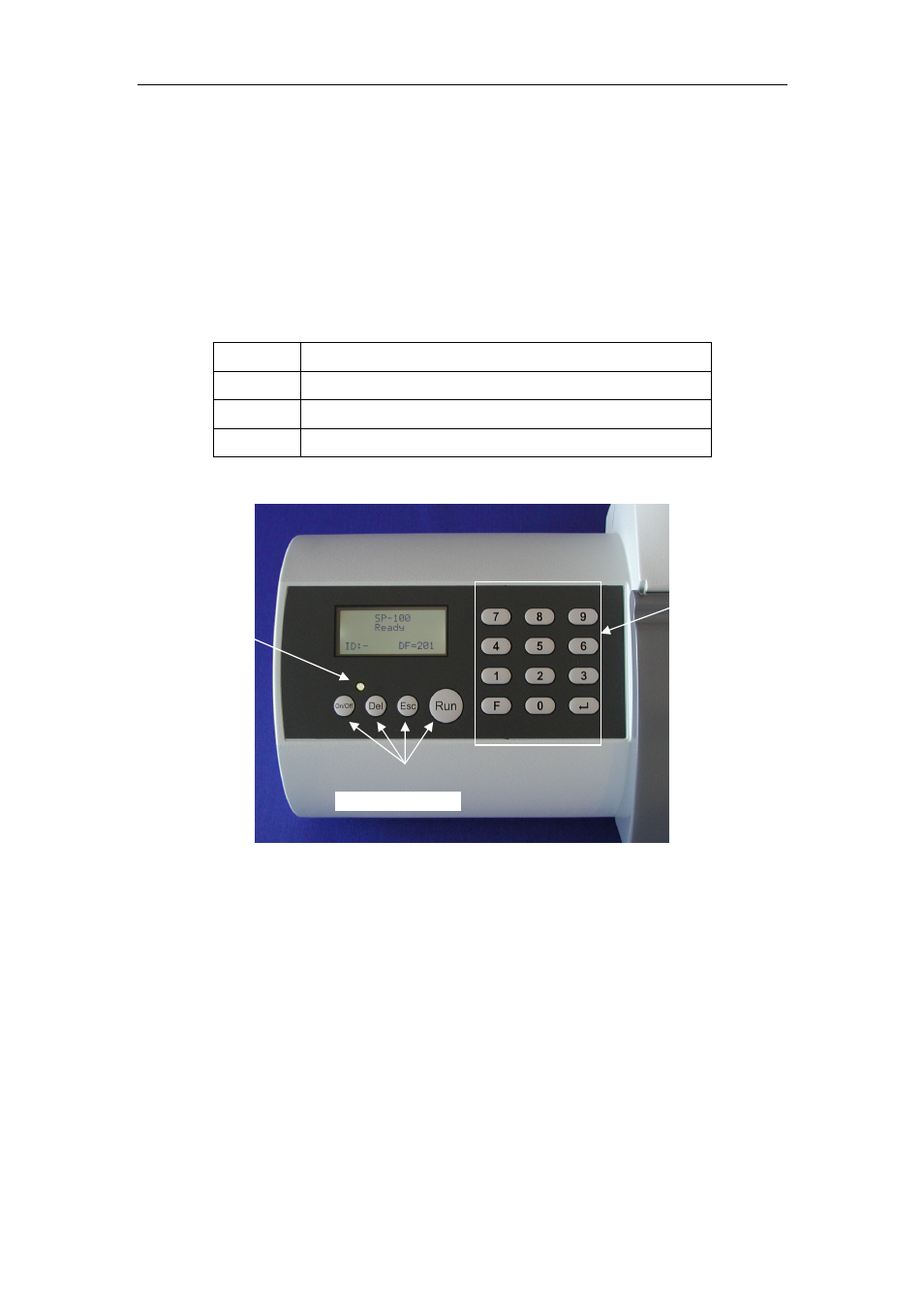

Figure 10. Control Buttons, Keypad and Status Indicator of NucleoCounter SP-100

instrument

3.1.2

Keypad

The Keypad is comprised of 12 keys (see

Figure 10

): “

0-9”, “F” (function key) and “

(Enter). The keypad is used for typing Sample ID, choosing Dilution Factor, language etc.

3.2

Interface Displays

A small Status Indicator light above the “

On/Off” button (see

Figure 10

) illuminates

when the unit is turned on. It is green when the instrument is ready to work or when

Control Buttons

Status Indicator

Keypad
