1 Basics of the SP-100 system
4

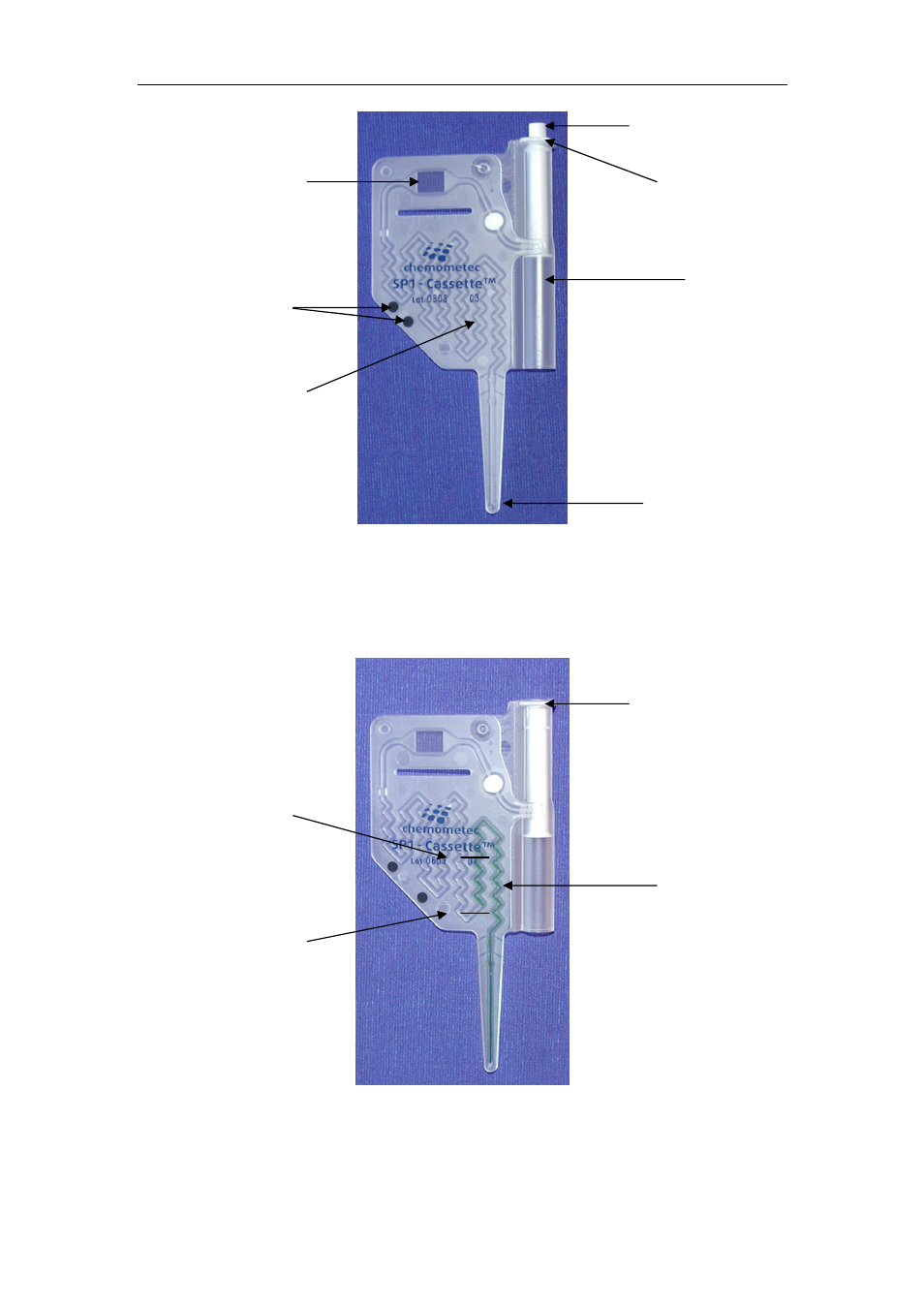

Figure 5. Ready-to-use SP1-Cassette. The PI is immobilized in the first three lanes of
the flow system.
Figure 6. Loaded SP1-Cassette. The lyzate mixture is loaded into the second lane of
the cassette, between the minimum and the maximum loading level.
Loading Piston
is pressed down
to level of Finger
Grips
Lysate Mixture
loaded into the
Cassette
Minimum
loading level
Maximum
loading level
Loading Piston
Barrel
Sampling Tip
Dot Code for
volume correction
Measurement
Chamber/Window
Flow System with
mixing lanes and
immobilized dye
Finger Grips
