Properties data set, 7 properties data set – BUCHI NIRCal User Manual
Page 82

NIRCal 5.5 Software Manual
82
NIRCal 5.5 Manual, Version A
3.3.7 Properties Data Set
In qualitative methods the calibration properties are the substances that are required to be identified in
the application.
In cluster calibration the mathematical algorithm of PCA will be applied for the selected properties.
Normally all qualitative properties are used in the calibration.
In quantitative methods the calibration property (single property calibration) is the selected parameter
which should be predicted.

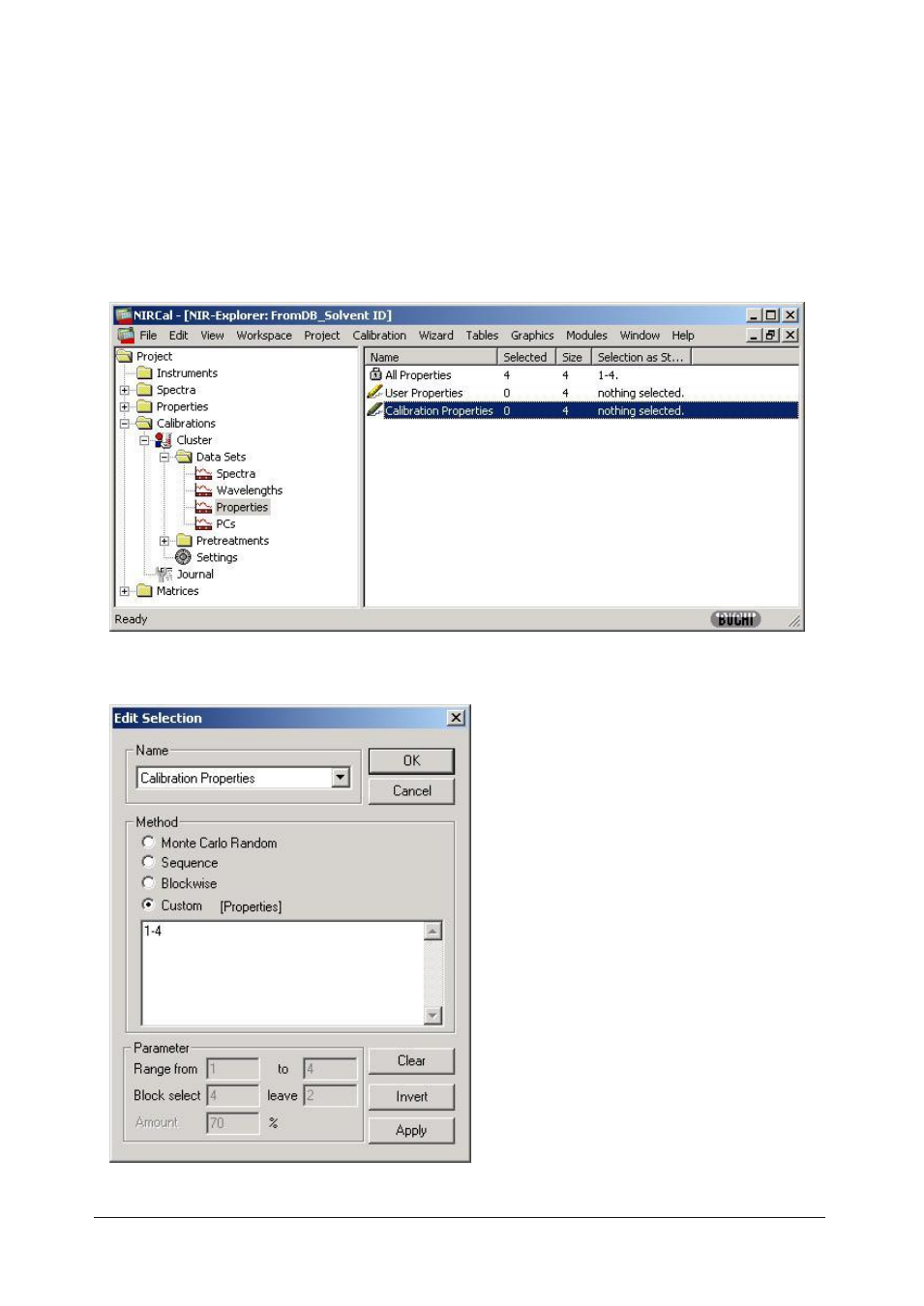

Selecting the Calibration Properties in the NIR-Explorer
To make the selection use the NIR-Explorer: double click "Calibration Properties" and the Edit
selection dialog appears.
Steps sequence:
1. Select Custom;
2. Type in the selection;
3. Click on OK.
