NIRCal 5.5 Software Manual
214 NIRCal 5.5 Manual, Version A
NOTE

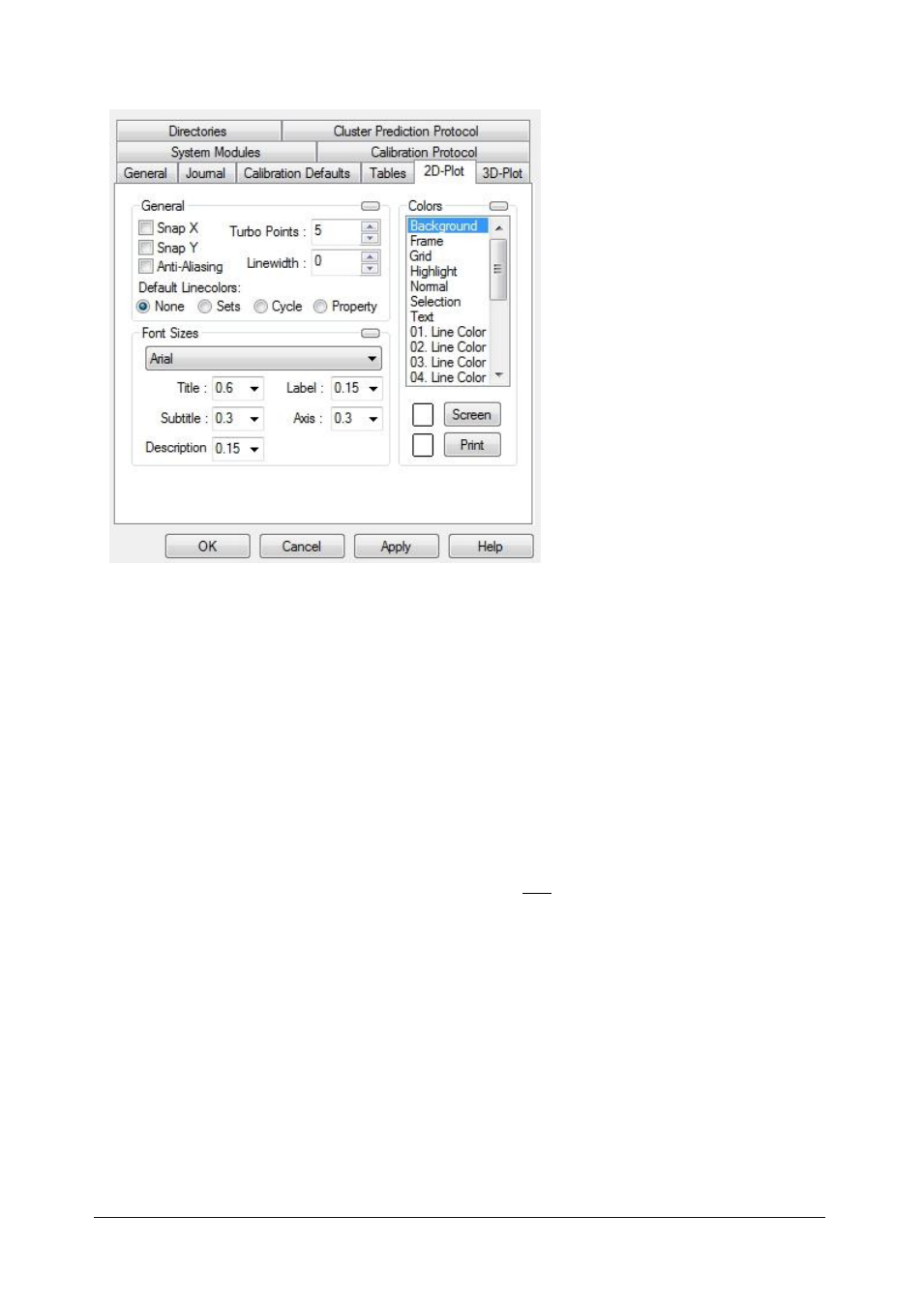

The small buttons on the top right of a frame resets the all values of the frame to default setting.
General
Snap X
Snaps the zooming so that there is always a value at the beginning and at
the end of the x-axis, default OFF.
Snap Y Snaps the zooming so that there is always a value at the beginning and at
the end of the y-axis, default OFF.
Anti-Aliasing The new graphic feature for plots, default: off.
Turbo Points Defines the step width of point for displaying a spectrum in an 2D-Plot. Use
this to speed up the display operation for your 2D-Plots, default 5. To switch
a Graphic into Turbo Mode choose Options / Turbo Mode.
Linewidth Defines the width of the lines use for displaying or printing spectra/vectors in
the 2D-Line-Plot.
Recommendation: Change the value only for printing spectra (e.g. to 5) with
thicker lines. Afterwards reset the values to 0 (zero). Otherwise the display of
graphs slows down considerably.
Default Linecolors
None Disables displaying 2D-Line-Plots using different colors.
Default Linecolors
Sets Enables displaying 2D-plots using different colors for C- and V-Set selection.
Default Linecolors
Cycle Enables displaying 2D-plots using all possible different line colors cycling
around the spectra.
Default Linecolors
Property Enables displaying 2D-plots using different colors for different properties.
Suggested default Line Colors:

Select Property for qualitative calibrations or

Select Sets for quantitative calibrations. (02 Line: C-Set, 03 Line: V-Set)
