6 .5 Menu functions of the lower touch screen
Syringe pump (pump speed and calibration) and magnetic stirrer are controlled on the lower touch
screen. When the Encapsulator is switched on, the touch screen runs an initialization program for few
seconds. Then the screen shows the start menu with two sub-parts (see figure 6-7 to 6-10).
1 2
5 7 6
4 3
8

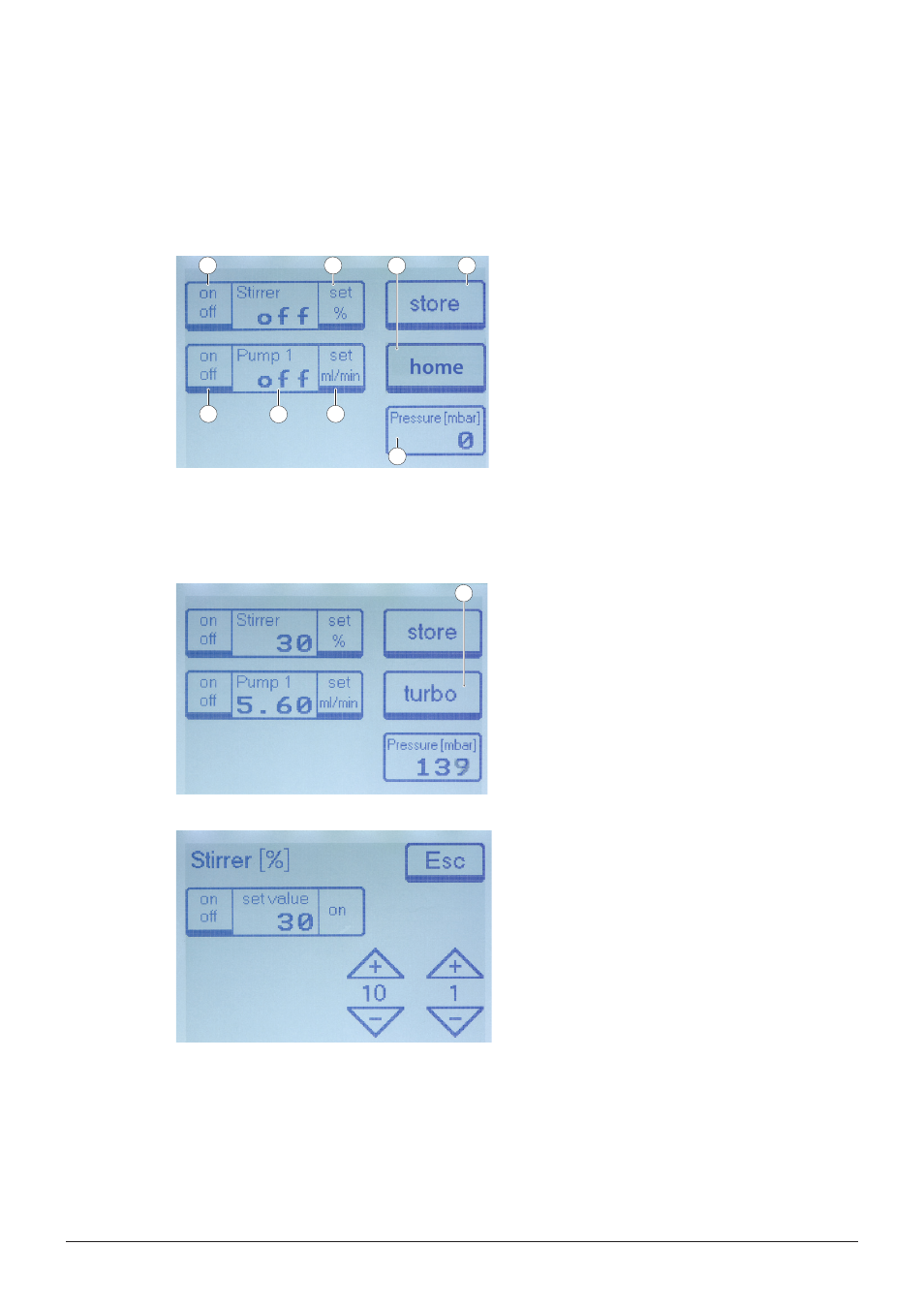

Screen 6-7: Start menu of the lower touch screen
a On/off switch for magnetic stirrer control.
 Button for passing to screen 6-9 for setting magnetic
stirrer speed .
 Button for sending back syringe pump arm.
This button is only visible, if the arm is not already in
the “home-position”. When the pump is advancing,
then this button becomes the “turbo”-button, see
screen 6-8.
 Button for storing set values: press twice within one
second. A sound indicates that the values are stored.
 On/off Switch for syringe pump control.
 Indication of control parameter and status of control
(value or off).
 Button for passing to screen 6-10 for setting syringe
pump parameters.
 Indication of the pressure value at the air outlet from 0
to 1000 mbar.
9
 Pressing the "turbo" button will double the current
pumping rate.
Screen 6-8: Lower touch screen with turbo button
Pressing on the (+) and (–) buttons will change the stirrer
speed. Pressing “Esc” will return you to the start menu
and the set value will be kept.
NOTE
The values are arbitrary values but reproducible and do
not correspond to rpm.
Screen 6-9: Speed regulation of the magnetic stirrer
