5 Putting into operation
26 B-395 Pro Operation Manual, Version C
5.4.1.4 Air filter
1
4 3 2
a HEPA Air filter
 O-Ring
3.68×1.78
 Nipple
 Silicon tube
5×8 mm

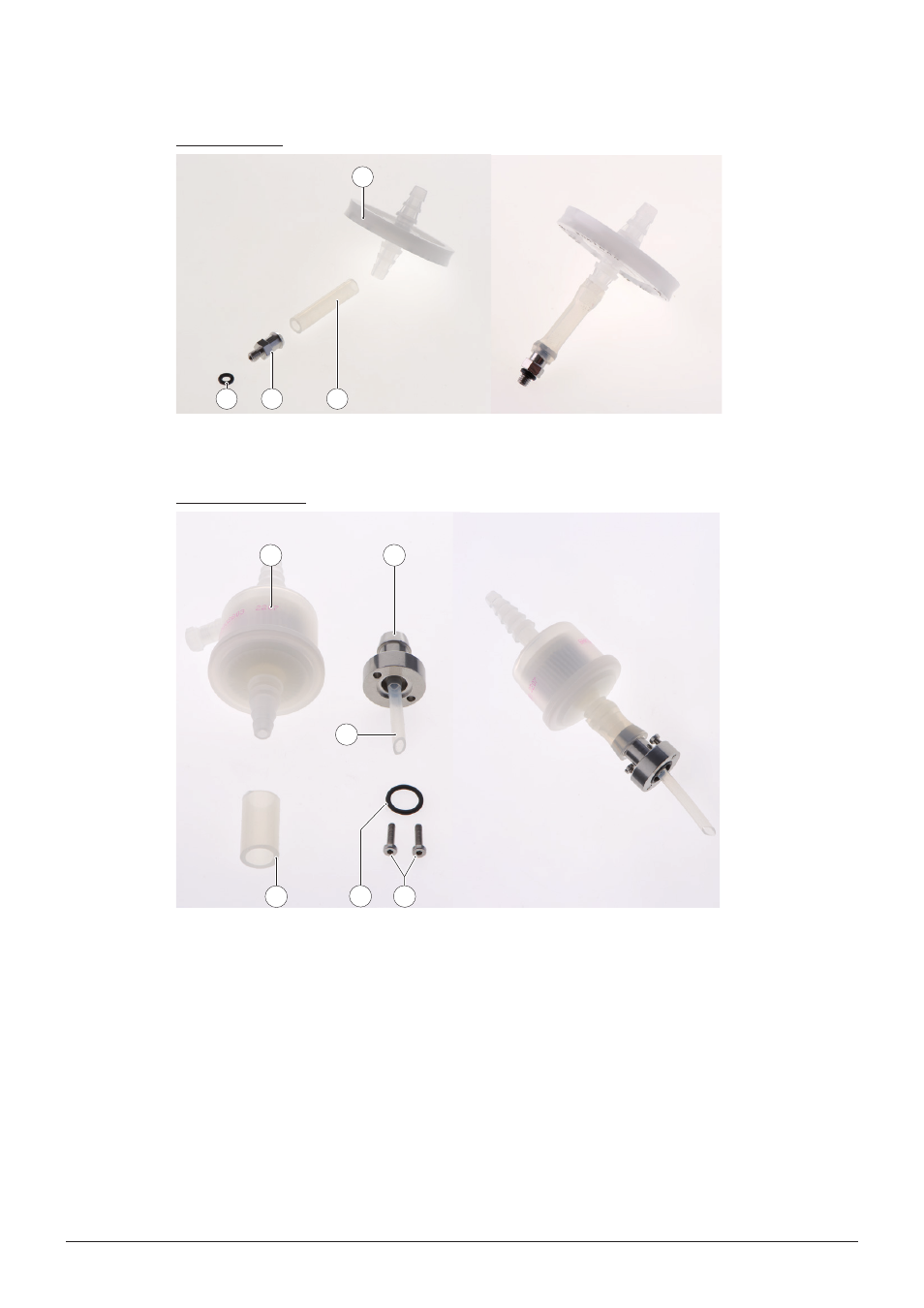

Figure 5-10: Airfilter - exploded view (left), assembled view (right)
5.4.1.5 Liquid filter
2
5 4 6
3
1
a Liquid filter (e.g.
Sartobran 150)
 Liquid inlet
 Silicon tube (3×5)
35 mm long
 Screw M3×12
 O-Ring
(10.82×1.78)
 Silicon tube
(10×14), 40 mm
long
Figure 5-11: Liquid filter - exploded view (left), assembled view (right)
