4 Description of function
17 B-395 Pro Operation Manual, Version C
5
7
6
8
2
1
16
17
18 19
12
11
13 14
15
10
9
4
3

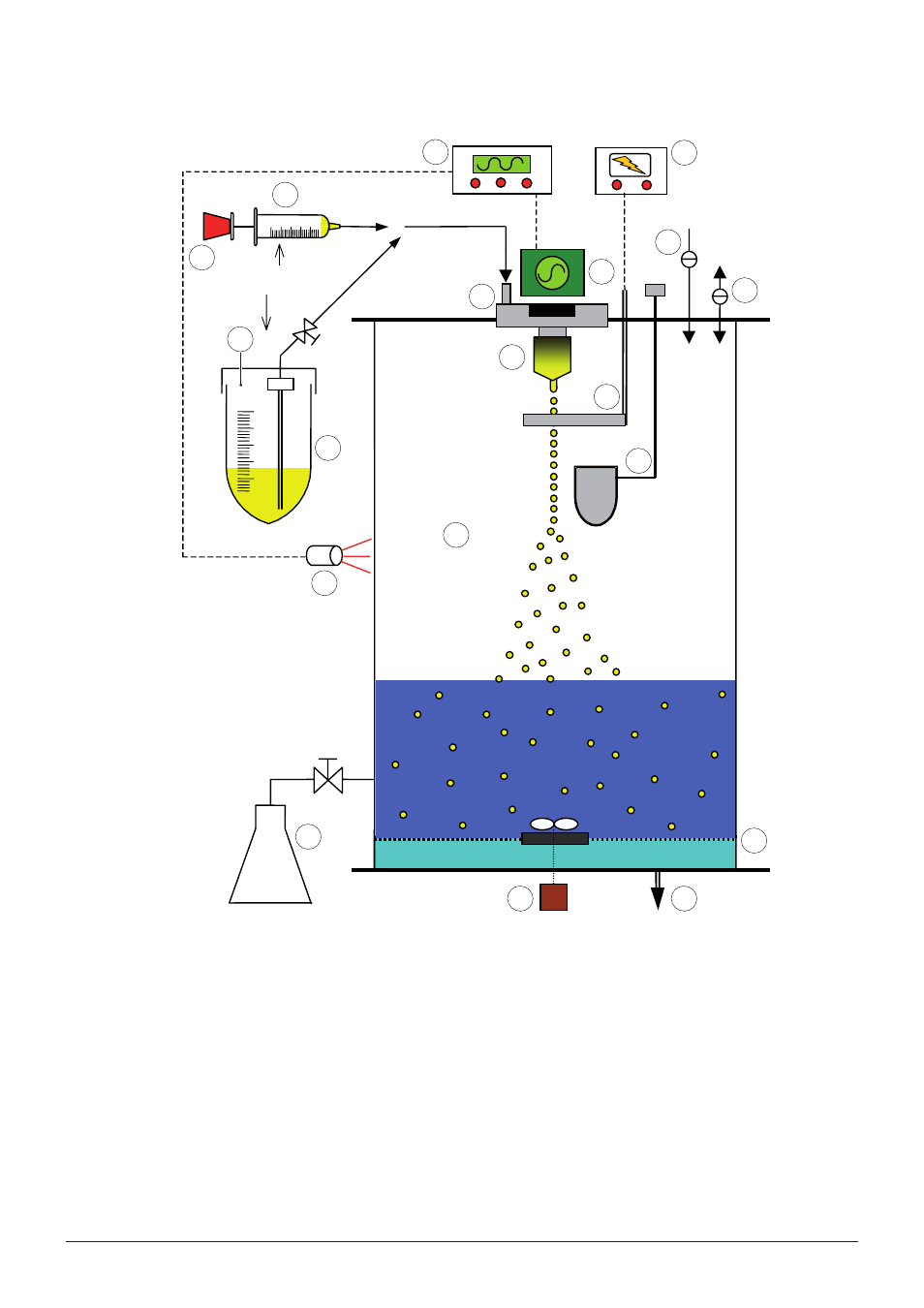

Figure 4-1: Schematic representation of the Encapsulator B-395 Pro
a Syringe pump
 Syringe
 Pressure bottle
 Air Pressure control
 Pulsation chamber
 Vibration system
 Nozzle
 Electrode
 Reaction vessel
 Bypass cup  Liquid filter
 Air filter
 Electrostatic charge generator
 Frequency generator
 Stroboscope lamp
 Filtration grid
 Bead collecting flask
 Magnetic stirrer
 Waste port
