5 Putting into operation
28
B-395 Pro
Operation Manual, Version C
5.4.2.1 Bead drain valve
1
2
5
6
7
4
3
a Plunger
O-Ring (5×1)
Knob for valve
Screw M3×6
Screw M3×20
Harvesting valve (BT 14)
O-Ring (18.77×1.78)

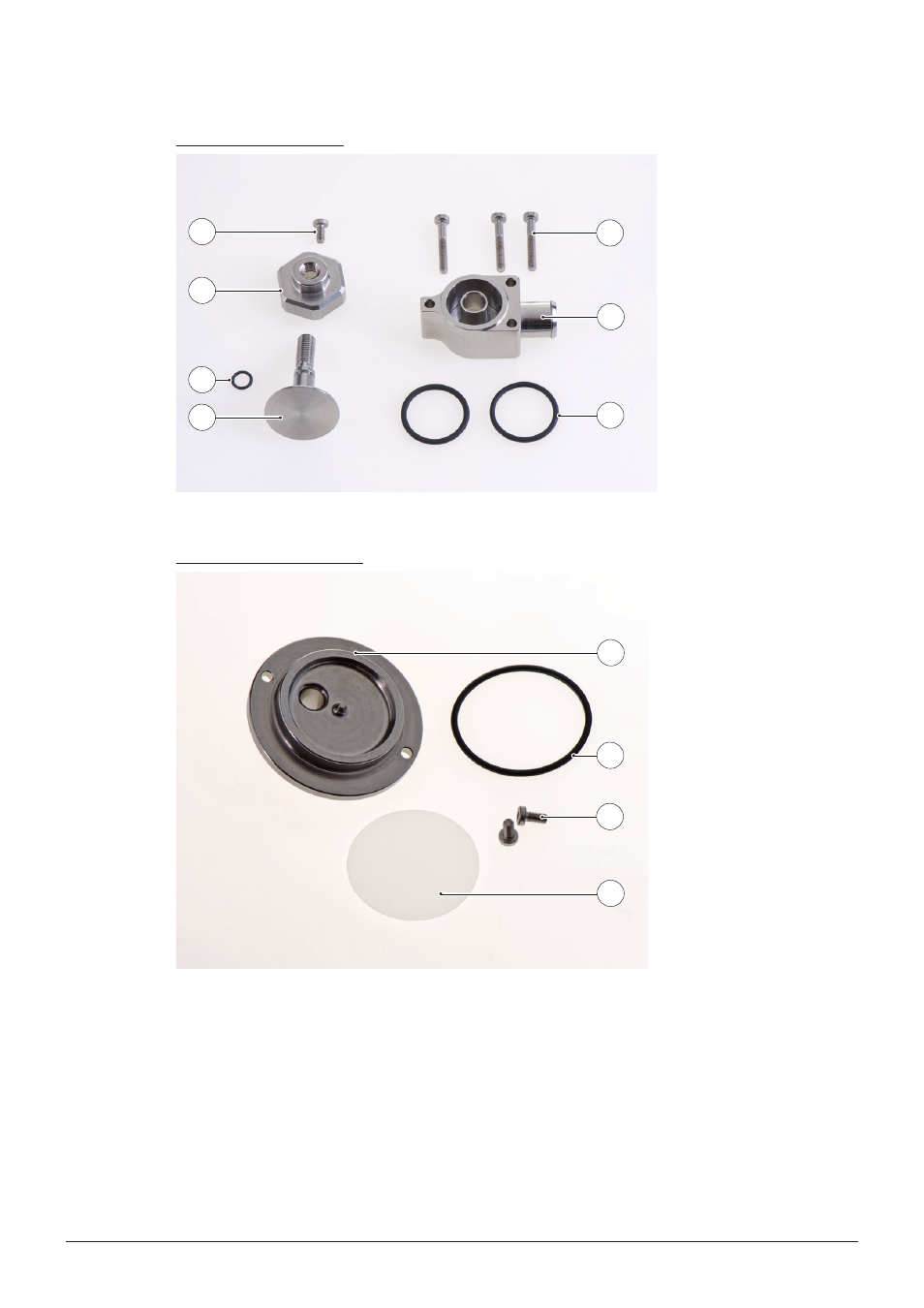

Figure 5-13: Parts of the bead drain valve
5.4.2.2 Liquid drain system
3
4
1
2
a Liquid drain plate
O-Ring (34.65×1.78)
Screw M3×6
Filter grid, diameter
35 mm, 100 µm mesh
Figure 5-14: Parts of the liquid drain system
NOTE
The filter grid shrinks 1 % to 2 % during the first autoclaving. Thereafter, its dimensions remain stable.
