5 Putting into operation
24 B-395 Pro Operation Manual, Version C
5.4.1.1 Bead producing unit and nozzles
5 6 4 1 3
9 8
2
7
a Magnet Holder *
 O-Ring (14×1.78)
 Pulsation chamber
 Pre-filter with 50 µm mesh
 O-Ring (3.68×1.78)
 Luer Lock
 Screw M3×8
 Screw M3×25
 Screw M3×6
*with attached fixation ring
and screws M3×5.
You can remove the fixation
ring for cleaning.
Do not remove either the
magnet or the glass fiber
reinforced PTFE mem-
branes!

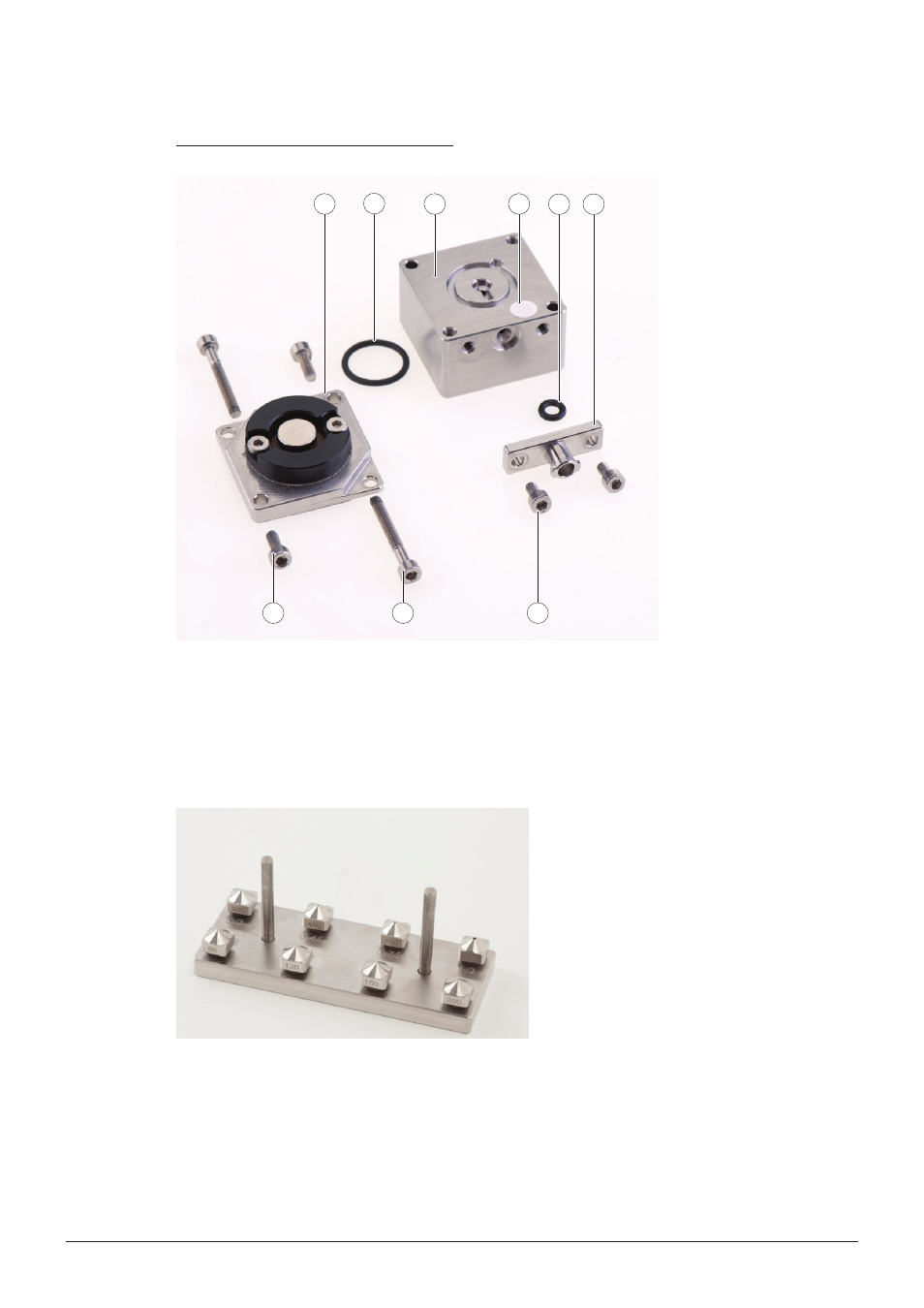

Figure 5-6: Parts of the bead production unit
A high quality nozzle is crucial for homogenous bead production. The holes of the Encapsulator
nozzles are precisely drilled using the newest technology. Every Encapsulator B-395 Pro is delivered
with a set of 8 nozzles; nozzle aperture sizes are 80, 120, 150, 200, 300, 450, 750 µm and 1.0 mm.
They are made completely of stainless steel.
Figure 5-7: Set of 8 nozzles on the nozzle rack
The nozzle rack contains 8 nozzles (80, 120, 150, 200, 300, 450, 750 µm, and 1.0 mm). The size of
the O-ring is 4.47Ч1.78.
