5 Putting into operation
35 B-395 Pro Operation Manual, Version C
5 .6 .1 Mounting of CN nozzles
1
2
Put the O-ring 12.42×1.78 in the grove of the CN
bead producing unit. Put the inner nozzle (with
attached O-ring) into the hole of the CN bead
producing unit. There is no thread. The inner
nozzle is centered and fixed by the shell nozzle.
a Exit of the shell liquid
 O-ring 12.42×1.78

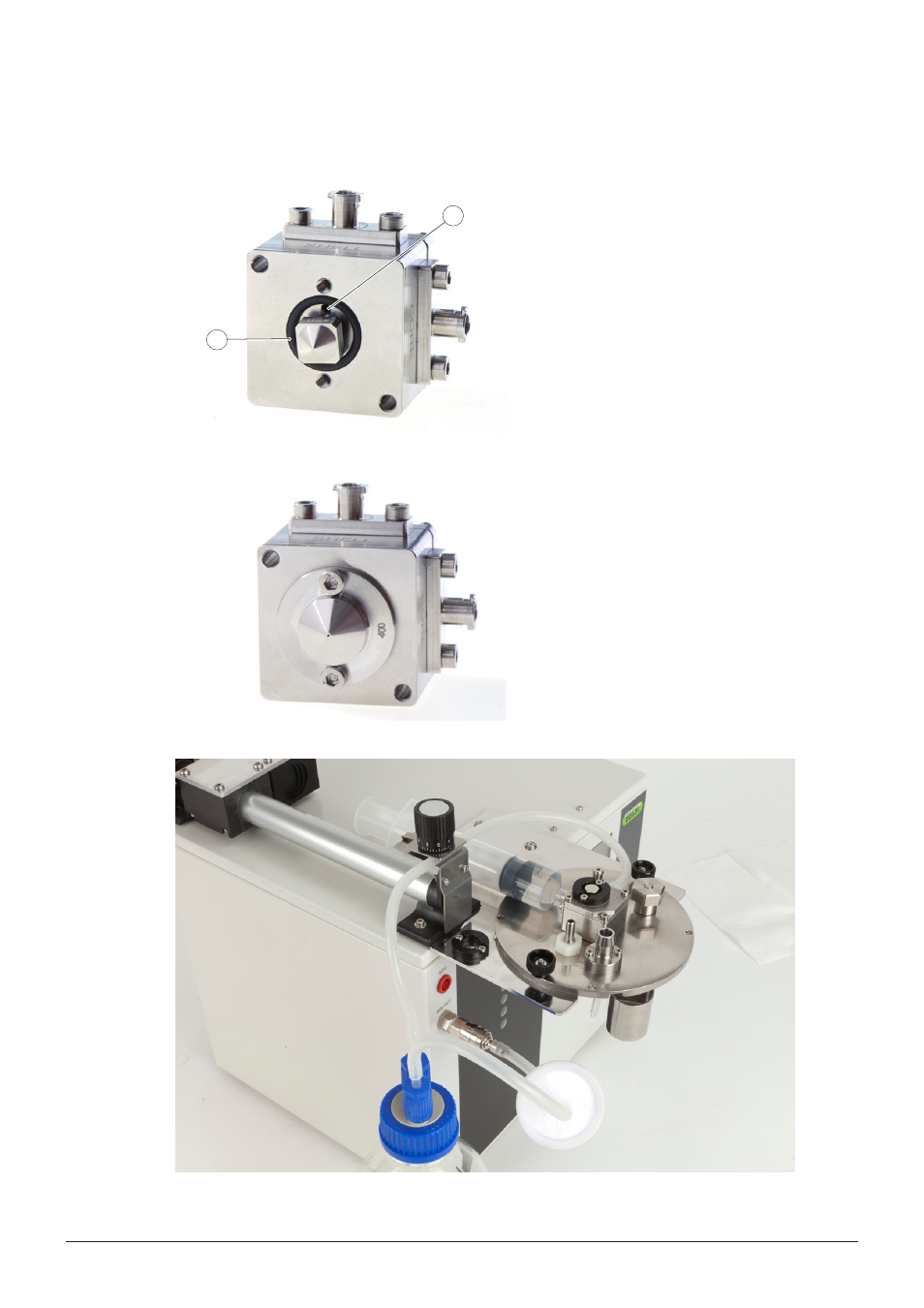

Figure 5-23: Mounting of the inner nozzle
Put carefully the shell nozzle over the inner
nozzle. Attach the shell nozzle with two screws
(M3×6). The shell nozzle centers and fixes the
inner nozzle.
Figure 5-24: Mounting of the shell nozzle
Figure 5-25: Installation of the CN system with one syringe pump and one pressure bottle
