5 .4 .2 Base plate
The base plate serves a dual function with two evacuation ports. One has a filter to retain the beads in
the reaction vessel while exchanging encapsulation reagents and the other is a drain valve to harvest
the beads without compromising sterility.
2
8
1
7
5
6
10
9
4
3
a Flat silicone fitting
 Bead drain valve
 Support bar
 O-Ring (6×2) for gap control
 Filter for liquid drain
 Front notch for alignment
 Liquid drain outlet
 Base plate
 Bead drain valve
 Foot

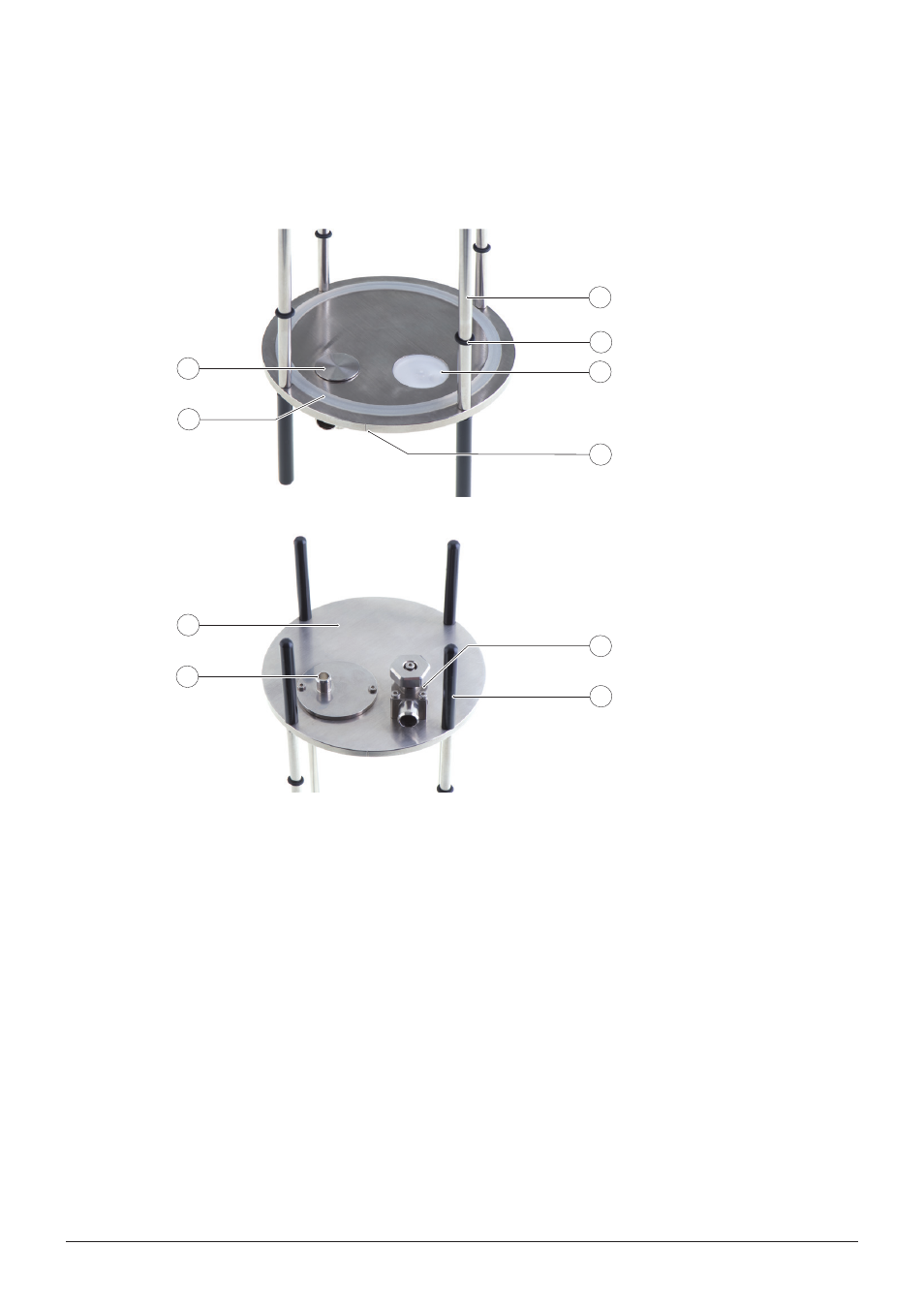

Figure 5-12: Base plate top view (above) and bottom view (below)
