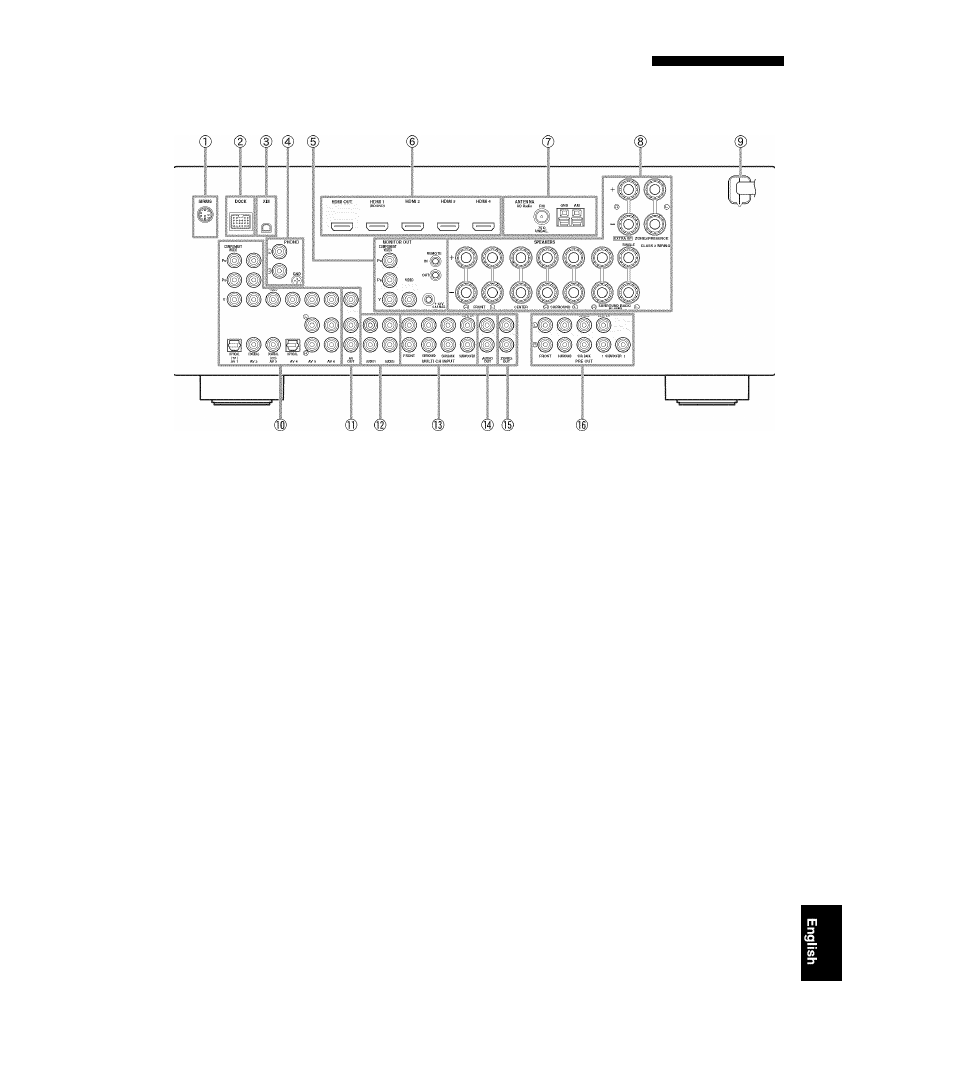

Part names and functions

® SIRIUS jack

For connecting a SiriusConnect tuner (sold separately)

(page 37).

DOCK terminal

For connecting an optional Yamaha iPod universal dock (YDS-

11) or Bluetooth wireless audio receiver (YBA-10) (page 17).

XM jack

For connecting XM Mini-Tuner in XM Mini-Tuner Home Dock
(sold separately) (page 33).

@ PHONO jacks

For connecting a turntable (page 15).

MONITOR OUT jacks

Outputs visual signals from this unit to a video monitor, such as
a TV (page 14).

REMOTE IN/OUT jacks

For connecting an external component that supports the remote
control function (page 17).

TRIGGER OUT jack

For connecting an external terminal with a trigger input terminal
to operate it linked with operation of this unit. For example,

when an electric screen that supports a trigger input is

connected, it opens and closes linked with operation of an input
source selected in this unit.

HDMI OUT/HDM11 -4 jacks

For connecting an HDMI-compatible video monitor or external
components for HDMI inputs I-4 (pages 14 and 15).

@ ANTENNA terminals

For connecting supplied FM and AM antennas (page 18).

d) SPEAKERS terminals

For connecting front, center, surround and surround back
speakers (page 11). Connect the presence speakers (page 11) or

the speakers for Zone2 (page 6l) to EXTRA SP terminals.

Power cable

Connect this cable to an AC wall outlet (page 18).

® AV 1-6 jacks

For connecting external components for audio/visual inputs 1-6

(page 15).

AV OUT jacks

Outputs audio/visual signals from a selected analog input source

to an external component (page 15).

AUDIO 1/2 jacks

For connecting external components for audio inputs I-2

(page 15).

MULTI CH INPUT jacks

For connecting a player that supports a multi-channel output
(page 16).

AUDIO OUT jacks

Outputs audio signals from a selected analog input source to an

external component (page 15).

Z0NE2 0UT jacks

Outputs sound of this unit to an external amplifier set in a

different zone (page 61).

PRE OUT jacks

Outputs multi-channel signals from up to 7.1 channels to an

external amplifier (page 16).
