Connections
This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are
connecting.

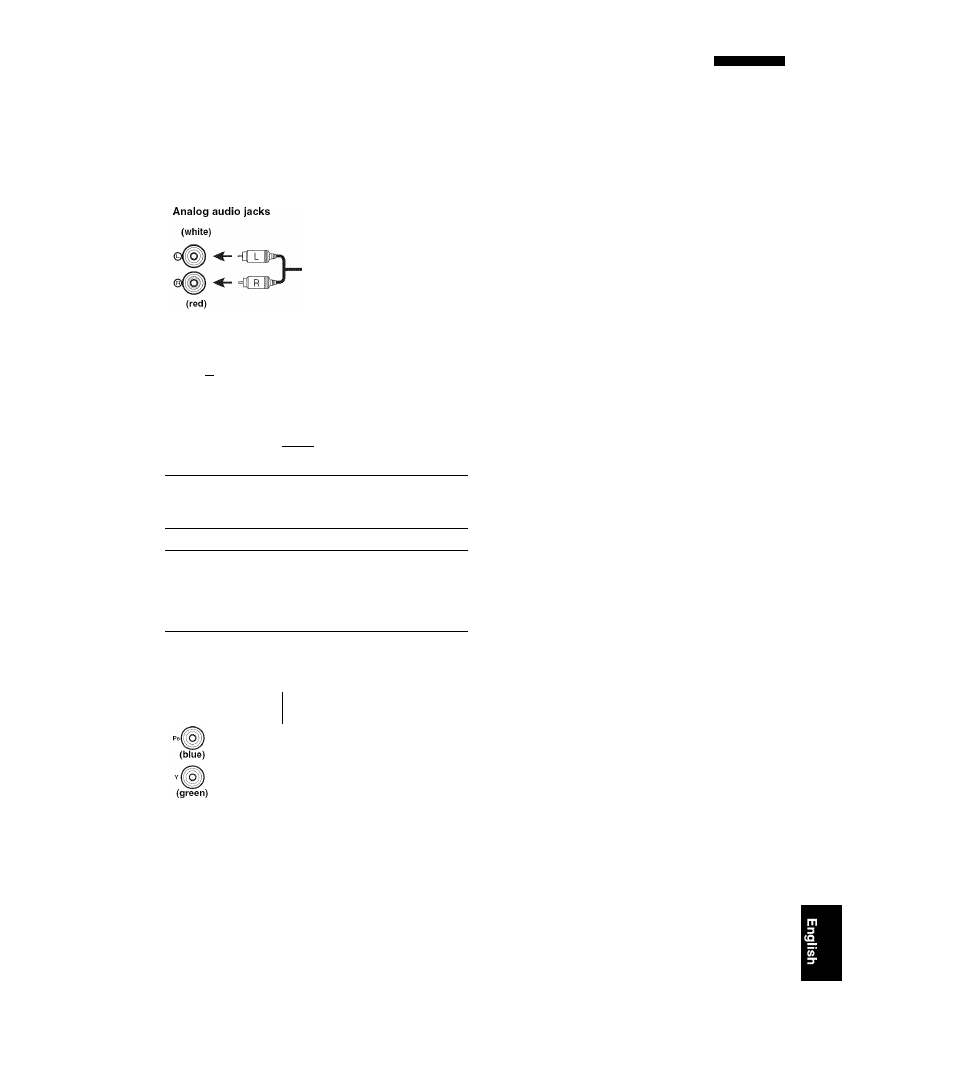

Audio jacks
Jack and cables
Description
To transmit conventional analog
stereo audio signals. Use stereo pin
cables. Connect red plugs to red
jacks (R) and white plugs to white
jacks (L).
COAXIAL jacks
(orange)
XO)))"^— -X] c III)»—
To transmit coaxial digital audio
signals. Use pin cables for digital
audio signals.
xlWb—
Video/audio jacks
Jack and cables
Description
HDMI jacks
To transmit digital video and
digital audio signals. Use HDMI
cables.
OPTICAL jacks
To transmit optical digital audio
_____
signals. Use optical fiber cables for
— {J Q||[)|iii»mBaaM optical digital audio signals.
■ Video jacks
Jack and cables
Description
VIDEO jacks
To transmit conventional
VIDEO
composite video signals. Use video
(yellow)
COMPONENT VIDEO
To transmit component video
jacks
signals that include luminance (Y),
COypONENT
chrominance blue (P
b
) and
chrominance red (PR) components.
P.|§| <-
-CtiP—
Use component video cables.
(red)
Wc recommend lhat you use a commercially available 19-pin HDMI
cable no longer than 5 meters (16 feel) with the HDMI logo printed on it.
Use a conversion cable (HDMI jack ^ DVI-D jack) to connect this unit
to other DVI components.
You can check the potential problem about the HDMI connection
(page 48).
This unit automatically converts input video signals and
outputs the signals to the HDMI OUT jack and
MONITOR OUT (COMPONENT VIDEO and
VIDEO) jacks (video conversion).
Input
Output
©
0
©
a.0
Through
- ■{> Converted
13 £n
