Connections
This unit has input and output terminals for respective input and output sources. You can reproduce sound and movies
from input sources selected with the front panel display or remote control.
Note
* Make sure lhal this unit and other components are unplugged from the AC wall outlets.

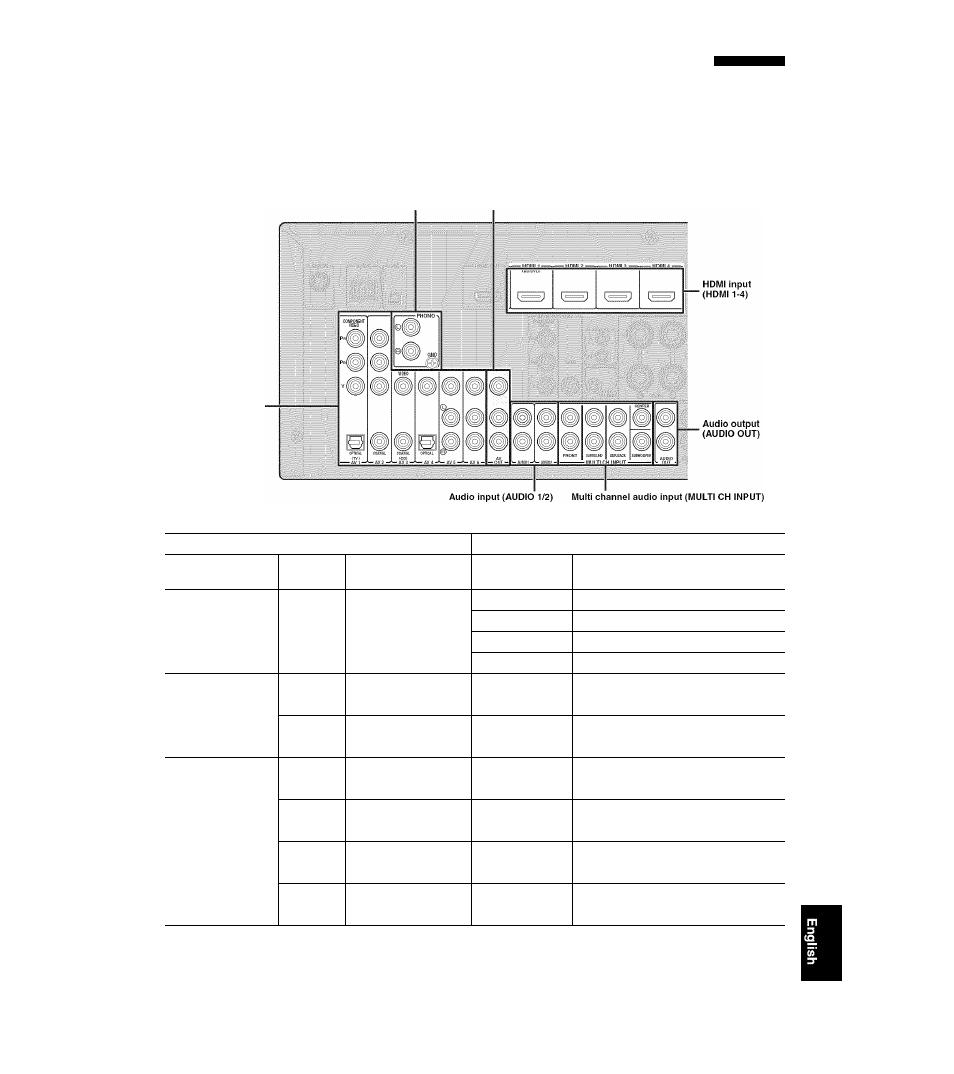

Audio input (PHONO) Audio / video output (AV OUT)
Audio/video input
(AV1-6)
Audio and video player / Set-top box
Output jacks on the connected external component Input sources/jacks of this unit
External
component
signal Output jack Input source Input jack
External component Audio/Video HDMI output HDMI I (BD/DVD) HDMI I
with HDMI output
HDMI 2 HDMI 2
HDMI 3 HDMI 3
HDMI 4 HDMI 4
External component Audio Optical digital output AV I (TV) OPTICAL
with component video
output
Video Component video COMPONENT VIDEO
Audio Coaxial digital output AV2 COAXIAL
Video Component video output COMPONENT VIDEO
External component Audio Coaxial digital output AV 3 (CD) COAXIAL
with composite video
output
Video Composite output VIDEO
Audio Optical digital output AV 4 OPTICAL
Video Composite output VIDEO
Audio Analog audio output AV 5 Analog audio
Video Composite output VIDEO
Audio Analog audio output AV 6 Analog audio
Video Composite output VIDEO
• Input sources in parentheses are recommended to connect to the respective jacks. If your Yamaha component has the remote in/out terminal, you can
switch the input source to that component with a single key operation using the SCENE function (page 22).
• You can change the name of the input source displayed on the front panel display as necessary (page 60).
• See page 61 on how to use the ZONE2 OUT jacks.
15 £n
