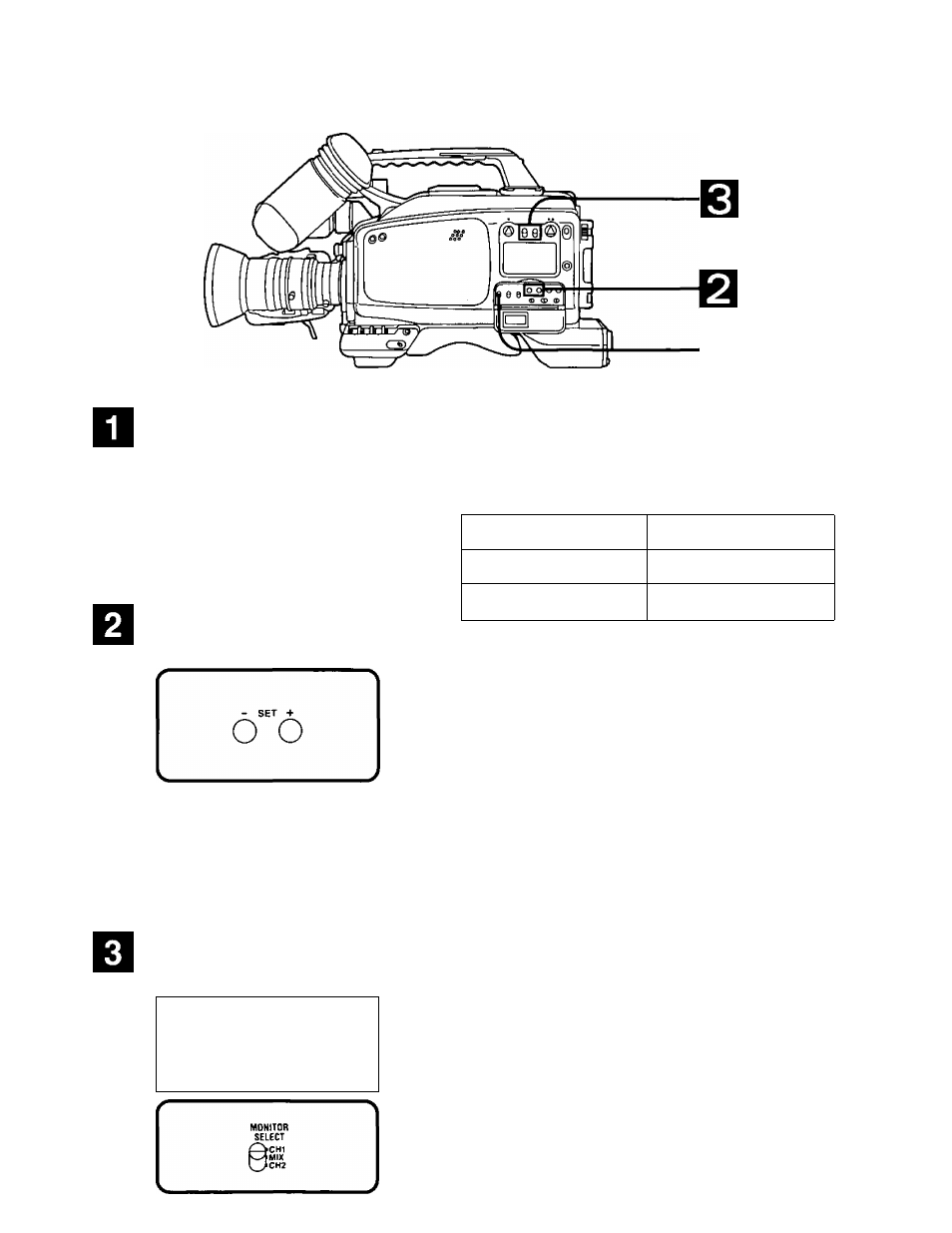

Automatic S-VHS/VHS identification and playback

Tracking

This camera recorder’s playback circuitry is designed to identify the
cassette’s recording system automatically.

Recording system

S-VHS display

S-VHS

VHS

Off

If noise should appear during playback, adjust the SET + and SET
- buttons until the picture is restored to normal.

• It may not be possible to eliminate the noise adequately on

a tape which was recorded on another VTR.

•The tracking adjustment remains effective until the tape is

ejected. (When the tape is ejected, the tracking value which

was set before the camera recorder was shipped from the

manufacturing plant is restored.)

•The tracking value which was set before the camera re

corder was shipped from the manufacturing plant can be
restored by pressing the SET

and SET - buttons simul

taneously.

AUDIO SELECT switch

AGC^^

-----\

LIMIT

r—1

OFF<^

l^NORM

AUDIO SELECT

This switch can be used to select normal audio or Hi-Fi audio for the

audio output signais.

The sound heard through the monitor speaker can be set to CH1,

MIX or CH2 by the audio monitor selector switch.
