Install the battery holder made by Sony.

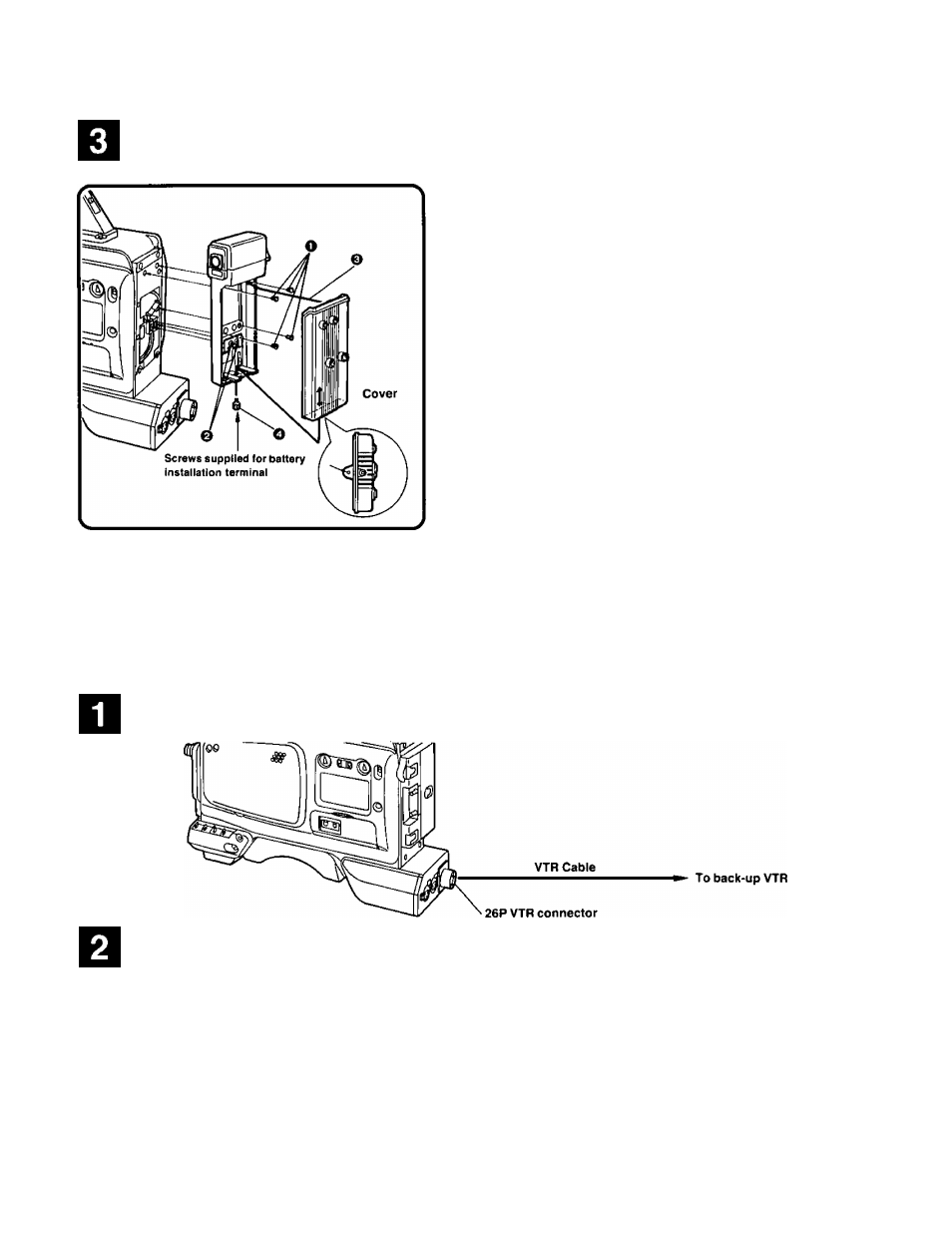

As shown in the figure on the left, first install the battery case whose
cover has been removed, and then install the removed cover.

Tighten the installation screws.

0 Tighten the power supply contact screws.
0 Insert the top of the removed cover in the direction indicated by

the arrow.

O Align the holes at the bottom (metal part) of the cover with the

holes at the bottom of the case, and attach to the battery instal
lation terminal using the accessory screws.

When supplying power from the 26P
VTR connector

Connect the unit ot the back-up VTR with the VTR cable.

Set the power selector switch to VTR. (See page 11.)

NOTES

•When the power selector switch is set to VTR, power is supplied from the VTR cable. The power will not be selected

automatically by connecting the power from the AC adaptor to the EXT DC IN connector.

•When supplying power from the back-up VTR through the VTR cable, bear in mind that the supply voltage may drop.

(This unit has an undercutting voltage of 10.5 V.)
