CTL TCUB COUNTER-M SVHS;
DF TCG
REMAIN
n n o o r i o o o
U U ' U U ' U U U U ~
I h I min I s I frm i
E BATT F
RF SERVO HUMID
SLACK END
OD

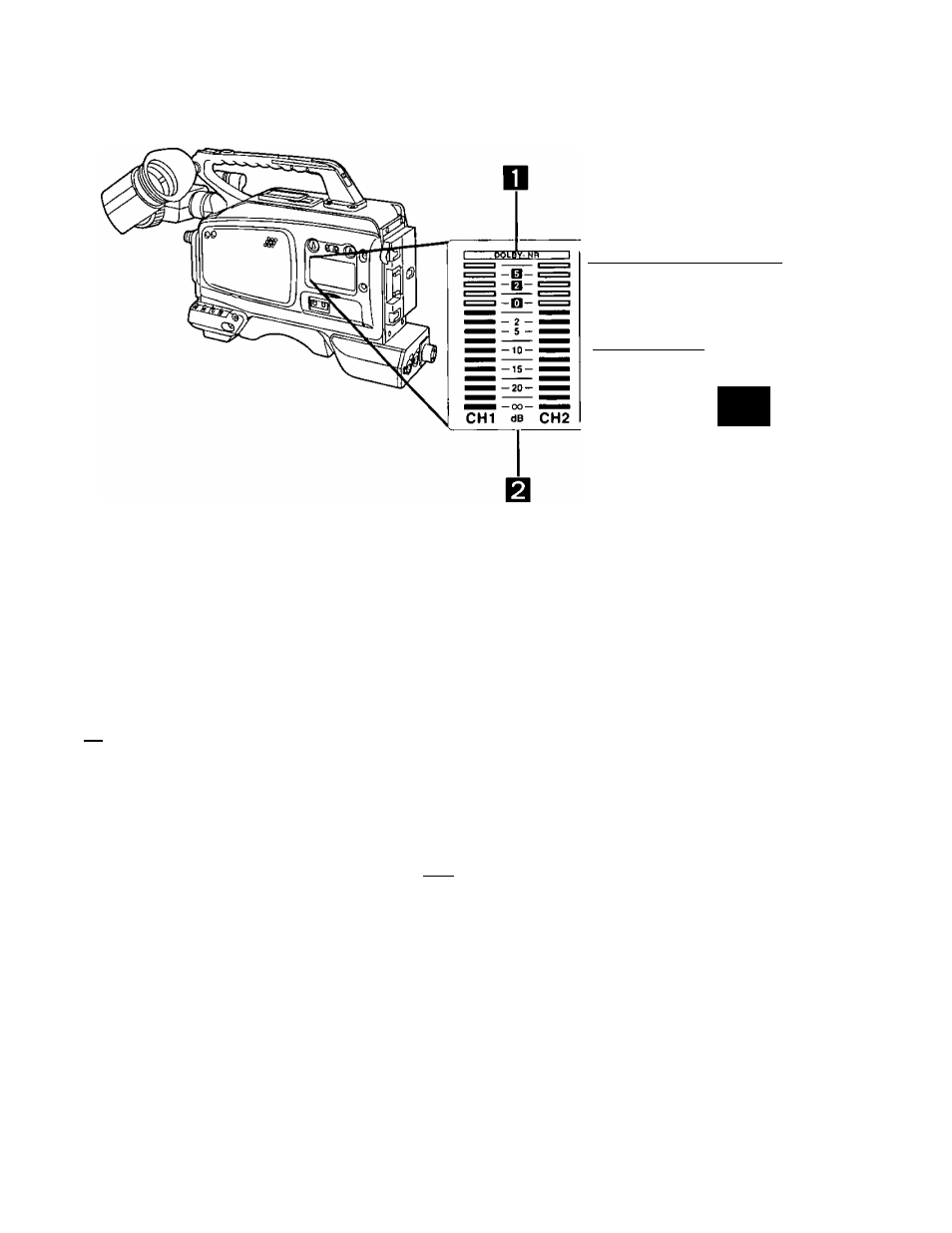

Display
□ DOLBY-NR display
Q Audio level meter
Ft Mode displays
Lights when the DOLBY NR menu item has been set to ON.
Indicates the CH1 and CH2 audio levels.
TC: Lights when the counter is in the TO (time code) mode.
UB: Lights when the counter is in the UB (user bit) mode.
DF: Lights when the time code is in the DF (drop frame) mode.
COUNTER: Lights when the counter is in the reel count mode.
TCG: Lights when the counter is in the TCG (time code generator) mode.
—M: Lights in the counter memory mode (0000 stop mode).
CTL: The counter memory mode is set using the menu item.
SVUS: Lights in the S-VHS mode.
B551: This denotes that a cassette tape has been loaded.
