Controls and their Functions (Continued)
SKIFT
1
SET + STAtTNA
0
6
0
0
1
1
dD
TCUBCCUKTERREC FREE
cu) dp

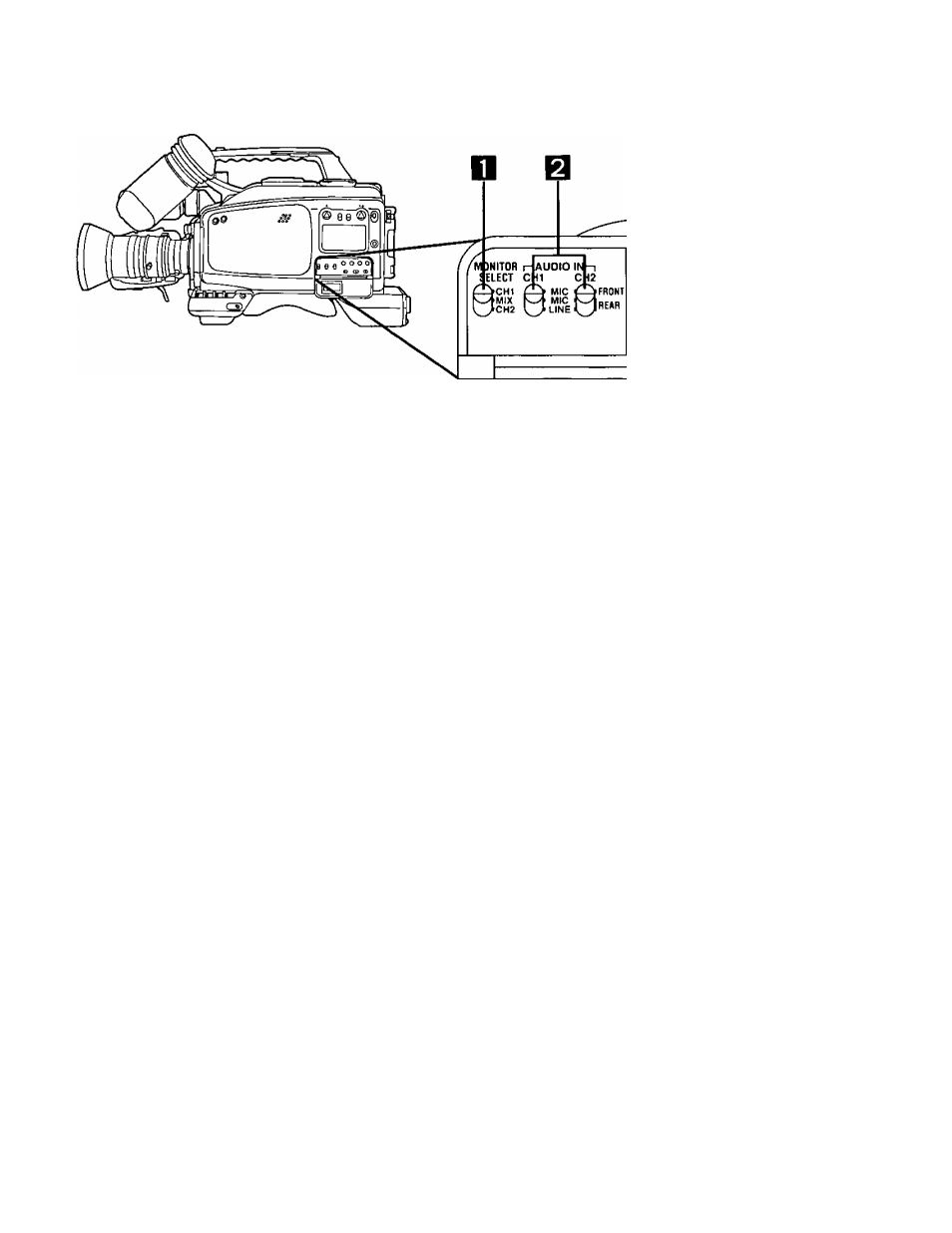

MONiTOR Switch
This is for selecting the speaker or earphone sound,
cm: The CH1 sound can be monitored.
MIX: The CH1 and CH2 mixed sound can be monitored.
CH2: The CH2 sound can be monitored.
AUDIO IN Selector Switches
FRONT MIC:
SHIFT Button
SET-, SET + Buttons
These switches select the CH1 and CH2 audio inputs.
For recording the audio signals from the microphone built into the
camera.
REAR MIC: For connecting an external microphone to the audio input connec
tor (XLR 3P) on the rear panel and recording its audio signals.
REAR LINE: For connecting line signals to the audio input connector (XLR 3P)
on the rear panel and recording them.
This is used for time code generator and menu item settings.
These are used for changing the time code generator, menu, elec
tronic shutter speed or synchro scan shutter speed settings and for
adjusting the VTR tracking,
16
