Attaching the lens

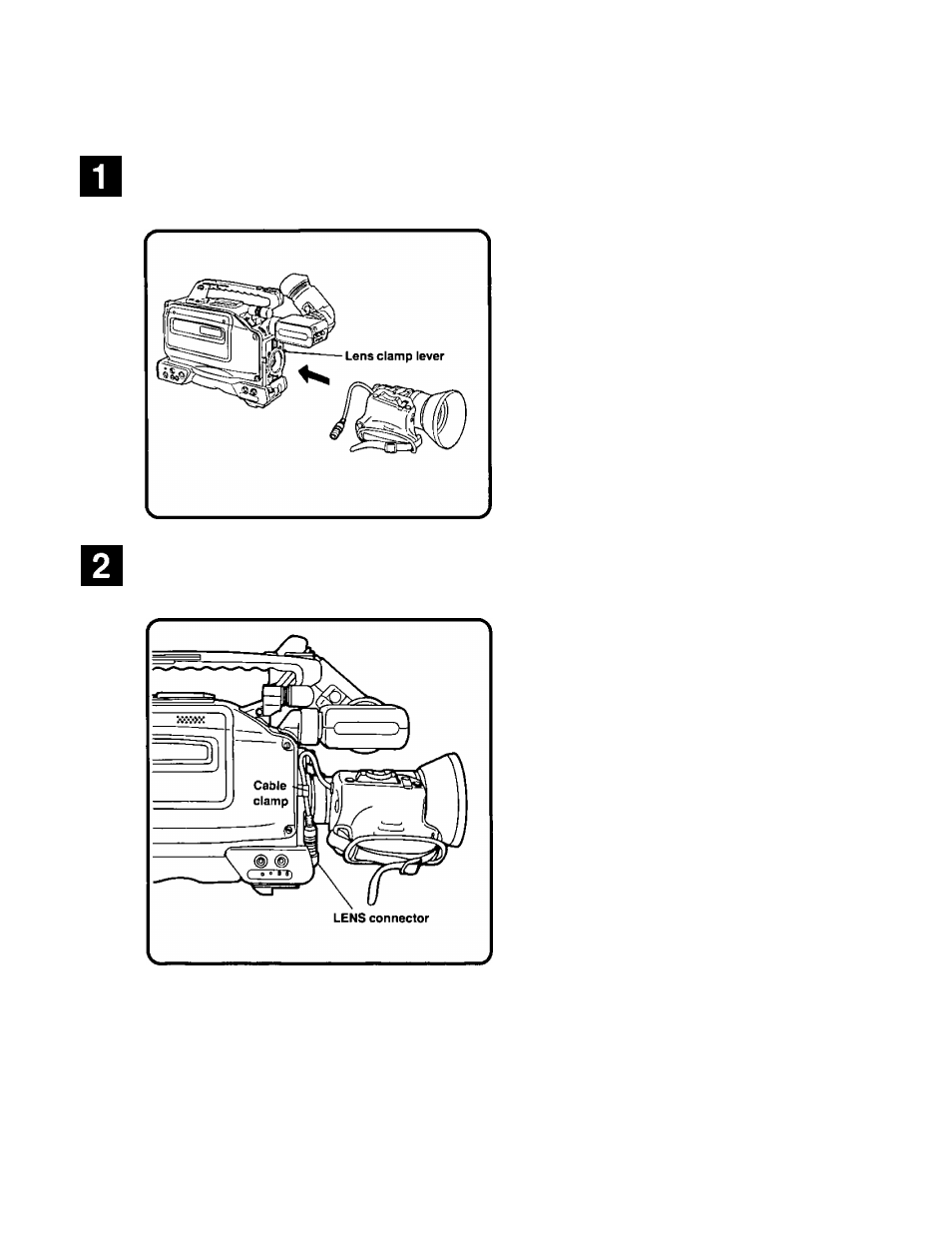

Align the lens with the lens mount on the camera recorder, insert the

lens Into the mount, and secure it in place using the lens clamp lever.

Connect the cable to the LENS connector, and secure it In place using

the cable clamp.

NOTE

For details on the handling of the lens, refer to the Operating Instructions accompanying the lens.

•When the lens has been detached from the camera recorder, attach the lens cap to protect the unit.
